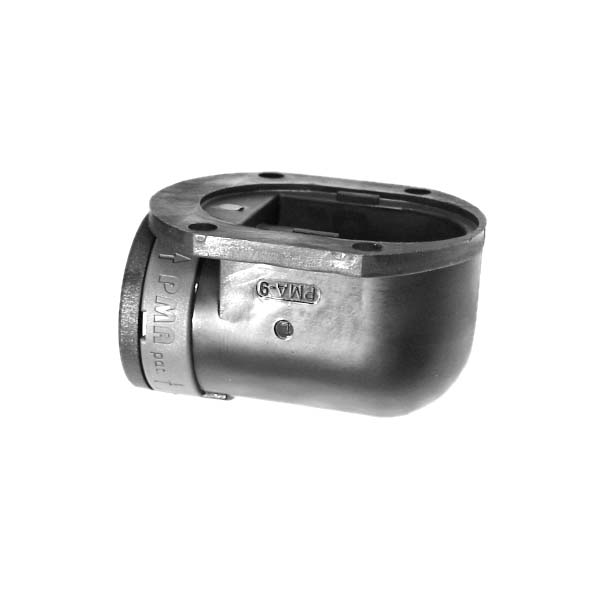

Flange 90° IP66
- For cable protection systems in a wide range of applications.
- Specially formulated polyamide 6.
- Flange seal FGO4 made from EPDM.
- Flange seal FGO4/01 made from NBR.
- Very high impact resistance.
- Vibration-proof connection to PMAFLEX conduits.
- High conduit pull-out strength.
- Easy installation: simply push the conduit in.
- Can be easily re-opened with a screwdriver.
- Selectable flange seal included.
- Very good chemical properties.
- Free of halogen and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- NW 17 (1)
- NW 23 (1)
- NW 29 (1)
- NW 36 (1)
- NW 48 (1)
| E-number | Article no. | Conduit size | L mm | A mm | B mm | C mm | D mm | H mm | H1 mm | E mm | E1 mm | E2 mm | M | Pcs/pack |

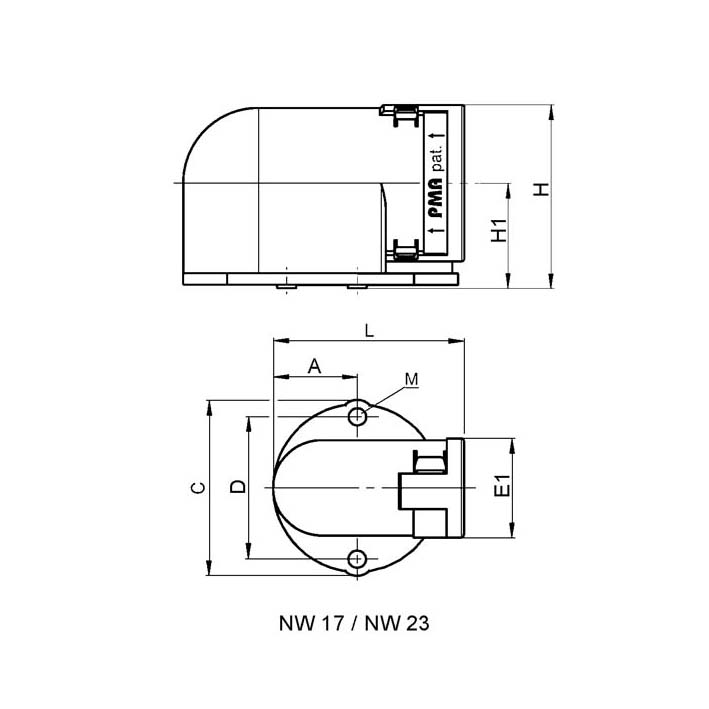

| 1410680 | BVOD-P167GT | NW 17 | 66 | 22,0 | - | 46,0 | 36,0 | 35,5 | 20.5 | - | 29.5 | - | 2 x M5 | 50 |
| 1410681 | BVOD-P213GT | NW 23 | 70 | 31,0 | - | 65,5 | 53,0 | 43,0 | 24.5 | - | 37 | - | 2 x M6 | 30 |

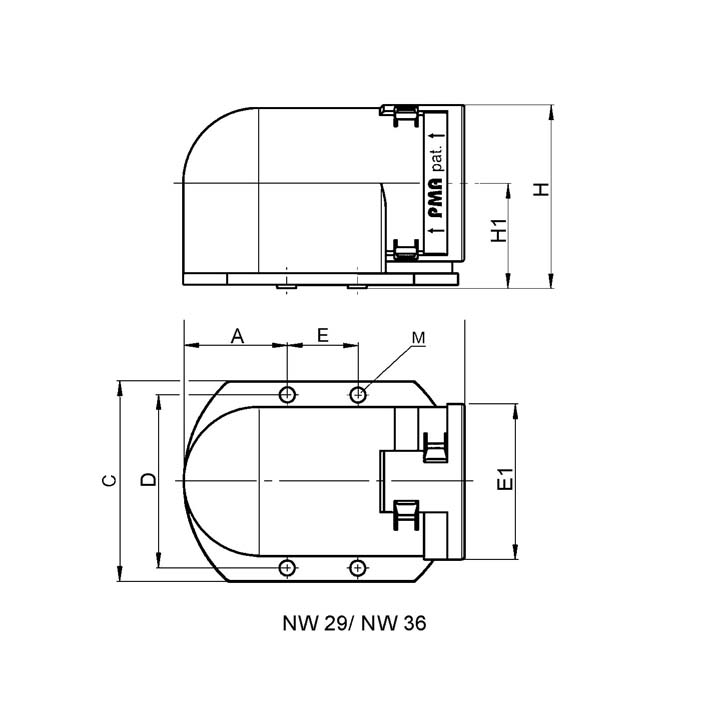

| 1410682 | BVOD-P299GT | NW 29 | 78 | 21,0 | - | 67,0 | 54,0 | 49,5 | 27.5 | 36 | 44 | - | 4 x M6 | 20 |
| 1410683 | BVOD-P366GT | NW 36 | 102 | 29,0 | - | 85,0 | 73,5 | 65,5 | 38.5 | 30 | 53.5 | - | 4 x M6 | 10 |

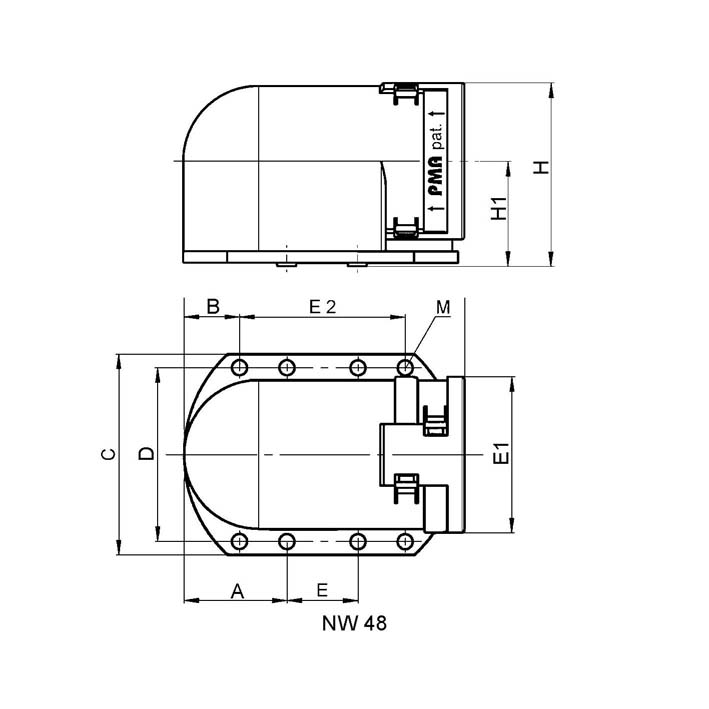

| 1410684 | BVOD-P488GT | NW 48 | 119 | 43,5 | 23,5 | 86,0 | 73,5 | 77,5 | 44.5 | 30 | 66 | 70,0 | 4 x M6 | 10 |
Material:
Polyamide PA6
Sealing ring:
EPDM
Ingress protection:
IP66 stat. / IP54 dyn.
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Flame class:
UL94 V0 (V2)
Glow wire test:
960°C acc. to EN 60695-2-10
Halogen-Free:
Yes
