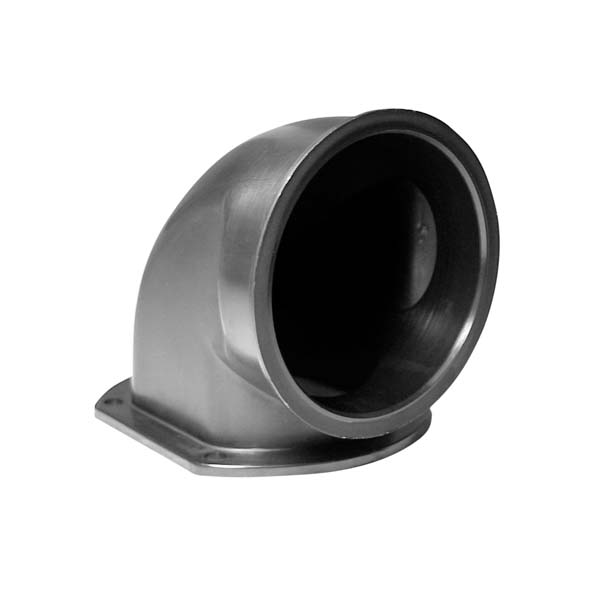

Flange 90º IP65
- For cable protection systems in a wide range of applications.
- Specially formulated polyamide 6.

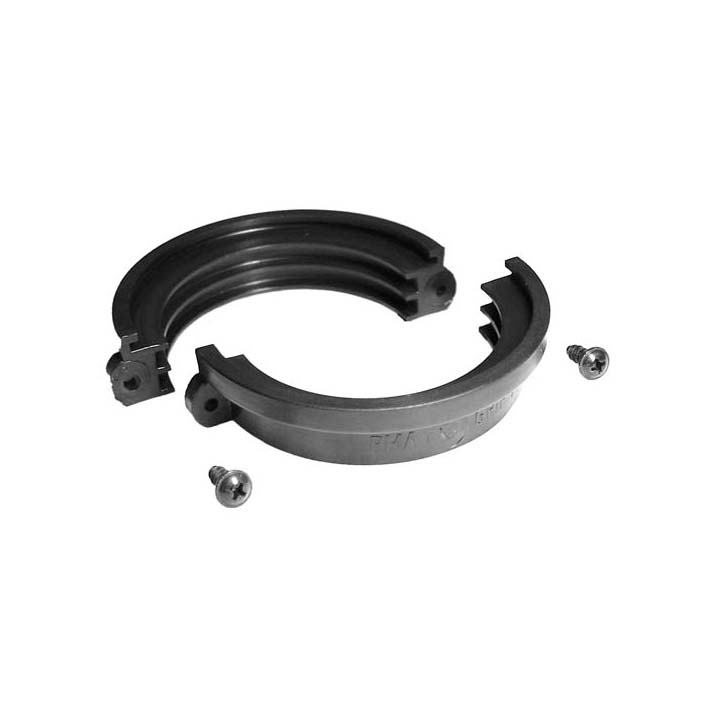

- Flange seal FGO4 made from EPDM.
- Flange seal FGO4/01 made from NBR.
- Very high impact resistance.
- Vibration-proof connection to PMAFLEX conduits.
- High conduit pull-out strength.
- Selectable flange seal included.
- Very good chemical properties.
- Free of halogen and cadmium.
- Fits both conduit profiles - fine (T) and coarse (G).
- NW 56 (1)
- NW 70 (1)
- NW 95 (1)

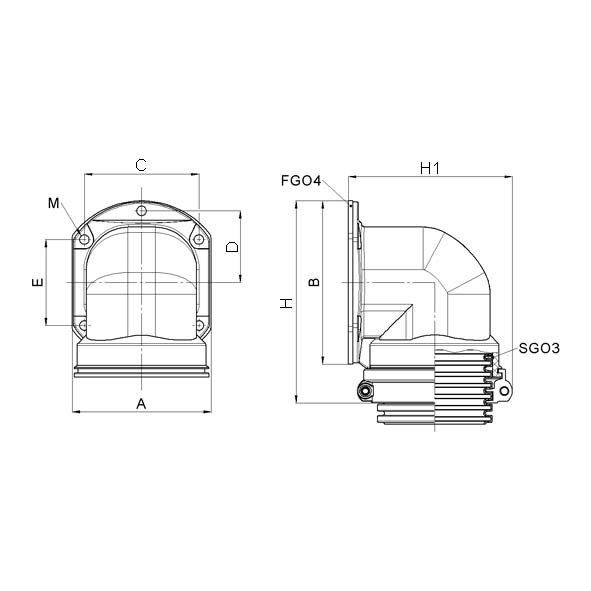

| E-number | Article no. | Conduit size | A mm | B mm | C mm | D mm | H mm | H1 mm | E mm | M | Pcs/pack |
| - | BGO-56 | NW 56 | 82,0 | 97,0 | 66,0 | - | 122,0 | 101 | 60 | 4 x M6 | 10 |
| 1410394 | BGO-70 | NW 70 | 97,0 | 114,0 | 80,0 | 50,0 | 142,0 | 115 | 60 | 5 x M6 | 10 |
| 1410396 | BGO-95 | NW 95 | 126,0 | 146,0 | 108,0 | 65,5 | 175,0 | 149 | 74 | 5 x M6 | 10 |
Material:
Polyamide PA6
Sealing ring:
EPDM
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP65
Temperature range:
-40°C....+105°C
Colour:
Black RAL 9005
Test standard:
EN 60529 / DIN 40050 / IEC 60529
Halogen-Free:
Yes
