3-pole Panel mounting Plugs & Sockets black
| E-number | Description | Wall thickness | Connection capacity | Pcs/pack |

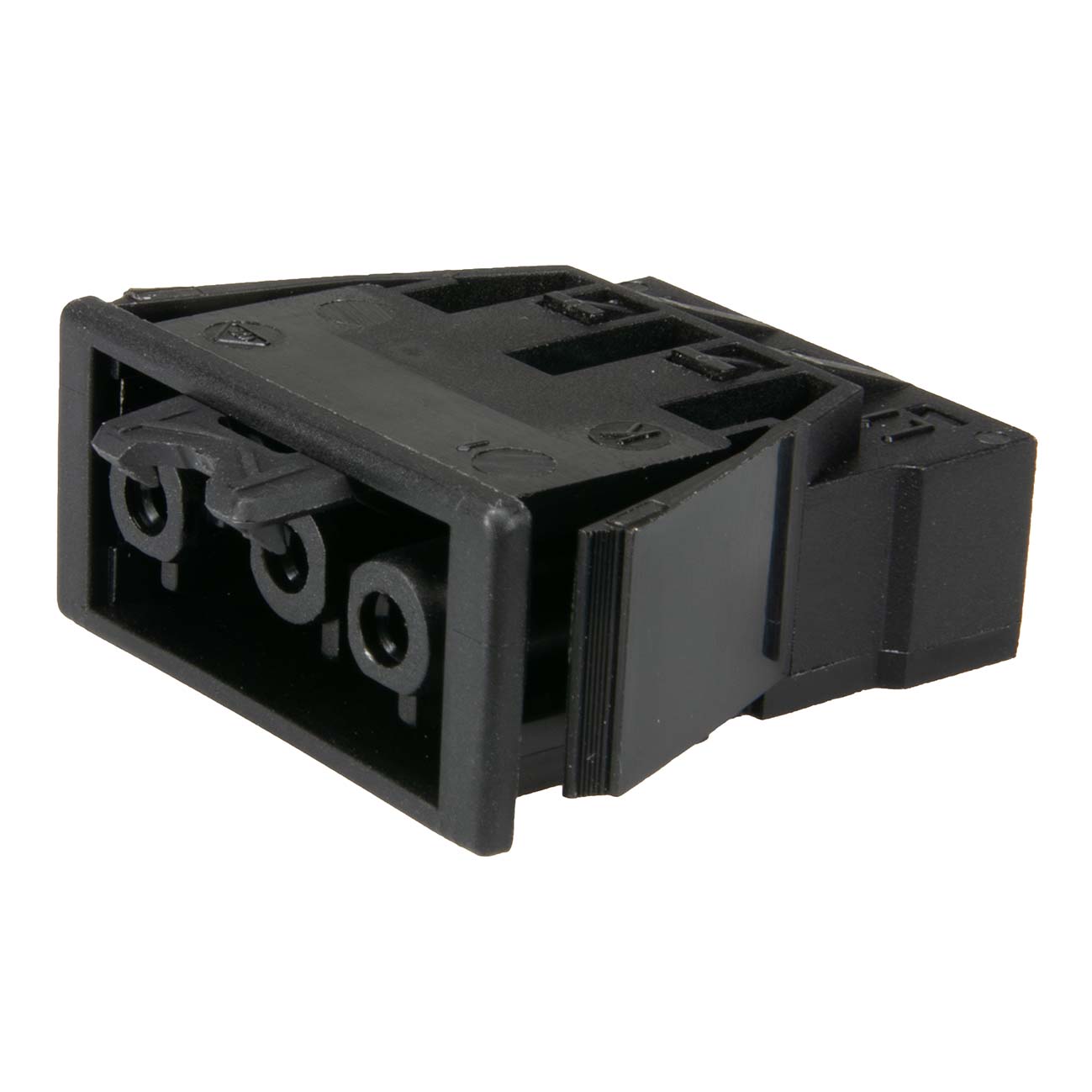

| 1278040 | 3-pole Panel mounting socket with screwless connection | 0,5 - 1,2mm | 0,5mm² - 2,5mm² | 1 |

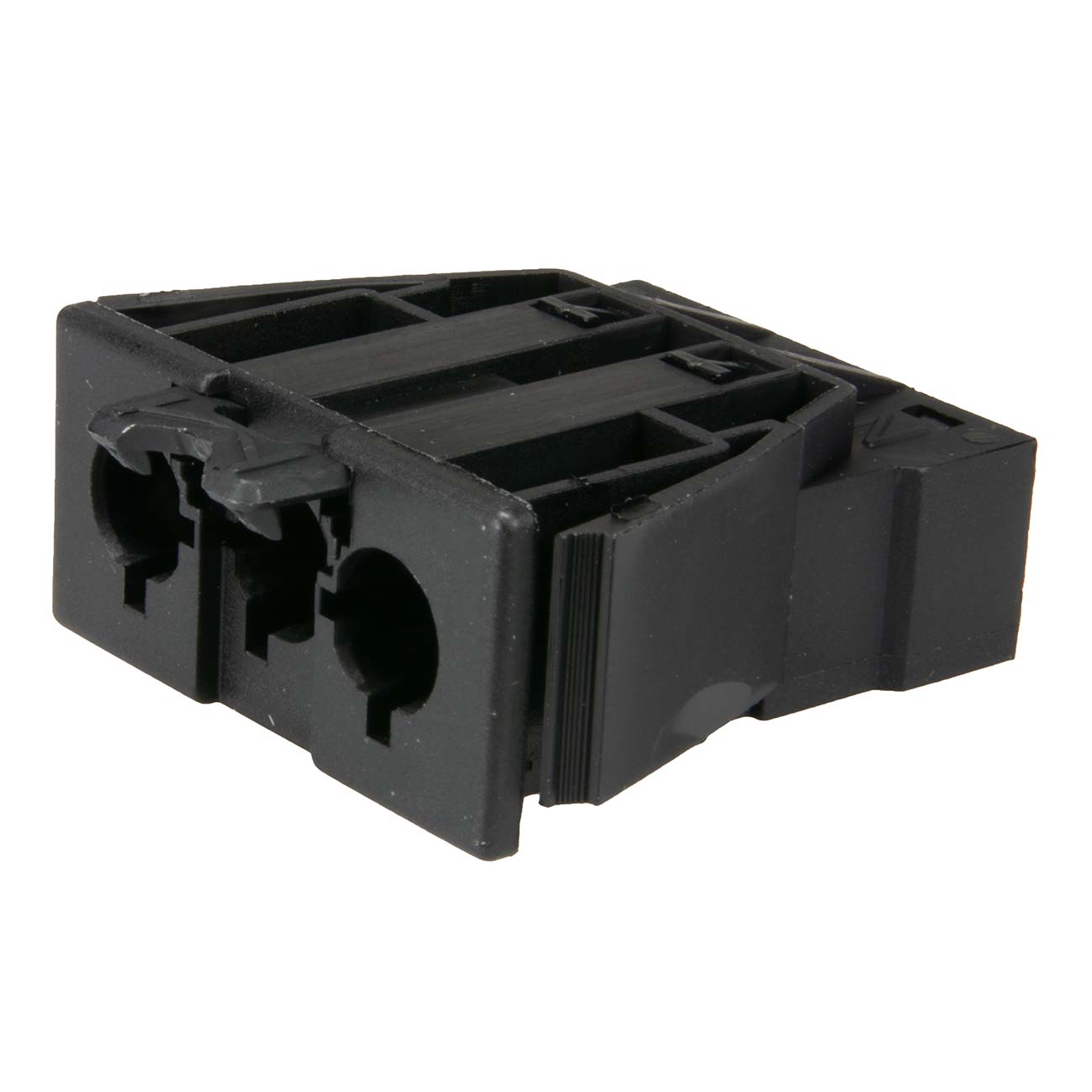

| 1278041 | 3-pole Panel mounting plug with screwless connection | 0,5 - 1,2mm | 0,5mm² - 2,5mm² | 1 |
| 1278044 | 3-pole Panel mounting socket with screwless connection | 1,3 - 2,5mm | 0,5mm² - 2,5mm² | 1 |
| 1278045 | 3-pole Panel mounting plug with screwless connection | 1,3 - 2,5mm | 0,5mm² - 2,5mm² | 1 |
Rated voltage:
250 V
Rated current:
20A
Coding contact configuration:
1 - 3-pole Mains
Material Isolation:
PA
Material Terminals:
Brass
Ingress protection:
IP20, IP40 when plugged
Max. ambient temperature:
+70°C
Colour:
Black
Halogen-Free:
Yes
