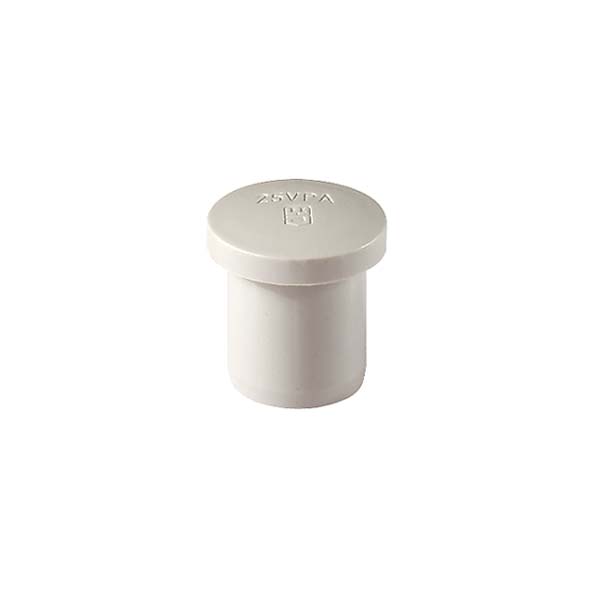

Blanking plug Polyamide Metric
For use with ”PERFECT” metric plastic- and brass cable glands.
- Used to ensure the IP-rating until the cable is installed.
NOTE! M40 - M63 is only availible in black (RAL9005). M12 - M32 is only availible in lightgrey (RAL7035).
Assembled in ”PERFECT” metric plastic- and brass cable glands. E1473201-08, E1473211-18, E1473221-28, E1473231-38, E1475054-61, E1475901-08, E1475911-18, E1475922-28, E1475932-38, E1476001-08, E1476011-18, E1476021-28, E1476031-38, E1476111-18, E1476101-03, 05-09, E1476121-28, E1476160-68, E1476261-65 & 50.612PA/FL-50.663PA/FL
- M12 (1)
- M16 (1)
- M20 (1)
- M25 (1)
- M32 (1)
- M40 (1)
- M50 (1)
- M63 (1)

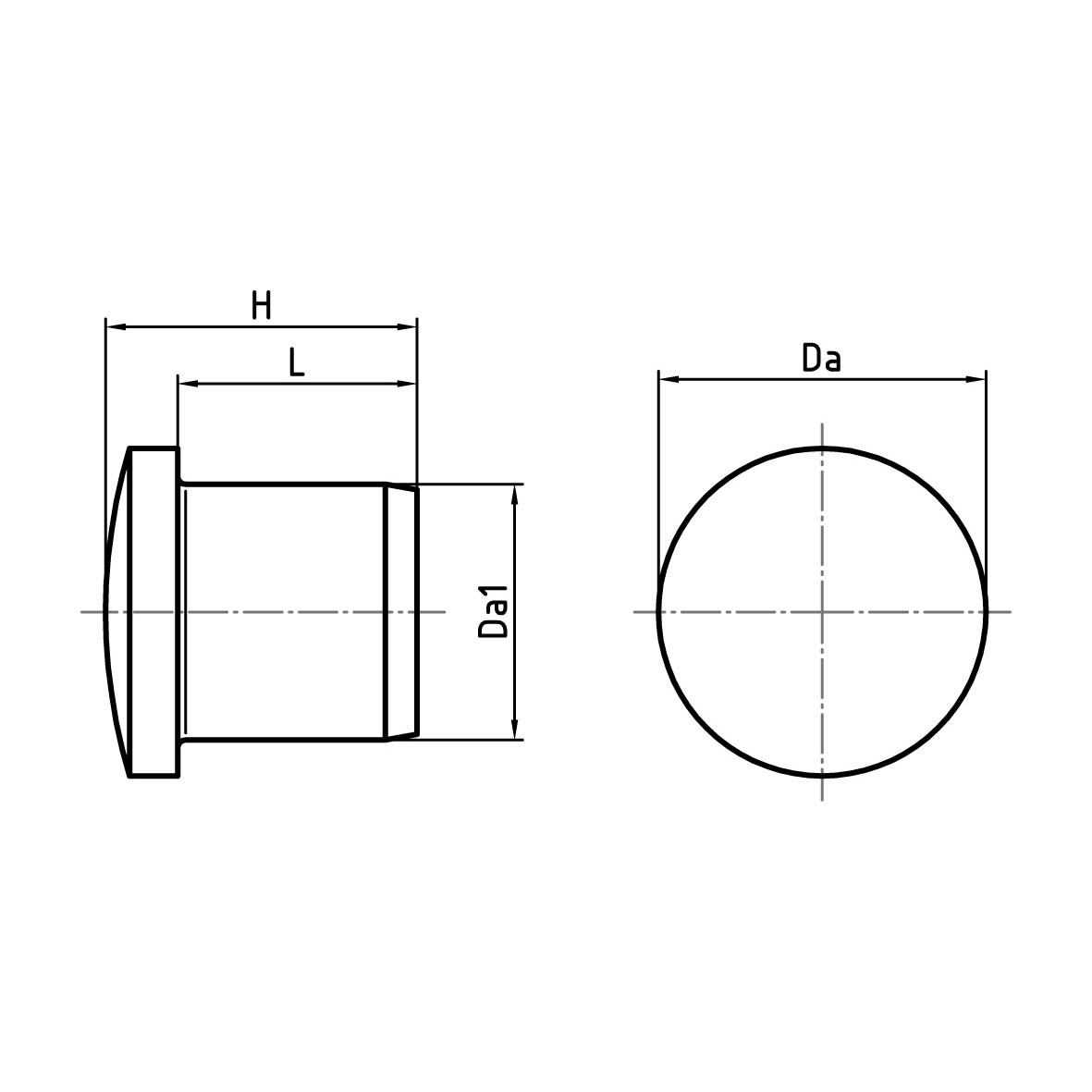

| E-number | Size | L mm | Da mm | Da 1 mm | H mm | Pcs/pack |
| 1476590 | M12 | 9 | 10 | 5.5 | 12,5 | 50 |
| 1476591 | M16 | 12 | 13.5 | 9.5 | 16 | 50 |
| 1476592 | M20 | 12 | 16.5 | 12 | 16,5 | 50 |
| 1476593 | M25 | 15 | 20.5 | 16 | 19,5 | 50 |
| 1476594 | M32 | 17 | 24.5 | 20 | 21,5 | 25 |
| 1476595 | M40 | 20 | 32 | 27 | 24 | 10 |
| 1476596 | M50 | 25 | 39 | 35 | 29 | 5 |
| 1476597 | M63 | 25 | 52 | 42 | 29 | 5 |
Material:
Polyamide PA6 GF30
Temperature range:
-30°C....+100°C
Colour:
Lightgrey RAL 7035
Halogen-Free:
Yes
