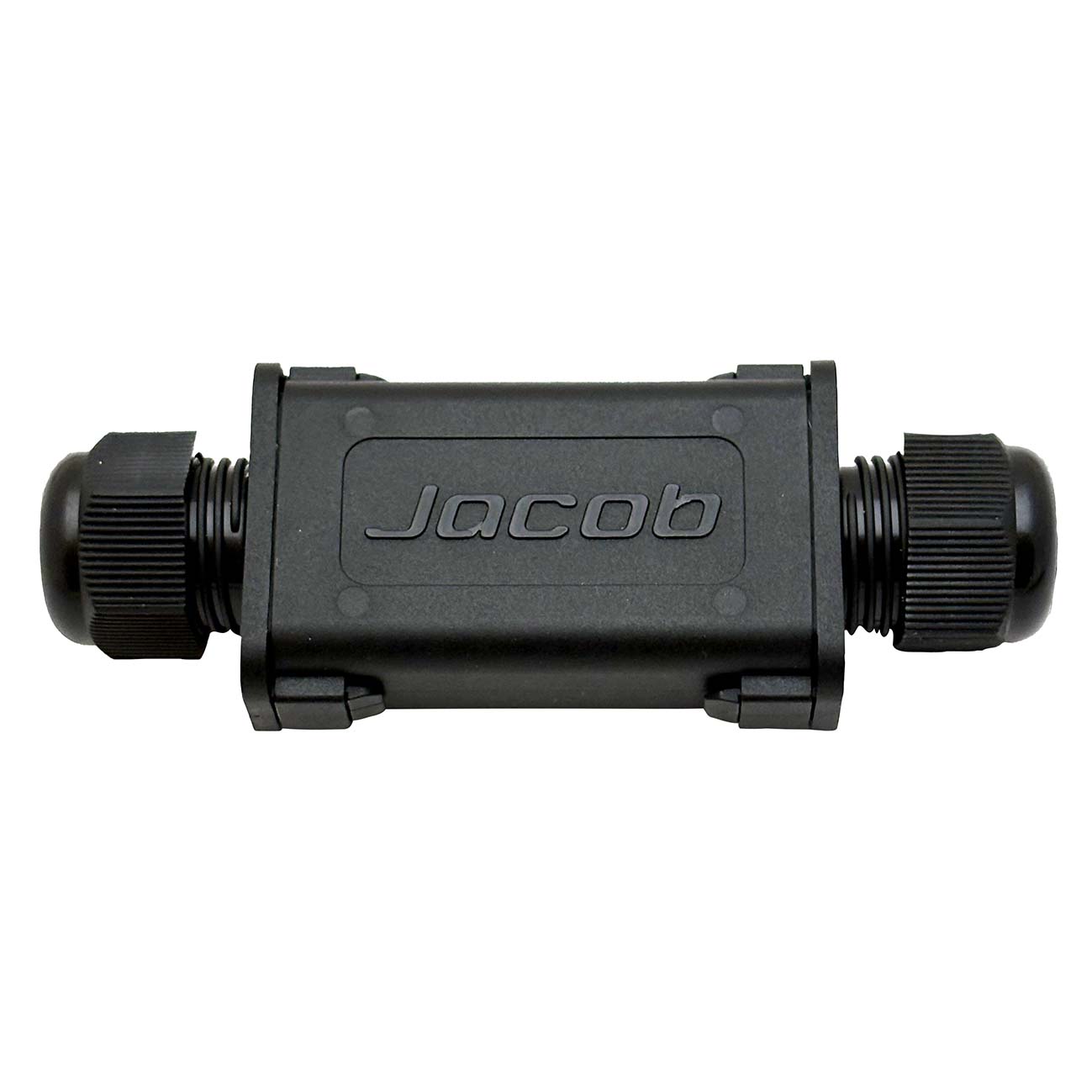

Cable Connector IP68

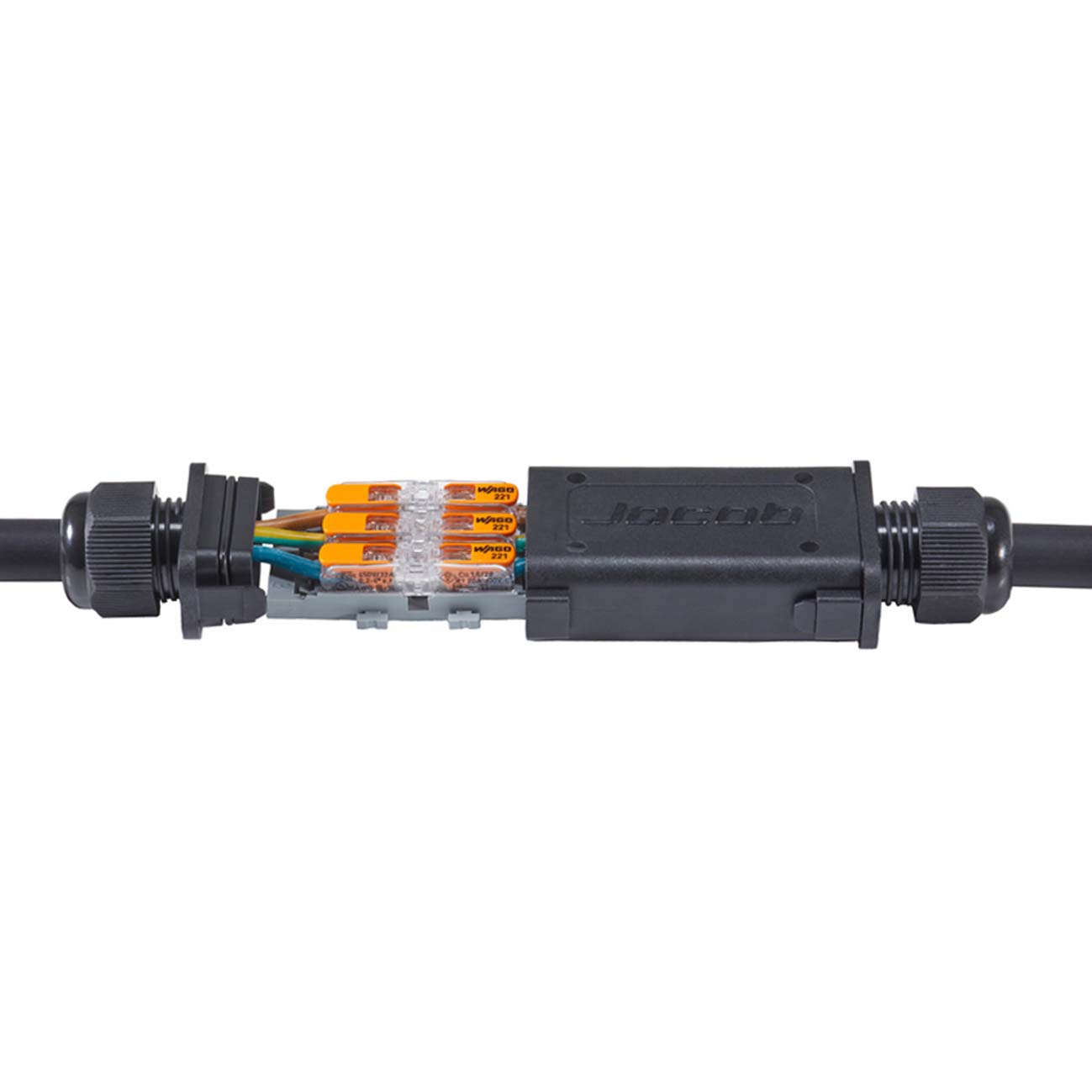

- for quick and safely connecting two cables
- robust design for use in harsh environment conditions
- flexible to use and reusable multiple times
- solid and fine stranded conductor 0,2 - 4 mm², stranded conductor 0,2 - 2,5 mm²
- Rated voltage: 450 V, Rated current: 32 A
- 5 - 12 (2)

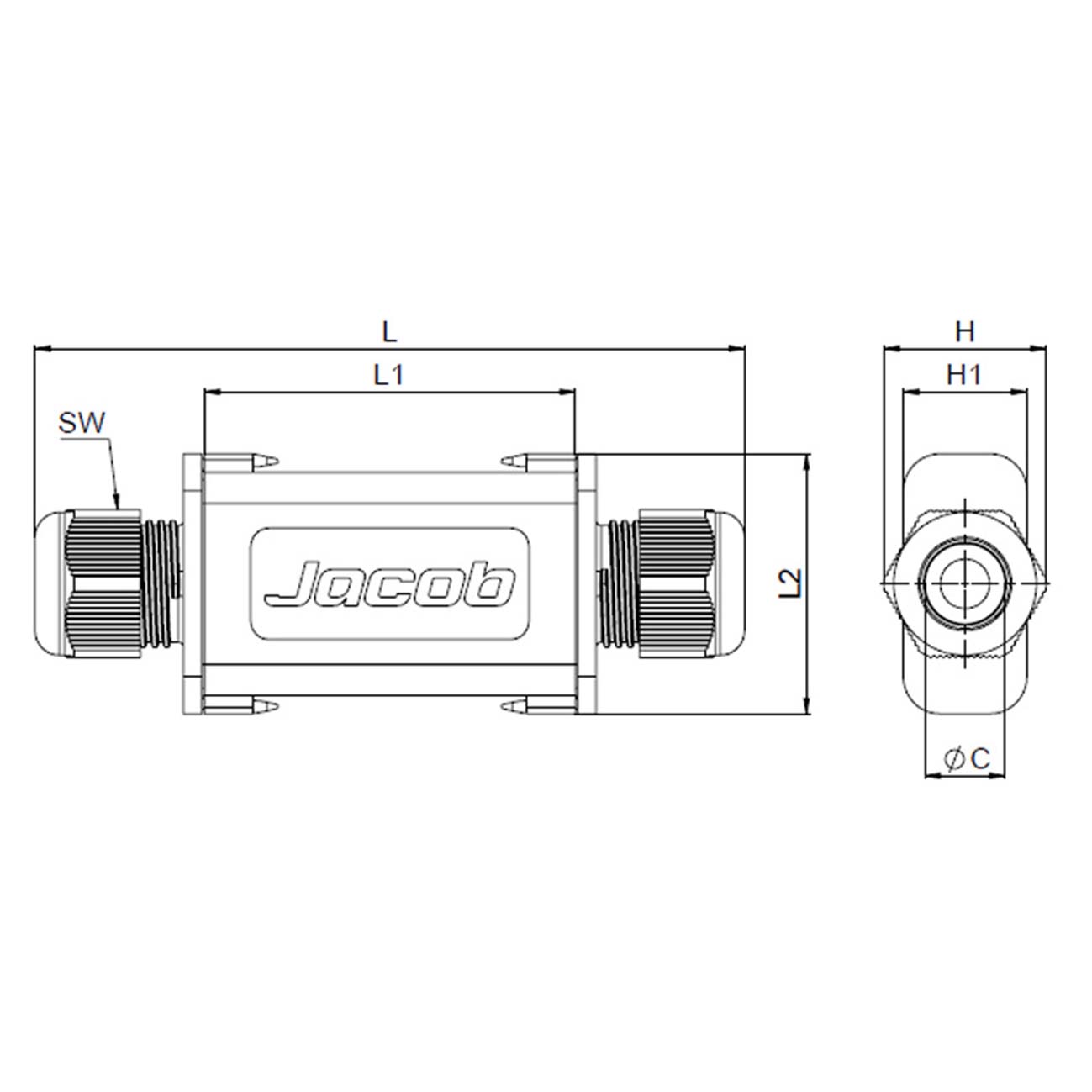

| E-number | Article no. | Description | For cable Ø mm | L mm | L1 mm | H mm | H1 mm | L2 mm | SW1 mm | Pcs/pack |
| 1459907 | T320-9300-02 | Cable Connector 3-pole | 5 - 12 | 115 | 60 | 26,5 | 20 | 42 | 24 | 1 |
| - | T320-9301-02 | Cable Connector 3-pole with tiewrap clamps | 5 - 12 | 157 | 102 | 26,5 | 20 | 42 | 24 | 1 |
Material:
Connecting Box: Polyamide PA6 GF30 V-0
Cover outer parts: Polyamide PA6 V-0
Cover inner parts: Polyamide PA6 V-2 and elastomers
Inline splicing connector: Polycarbonate PC V-2
Mounting carrier: Polyamide PA
Cover outer parts: Polyamide PA6 V-0
Cover inner parts: Polyamide PA6 V-2 and elastomers
Inline splicing connector: Polycarbonate PC V-2
Mounting carrier: Polyamide PA
Ingress protection:
IP68
Temperature range:
-25°C....+85°C
Test standard:
IEC 60670-1
IEC 60670-22
EN 60998-2-2
IEC 60670-22
EN 60998-2-2
