Jointing sleeve with cable gland IP68

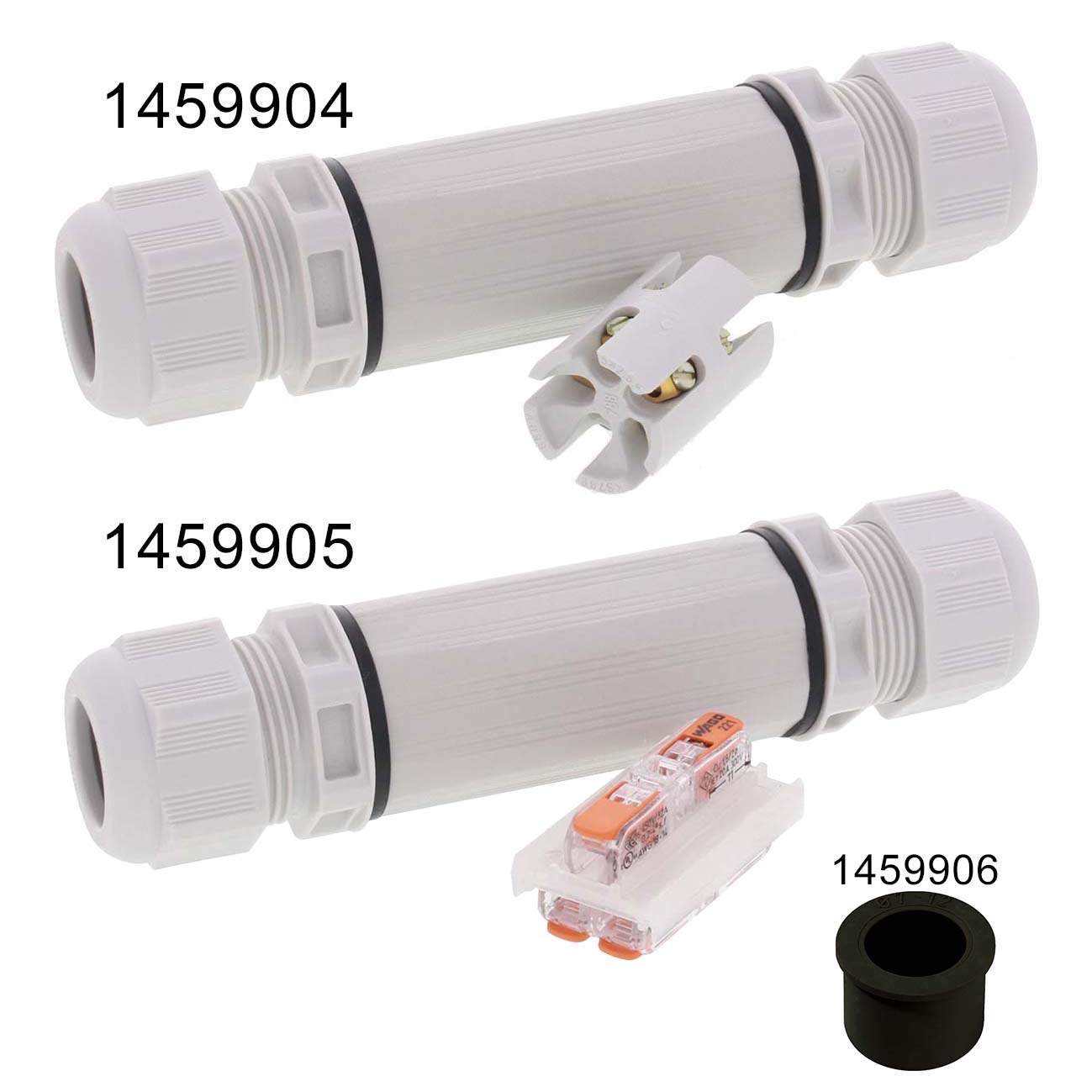

  • Two variants, screw-connection (1459904 & 1459903) and fast connection (1459905)
  • Stationary laying of cables in cable ducts or suspended ceilings, stationary upper-plaster laying

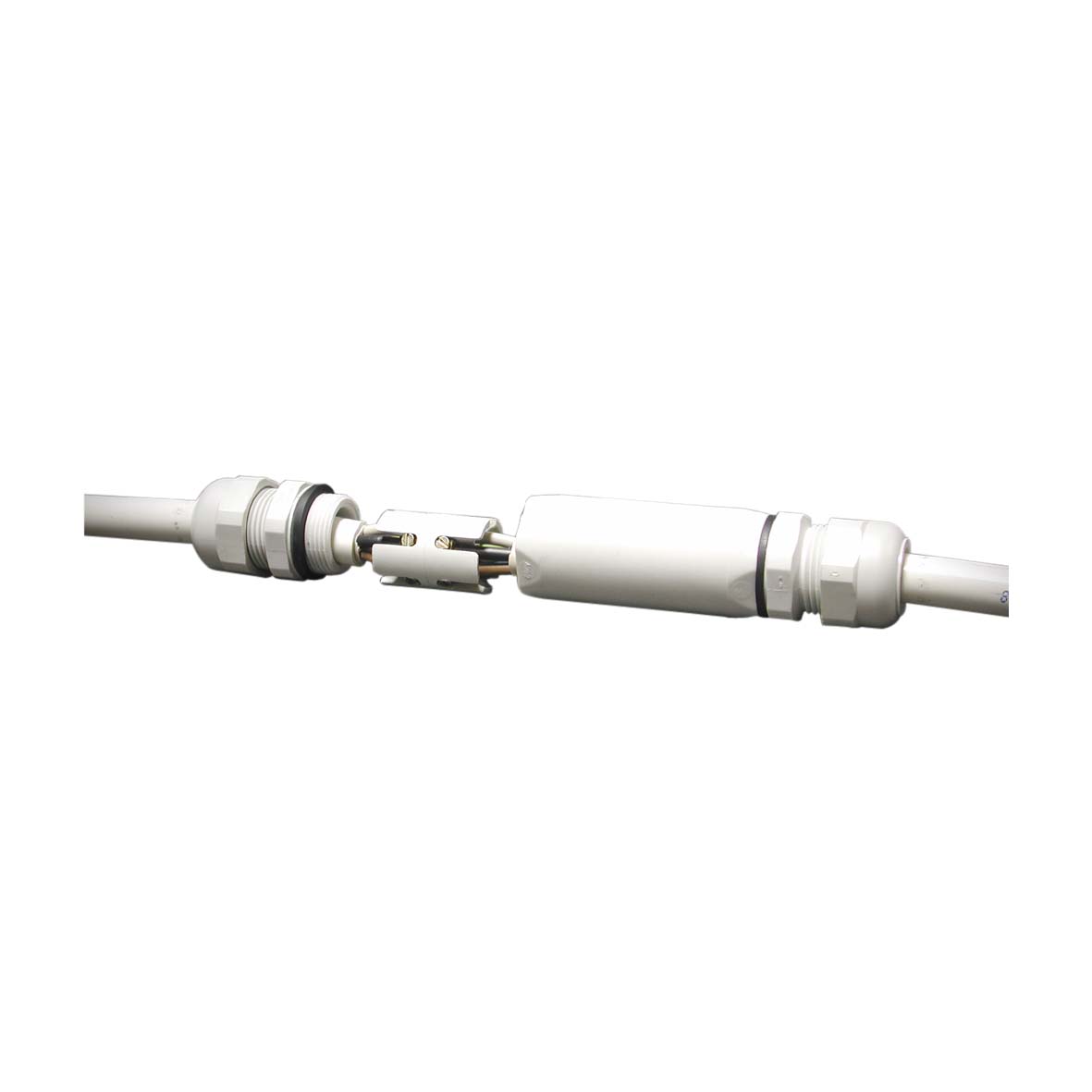

  • Quick and easy installation
  • Suitable for narrow spaces
  • 1459906 reduction sealing insert for 1459904
  • 9 - 17 (1)
  • 10 - 18 (1)
  • 7 - 17 (1)
  • 7 - 12 (1)

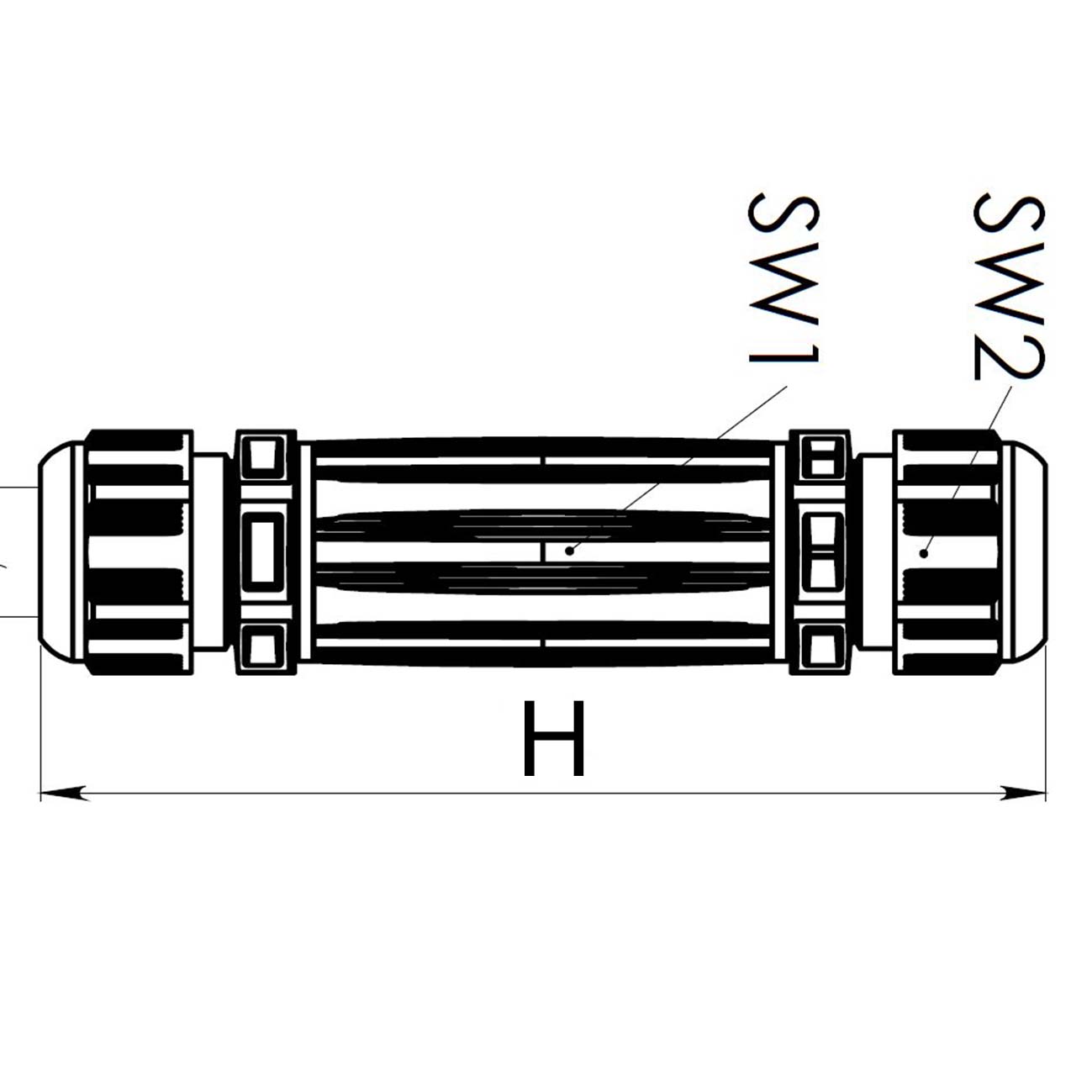

E-numberDescriptionFor cable Ø mmH mmSW1 mmSW2 mmPcs/pack

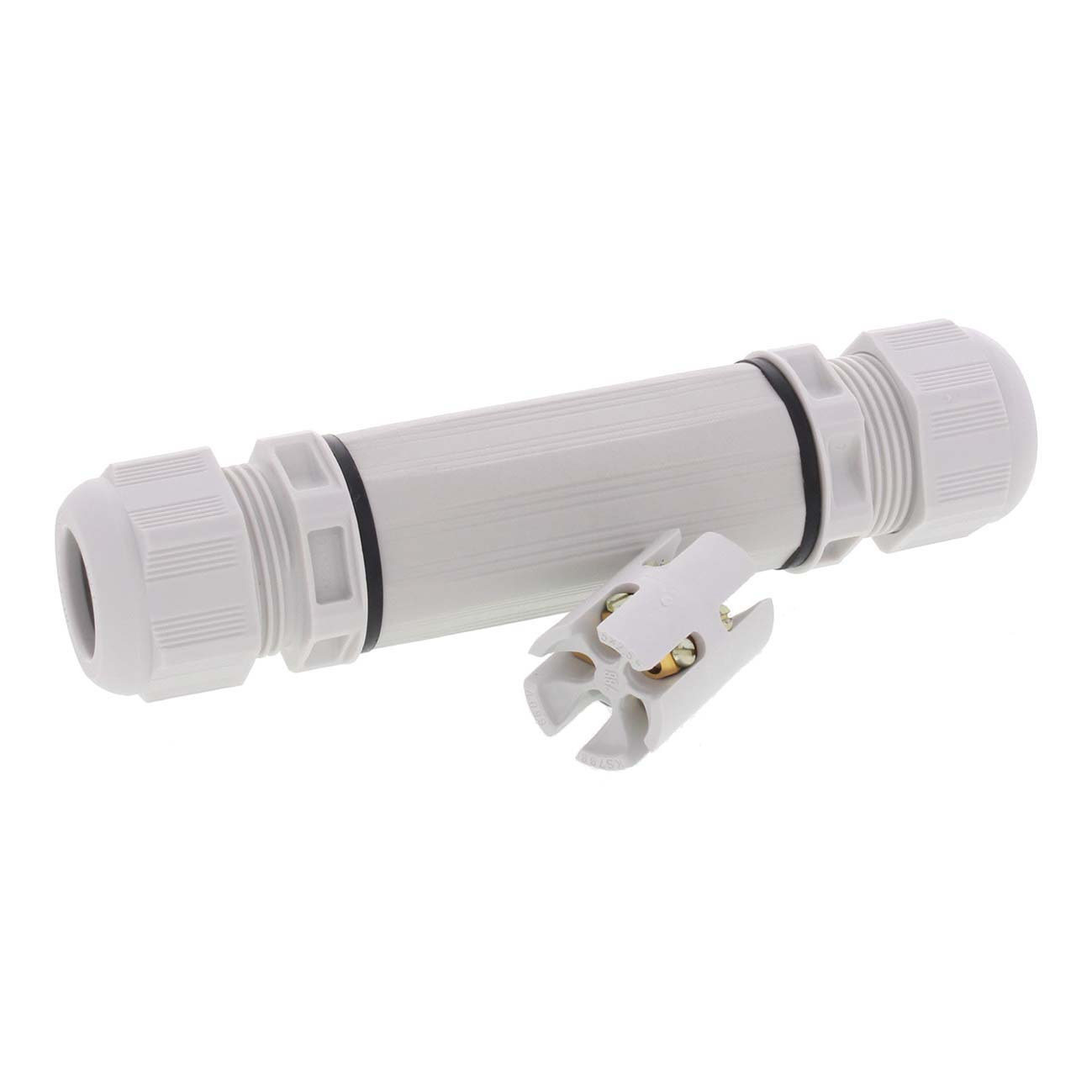

1459904Terminal block 5x(1,5-2,5mm²)9 - 17134272915
1459903Terminal block 5x(1,5-6mm²)10 - 18165323310
1459905Splicing connector 3x(1,5-4mm²)7 - 17134272915
1459906Reducing sealing insert for smaller cable Ø7 - 12-0025
Material Enclosure:
Polypropylene / (1459903) Polystyrene
Ingress protection:
IP68 - 5 bar (30 min)
Colour:
Lightgrey RAL 7035
Flame protection:
Glow wire test 750ºC acc. to DIN EN 60695-2-1/1 (terminalblock 960ºC)
Halogen-Free:
Yes
