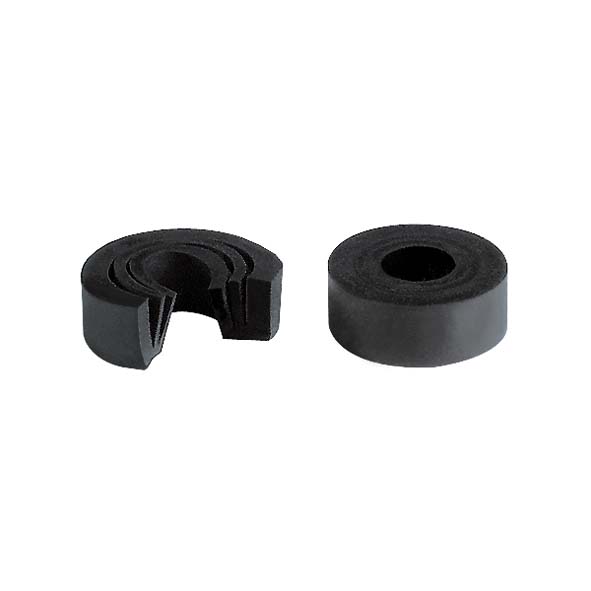

Multiple Sealing ring for Metric and PG
Assembled in ”IP54 and IP55” plastic- and brass cable glands.
- M12, M16, PG9/15,2 (1)
- M16, M20, PG11/18,6 (1)
- M20, PG13,5/20,4 (1)
- M20, M25, PG16/22,5 (1)
- M25, PG21/28,3 (1)
- M32, M40, PG29/37,0 (1)
- M40, M50, PG36/47,0 (1)
- M50, PG42/54,0 (1)
- M63, PG48/59,3 (1)

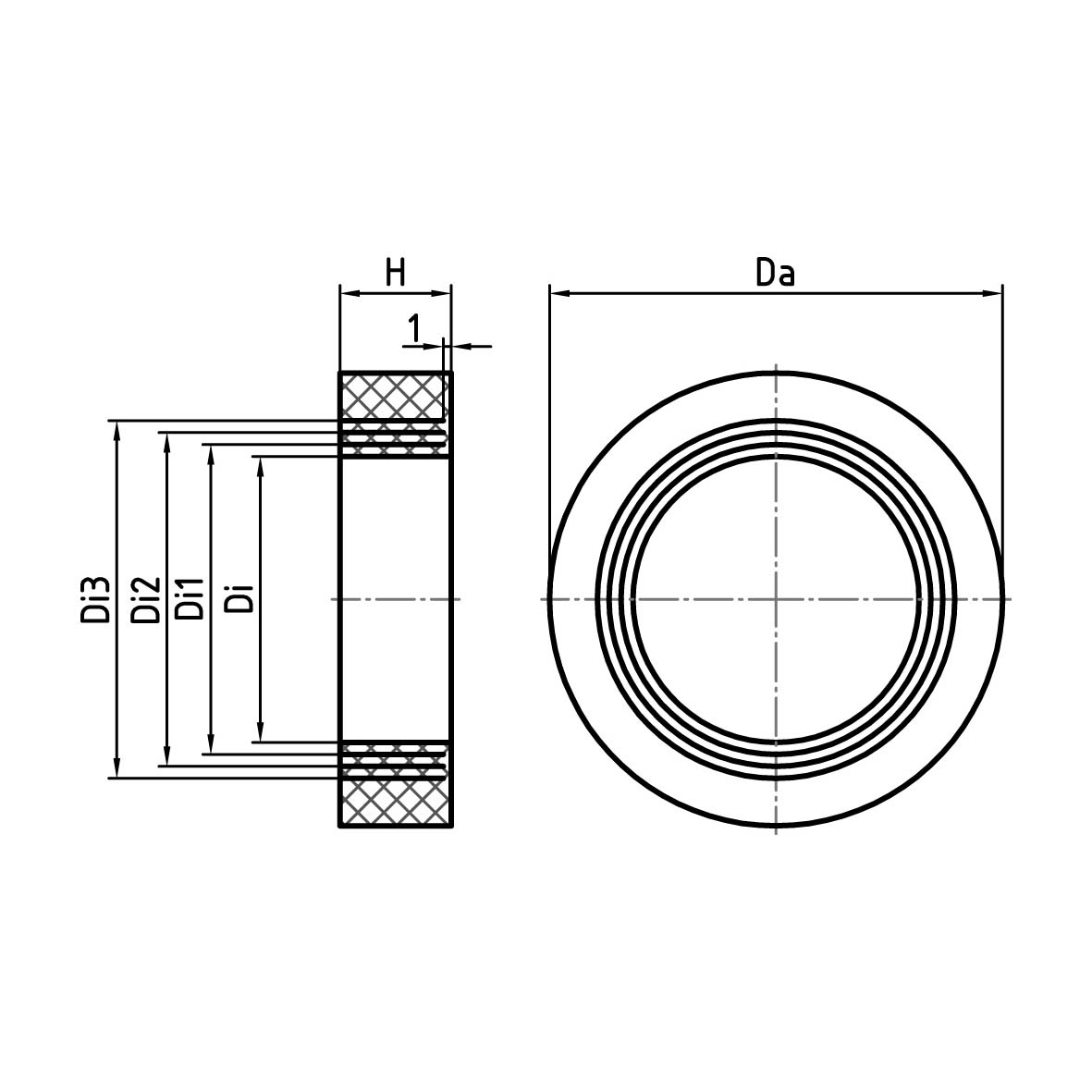

| Article no. | Size | Da mm | Di mm | Di1 mm | Di2 mm | Di3 mm | H mm | Pcs/pack |
| 309 UG | M12, M16, PG9/15,2 | 13.3 | 5 | 7.5 | 10 | - | 5,5 | 100 |
| 311 UG | M16, M20, PG11/18,6 | 16.5 | 7.5 | 10 | 12.5 | - | 6 | 100 |
| 313 UG | M20, PG13,5/20,4 | 18.3 | 7.5 | 10 | 12.5 | - | 6 | 100 |
| 316 UG | M20, M25, PG16/22,5 | 20.4 | 7.5 | 10 | 12.5 | 15 | 7 | 100 |
| 321 UG | M25, PG21/28,3 | 25.9 | 10 | 13 | 16 | 19 | 8 | 100 |
| 329 UG | M32, M40, PG29/37,0 | 34.7 | 18 | 21 | 24 | 27 | 9,5 | 50 |
| 336 UG | M40, M50, PG36/47,0 | 44.7 | 24 | 27 | 30 | 33 | 12 | 50 |
| 342 UG-30 | M50, PG42/54,0 | 51.7 | 30 | 33 | 36 | 39 | 14 | 25 |
| 348 UG-36 | M63, PG48/59,3 | 56.9 | 36 | 39 | 42 | 45 | 14 | 25 |
Material:
SBR/NBR
Temperature range:
-30°C....+100°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
