Sealing insert for AS-i Bus-cable Metric
For especially molded AS-i (Actuator-Sensor-Interface) Bus-cable.
Assembled in ”PERFECT” metric plastic- and brass cable glands.
- M20 (2)
- M25 (2)

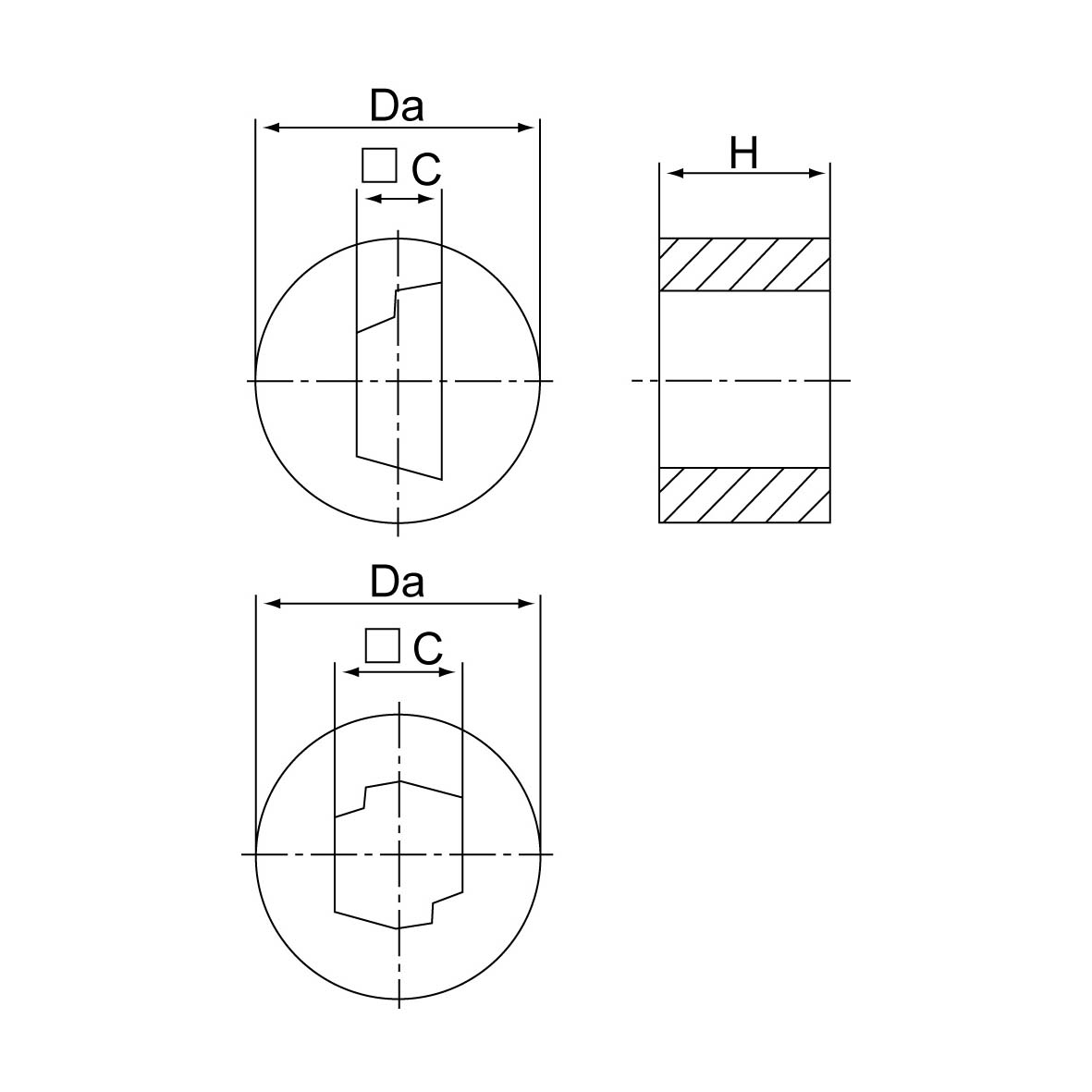

| E-number | Size | C | Da mm | H mm | Pcs/pack |

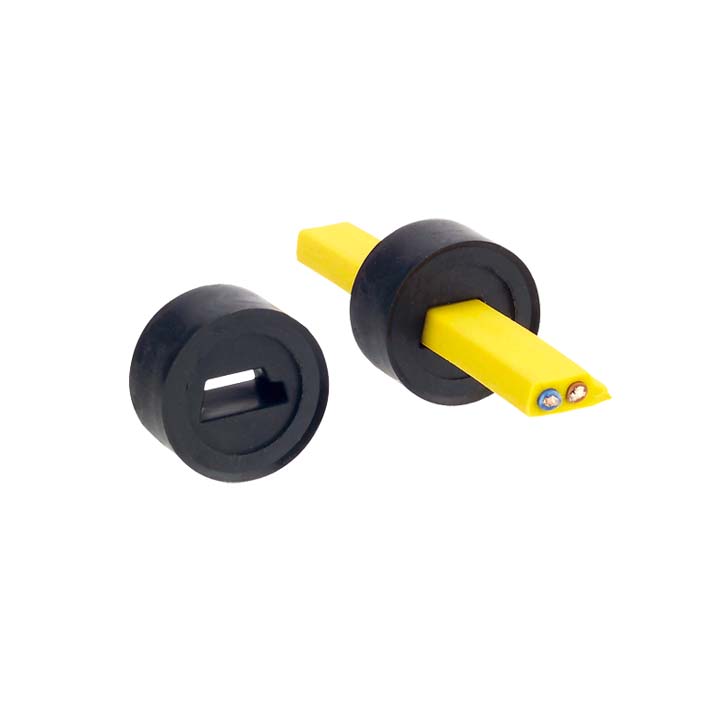

| 1466633 | M20 | 1 x AS-i | 15 | 9 | 50 |
| 1466634 | M25 | 1 x AS-i | 19.8 | 9,3 | 50 |

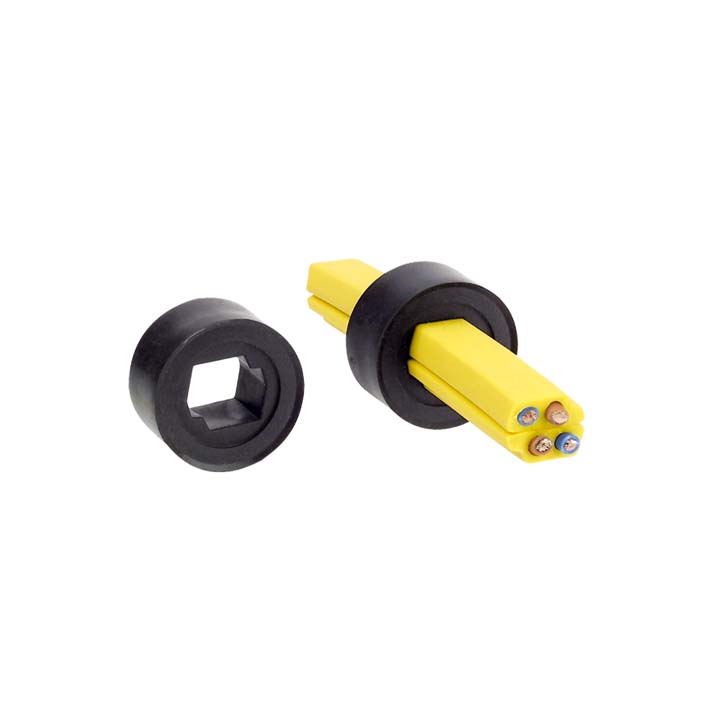

| 1466635 | M20 | 2 x AS-i | 15 | 9 | 50 |
| 1466636 | M25 | 2 x AS-i | 19.8 | 9,3 | 50 |
Material:
TPE TPS
Temperature range:
-30°C....+100°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
