- PG9/15,2 (4)
- PG11/18,6 (4)
- PG13,5/20,4 (5)
- PG16/22,5 (10)
- PG21/28,3 (6)
- PG29/37,0 (3)

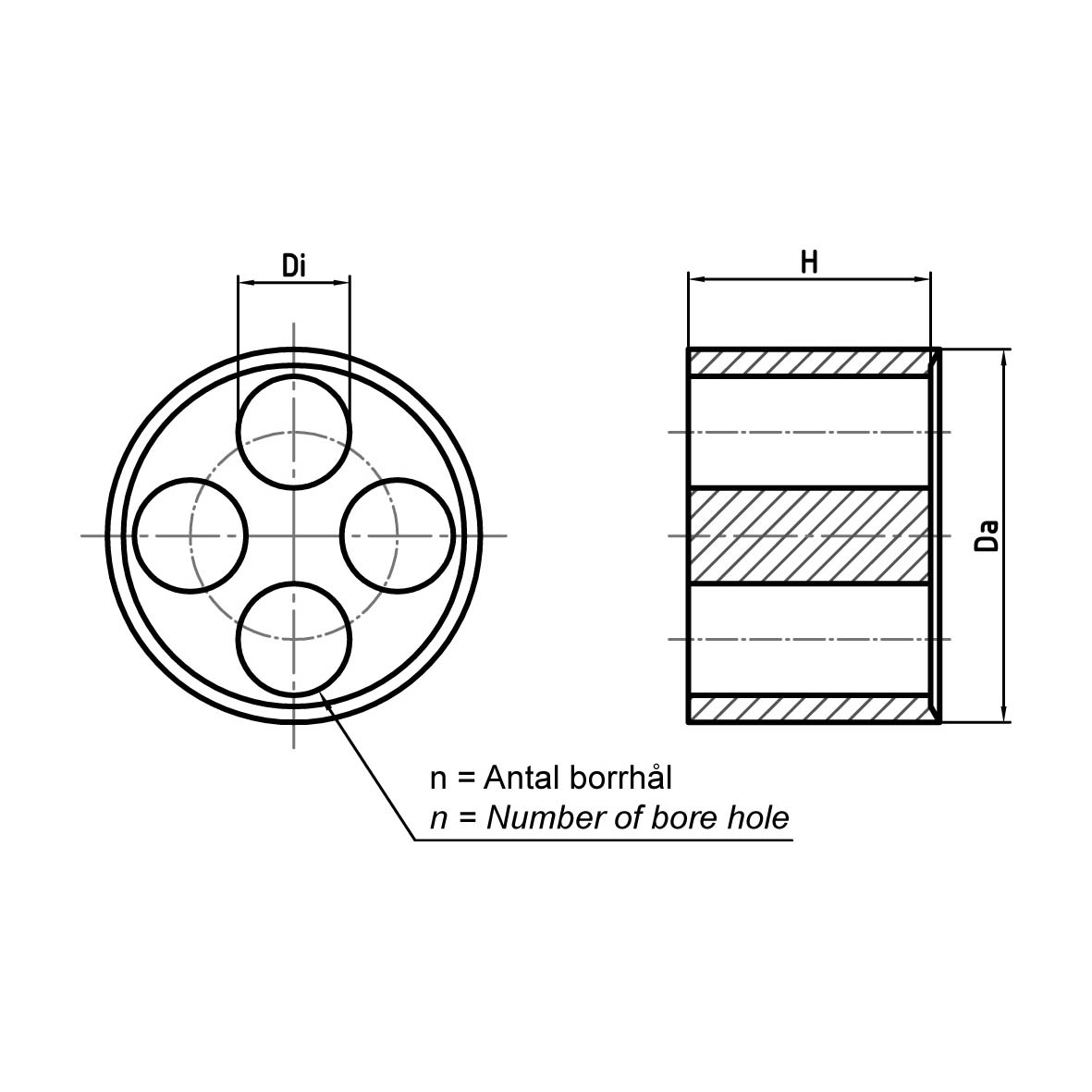

| E-number | Size | n x Di mm | Da mm | H mm | Pcs/pack |
| 1460350 | PG9/15,2 | 2 x 3 | 10.6 | 7,5 | 100 |
| 1460351 | PG9/15,2 | 3 x 2 | 10.6 | 7,5 | 100 |
| 1460352 | PG9/15,2 | 4 x 2 | 10.6 | 7,5 | 100 |
| 1460353 | PG9/15,2 | 4 x 3 | 10.6 | 7,5 | 100 |
| 1460355 | PG11/18,6 | 2 x 4 | 13.3 | 8,5 | 100 |
| 1460356 | PG11/18,6 | 2 x 4,5 | 13.3 | 8,5 | 100 |
| 1460357 | PG11/18,6 | 3 x 4 | 13.3 | 8,5 | 100 |
| 1460358 | PG11/18,6 | 3 x 5 | 13.3 | 8,5 | 100 |
| 1460359 | PG13,5/20,4 | 2 x 4,5 | 15.3 | 8,5 | 100 |
| 1460363 | PG13,5/20,4 | 2 x 5 | 15.3 | 8,5 | 100 |
| 1460360 | PG13,5/20,4 | 2 x 6 | 15.3 | 8,5 | 100 |
| 1460361 | PG13,5/20,4 | 3 x 4 | 15.3 | 8,5 | 100 |
| 1460362 | PG13,5/20,4 | 3 x 5 | 15.3 | 8,5 | 100 |
| 1460370 | PG16/22,5 | 2 x 4 | 17.4 | 9 | 100 |
| 1460371 | PG16/22,5 | 2 x 6 | 17.4 | 9 | 100 |
| 1460372 | PG16/22,5 | 3 x 4 | 17.4 | 9 | 100 |
| 1460373 | PG16/22,5 | 3 x 6 | 17.4 | 9 | 100 |
| 1460374 | PG16/22,5 | 3 x 6,5 | 17.4 | 9 | 100 |
| 1460375 | PG16/22,5 | 4 x 5 | 17.4 | 9 | 100 |
| 1460376 | PG16/22,5 | 5 x 4 | 17.4 | 9 | 100 |
| 1460377 | PG16/22,5 | 3 x 5 | 17.4 | 9 | 100 |
| 1460378 | PG16/22,5 | 4 x 4 | 17.4 | 9 | 100 |
| 1460379 | PG16/22,5 | 4 x 6 | 17.4 | 9 | 100 |
| 1460380 | PG21/28,3 | 2 x 7 | 22.2 | 11 | 50 |
| 1460381 | PG21/28,3 | 2 x 8 | 22.2 | 11 | 50 |
| 1460382 | PG21/28,3 | 2 x 9 | 22.2 | 11 | 50 |
| 1460383 | PG21/28,3 | 3 x 7 | 22.2 | 11 | 50 |
| 1460384 | PG21/28,3 | 3 x 8 | 22.2 | 11 | 50 |
| 1460385 | PG21/28,3 | 4 x 7 | 22.2 | 11 | 50 |
| 1460390 | PG29/37,0 | 5 x 8,5 | 29.8 | 13 | 50 |
| 1460391 | PG29/37,0 | 6 x 5 | 29.8 | 13 | 50 |
| 1460392 | PG29/37,0 | 8 x 5 | 29.8 | 13 | 50 |
Information_Klikseal:
Assembled in ”PERFECT” PG plastic- and brass cable glands.
E1459915-37, E1459515-59, E1459875-99, E1459965-78, E1459984-92, E1460004-12, E 1460022 - 32, E1460405-23, E1460432-48, E1476119, E1476104 & E1476129.

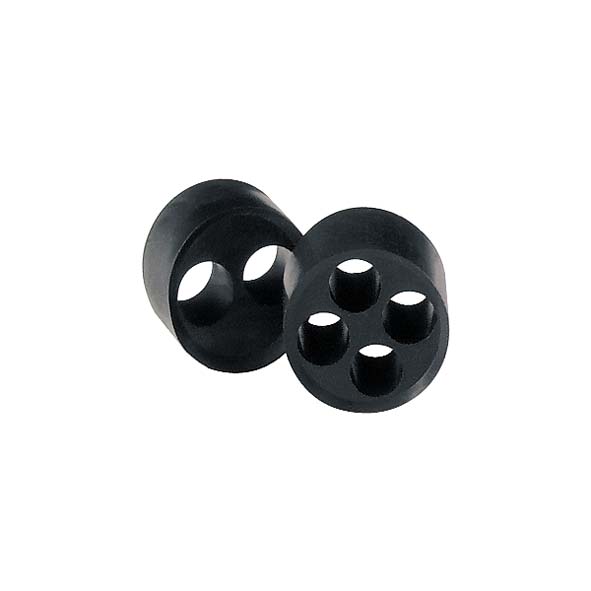

- Seling inserts for installation of several single cables
Material:
TPE TPS
Temperature range:
-30°C....+100°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
