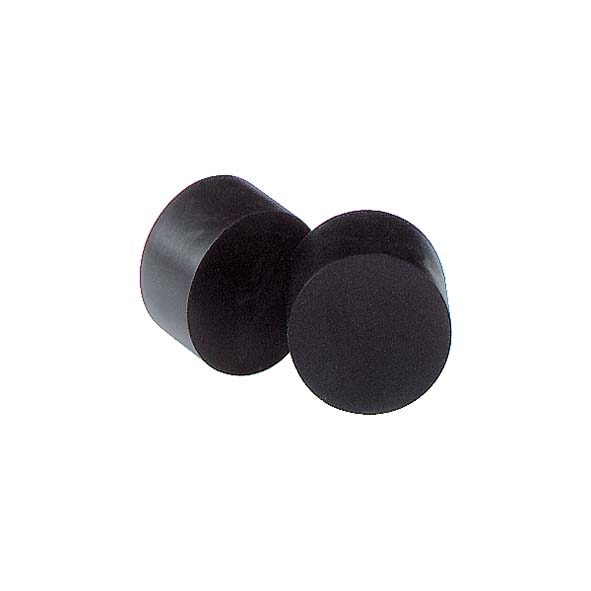

Sealing insert without bore hole PG
Assembled in ”PERFECT” PG plastic- and brass cable glands.
E1473201-06, E1473211-16, E1476111-16, E1476101-03, 05-07, E1476121-26, E1476160-66, E1475901-06, E1475911-16, E1476170-75, E1476261-65, E1476001-06, E1476011-16, E1475054-59 & 50.612PA/FL-50.640PA/FL
- PG7/12,5 (1)
- PG9/15,2 (1)
- PG11/18,6 (1)
- PG13,5/20,4 (1)
- PG16/22,5 (1)
- PG21/28,3 (1)
- PG29/37,0 (1)

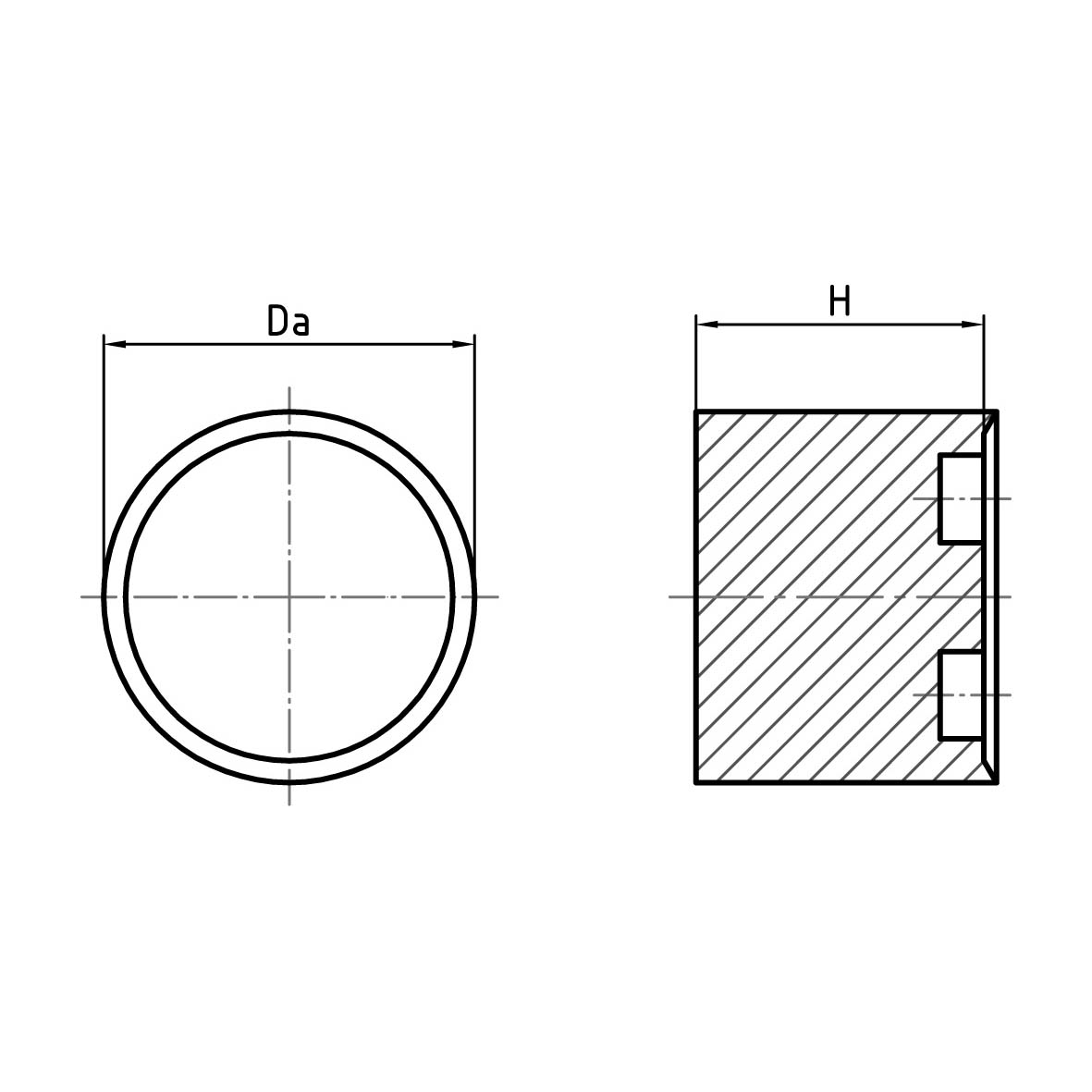

| E-number | Size | n x Di mm | Da mm | H mm | Pcs/pack |
| 1460393 | PG7/12,5 | - | 8.3 | 6,5 | 50 |
| 1460394 | PG9/15,2 | - | 10.6 | 7,5 | 50 |
| 1460395 | PG11/18,6 | - | 13.3 | 8,5 | 50 |
| 1460396 | PG13,5/20,4 | - | 15.3 | 8,5 | 50 |
| 1460397 | PG16/22,5 | - | 17.4 | 9 | 50 |
| 1460398 | PG21/28,3 | - | 22.2 | 11 | 50 |
| 1460399 | PG29/37,0 | - | 30.3 | 14 | 50 |
Material:
TPE TPS
Temperature range:
-30°C....+100°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
