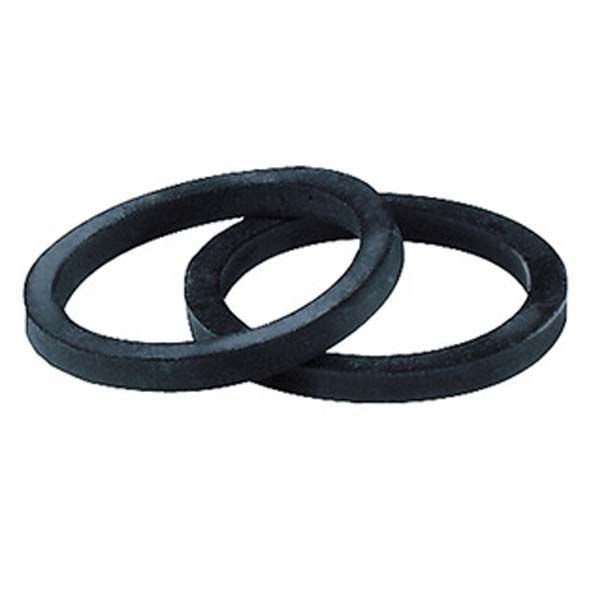

Sealing Ring Metric CR
For improved sealing on the connecting thread.
- M12 (1)
- M16 (1)
- M20 (1)
- M25 (1)
- M32 (1)
- M40 (1)
- M50 (1)
- M63 (1)
| Article no. | Size | Da mm | Di mm | H mm | Pcs/pack |
| FD-M12 | M12 | 14.5 | 10.2 | 1 | 100 |
| FD-M16 | M16 | 19.5 | 14.2 | 1 | 100 |
| FD-M20 | M20 | 23.5 | 18.2 | 1 | 100 |
| FD-M25 | M25 | 29.5 | 23.2 | 1 | 100 |
| FD-M32 | M32 | 36.5 | 30.2 | 1 | 100 |
| FD-M40 | M40 | 45.5 | 38.2 | 1 | 50 |
| FD-M50 | M50 | 55.5 | 48.2 | 1 | 25 |
| FD-M63 | M63 | 69.5 | 61.2 | 1 | 10 |
Material:
Chloroprene
Temperature range:
-30°C....+100°C
Colour:
Black RAL 9005
