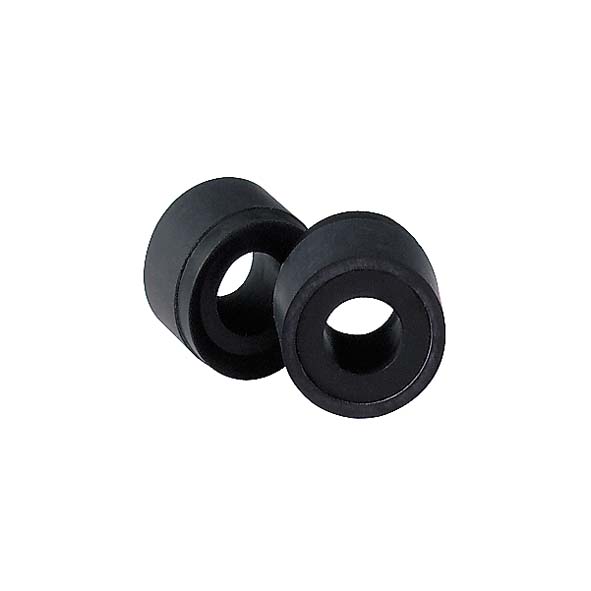

Sealing ring Metric
- Reducing sealing ring (two-piece) for a larger range of cable diameters
- M12 (1)
- M16 (1)
- M20 (1)
- M25 (1)
- M32 (1)
- M40 (1)
- M50 (1)
- M63 (1)

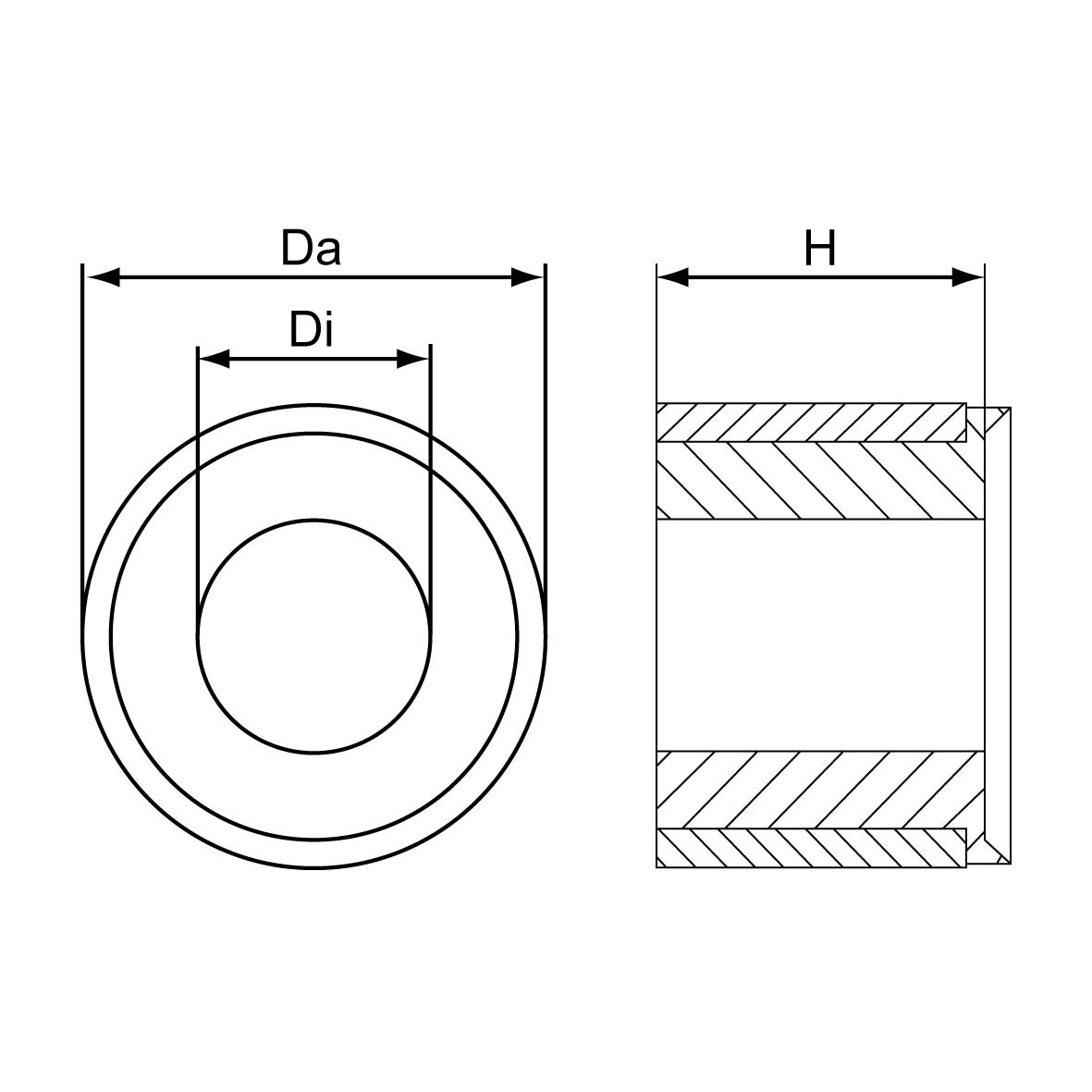

| E-number | Size | Da mm | Di mm | H mm | Pcs/pack |
| 1466611 | M12 | 8.2 | 5 | 6,5 | 50 |
| 1466612 | M16 | 12 | 6 | 8,5 | 50 |
| 1466613 | M20 | 15.5 | 8 | 8,5 | 50 |
| 1466614 | M25 | 20 | 12 | 10 | 50 |
| 1466615 | M32 | 25 | 16 | 13,5 | 25 |
| 1466616 | M40 | 33.2 | 21 | 16 | 10 |
| 1466617 | M50 | 41 | 27 | 17,5 | 5 |
| 1466618 | M63 | 54 | 34 | 19 | 5 |
Material Inner part:
Evoprene TPE
Material Outher part:
Polychloropren-Nitrile rubber CR/NBR
Temperature range:
-20°C....+100°C
Colour:
Black RAL 9005
Halogen-Free:
Yes
