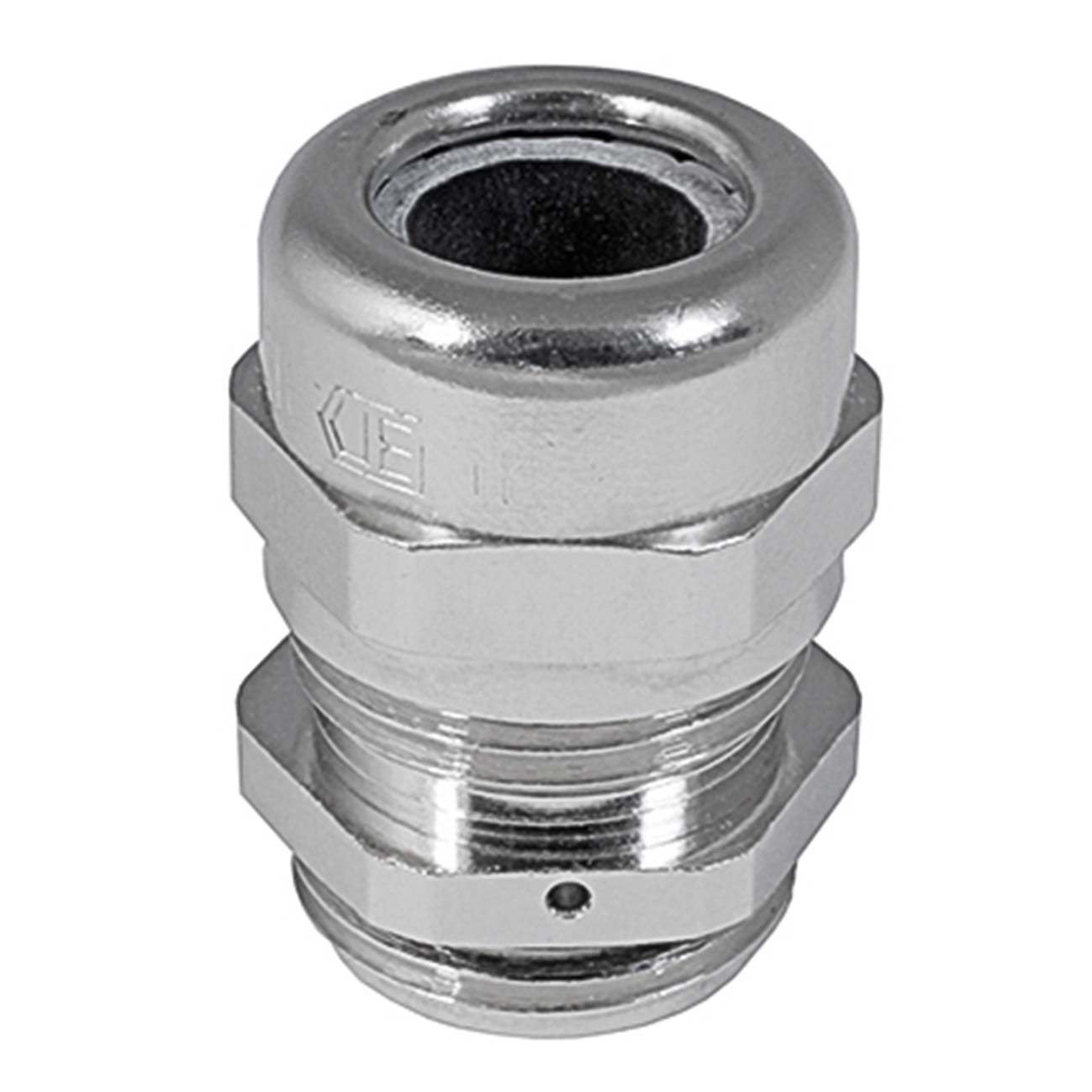

Cable Gland Brass IP68 AirVent Metric
- Integrated anchorage
- Protection against twisting
- Easy-to-install
- Protection for hermetically sealed electro-technical and electronic enclosures against condensation water from alternating temperature and pressure
- Continuous ventilation and adaption of the inner pressure
- The membrane has no function if it is blocked with dust and/or submerged in water.
**Sealing ring two-part design (outer part CR/NBR, inner part TPE TPS)
Material:
Brass nickel plated (CuZn39Pb3)
Lamellar insert:
Polyamide PA6 V-2
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
Membrane:
Polytetrafluorethylene PTFE
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP66 / IP68
Temperature range:
-20°C....+100°C
Average Air Flow:
1425ml/min at Δp = 0,07 bar
Water Intrusion Pressure:
>0,3 bar (for the membrane)
