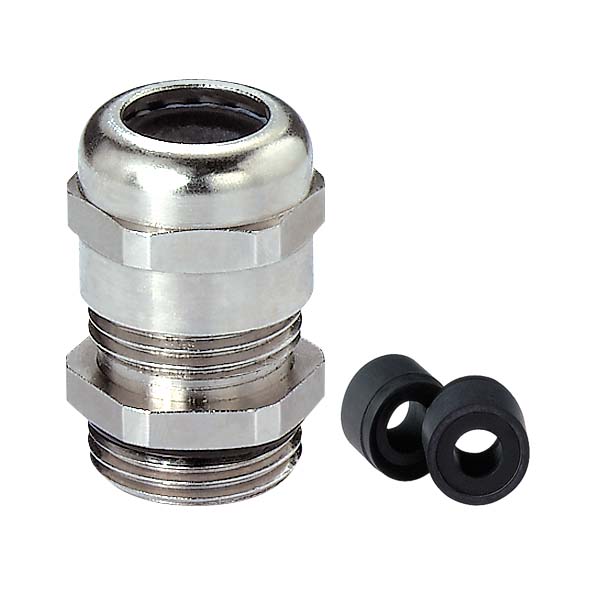

Cable Gland Brass IP68 Reducing Sealing ring Metric
- Reducing sealing ring for small cablediameter. E-1475701 with sealing ring in one-piece.
- Integrated anchorage
- Protection against twisting
- Easy-to-install
Material:
Brass nickel plated (CuZn39Pb3)
Lamellar insert:
Polyamide PA6 V-2
Sealing ring / inner part:
Evoprene TPE
Sealing ring / outer part:
Polychloroprene-Nitrile rubber CR/NBR
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP68 - 5 bar
Temperature range:
-20°C....+100°C (dynamisk)
-40°C (static, short term)
-40°C (static, short term)
Colour:
Brass nickel plated
Test standard:
EN 62444 / UL514B
VDE licence:
40020901
UL / CSA-File:
E140310
SEV licence:
02.1465
Halogen-Free:
Yes
