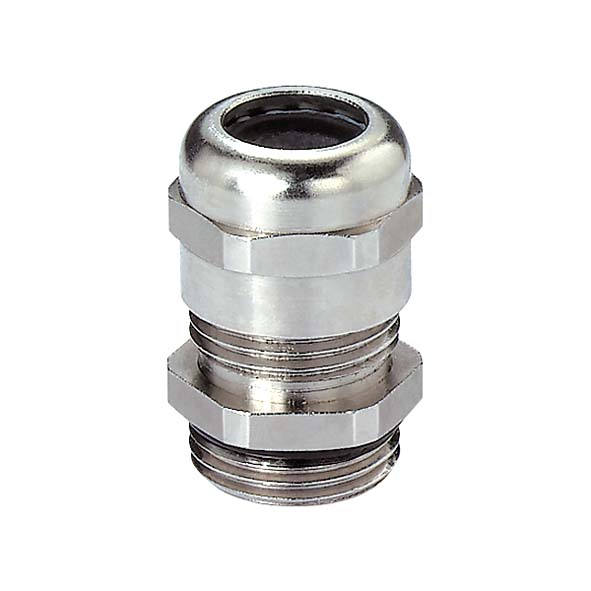

Cable Gland IP68 EMC Metric
Lead-Free

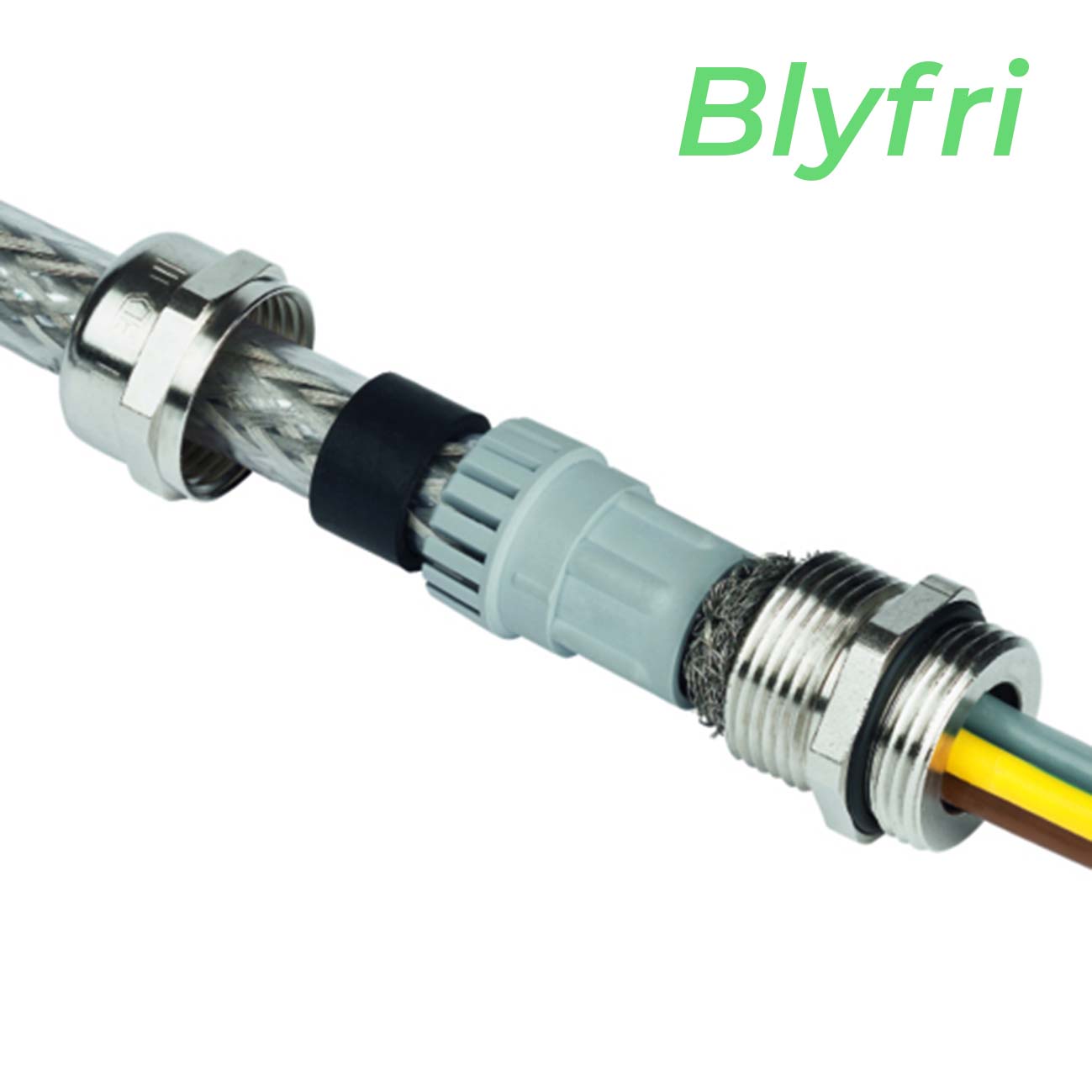

- For cables with shielding
- Integrated anchorage
- Protection against twisting by the construction of the lamellar insert.
- Lead-Free
- Short and long thread
- M12x1,5 (2)
- M16x1,5 (2)
- M20x1,5 (2)
- M25x1,5 (2)
- M32x1,5 (2)
- M40x1,5 (2)
- M50x1,5 (2)
- M63x1,5 (4)
- 3 - 6 (2)
- 5 - 9 (2)
- 9 - 13 (2)
- 11 - 16 (2)
- 14 - 20 (2)
- 19 - 27 (2)
- 24 - 35 (2)
- 32 - 42 (2)
- 38 - 48 (2)
| E-number | Article no. | Connection thread | For cable Ø mm | L mm | H mm | SW1 mm | E1 mm | Pcs/pack |
| 1473221 | 50.612Y/EMV | M12x1,5 | 3 - 6 | 5 | 25 | 14 | 15.5 | 100 |
| 1473222 | 50.616Y/EMV | M16x1,5 | 5 - 9 | 5 | 30 | 17 | 19 | 100 |
| 1473223 | 50.620Y/EMV | M20x1,5 | 9 - 13 | 6 | 33,5 | 22 | 24 | 100 |
| 1473224 | 50.625Y/EMV | M25x1,5 | 11 - 16 | 7 | 36,5 | 27 | 30 | 50 |
| 1473225 | 50.632Y/EMV | M32x1,5 | 14 - 20 | 8 | 38 | 34 | 36 | 25 |
| 1473226 | 50.640Y/EMV | M40x1,5 | 19 - 27 | 8 | 41 | 43 | 46 | 10 |
| 1473227 | 50.650Y/EMV | M50x1,5 | 24 - 35 | 9 | 49,5 | 55 | 60 | 5 |
| 1473228 | 50.663Y/EMV | M63x1,5 | 32 - 42 | 10 | 52,5 | 65 | 70 | 5 |
| 1473229 | 50.663Y1/EMV | M63x1,5 | 38 - 48 | 10 | 52,5 | 65 | 70 | 5 |
| Long thread | ||||||||
| 1473231 | 50.612Y/EMV/L | M12x1,5 | 3 - 6 | 10 | 30 | 14 | 15.5 | 100 |
| 1473232 | 50.616Y/EMV/L | M16x1,5 | 5 - 9 | 10 | 35 | 17 | 19 | 100 |
| 1473233 | 50.620Y/EMV/L | M20x1,5 | 9 - 13 | 10 | 37,5 | 22 | 24 | 100 |
| 1473234 | 50.625Y/EMV/L | M25x1,5 | 11 - 16 | 11 | 40,5 | 27 | 30 | 50 |
| 1473235 | 50.632Y/EMV/L | M32x1,5 | 14 - 20 | 13 | 43 | 34 | 36 | 25 |
| 1473236 | 50.640Y/EMV/L | M40x1,5 | 19 - 27 | 13 | 46 | 43 | 46 | 10 |
| 1473237 | 50.650Y/EMV/L | M50x1,5 | 24 - 35 | 14 | 54,5 | 55 | 60 | 5 |
| 1473238 | 50.663Y/EMV/L | M63x1,5 | 32 - 42 | 14 | 56,5 | 65 | 70 | 5 |
| 1473239 | 50.663Y1/EMV/L | M63x1,5 | 38 - 48 | 14 | 56,5 | 65 | 70 | 5 |
* IP69K tested for M12-M25, M50 & M63
Material:
Brass nickel plated (CuZn21Si3P)
Lamellar insert:
Polyamide PA6 V-2
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP68 - 5 bar, IP69K*
Temperature range:
-20°C....+100°C (dynamisk)
-40°C (static, short term)
-40°C (static, short term)
Colour:
Brass nickel plated
Test standard:
EN 62444 / UL514B
VDE licence:
40020901
UL / CSA-File:
E140310
Halogen-Free:
Yes
