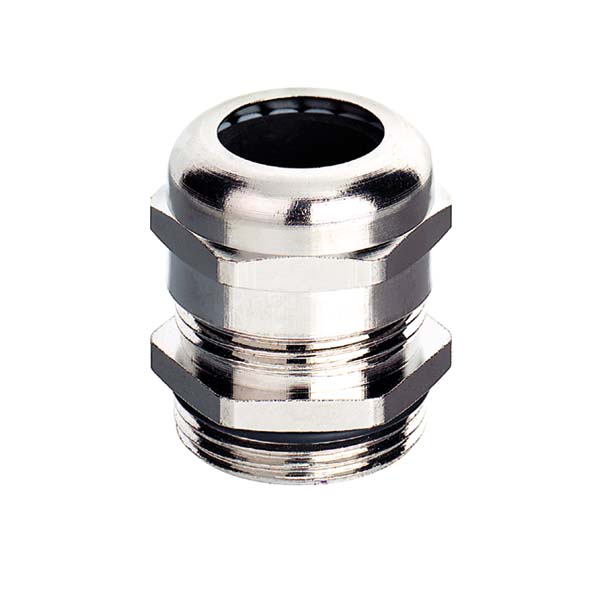

Cable Gland IP68 EMC PG

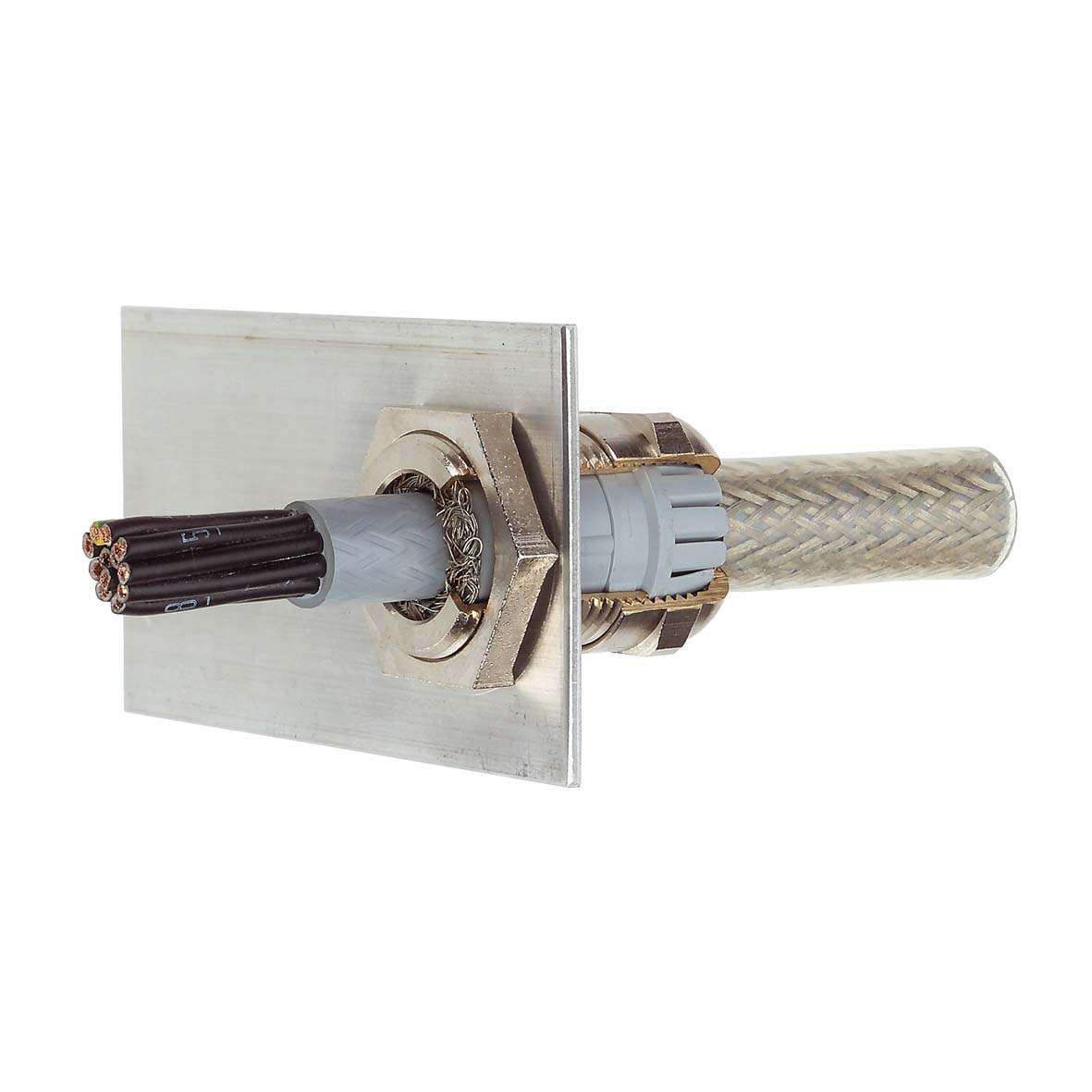

- For cables with shielding
- Integrated anchorage
- Protection against twisting by the construction of the lamellar insert.
- PG7/12,5 (1)
- PG9/15,2 (1)
- PG11/18,6 (1)
- PG13,5/20,4 (1)
- PG16/22,5 (1)
- PG21/28,3 (1)
- PG29/37,0 (1)
- PG36/47,0 (1)
- PG42/54,0 (1)
- PG48/59,3 (1)
- 3 - 6,5 (1)
- 4 - 8 (1)
- 5 - 10 (1)
- 6 - 12 (1)
- 10 - 14 (1)
- 13 - 18 (1)
- 18 - 25 (1)
- 24 - 32 (1)
- 30 - 38 (1)
- 34 - 44 (1)

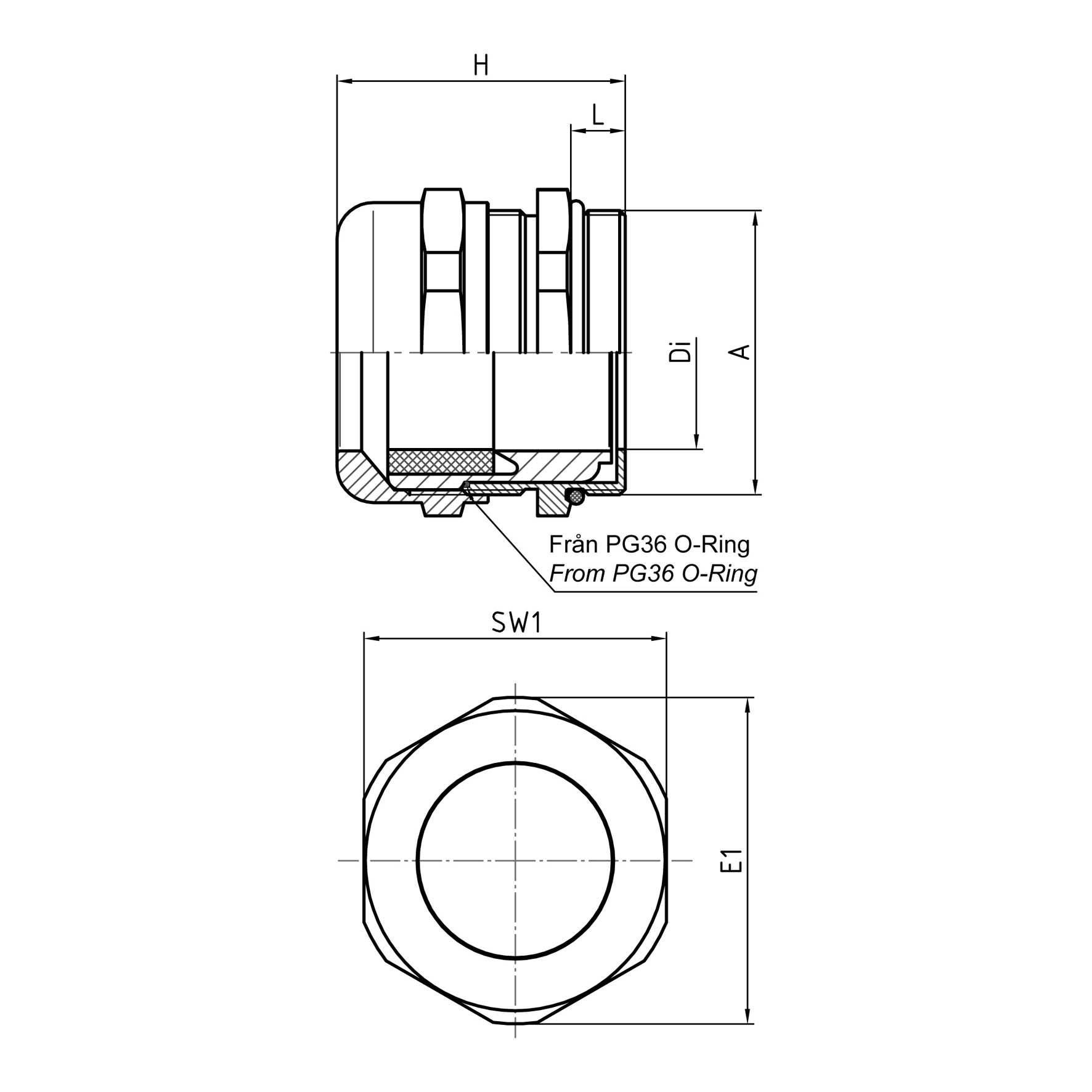

| E-number | Connection thread | For cable Ø mm | L mm | Di mm | H mm | SW1 mm | E1 mm | Pcs/pack |
| 1460800 | PG7/12,5 | 3 - 6,5 | 5 | 6.5 | 24 | 14 | 15.5 | 100 |
| 1460801 | PG9/15,2 | 4 - 8 | 6 | 8 | 29 | 17 | 19 | 100 |
| 1460802 | PG11/18,6 | 5 - 10 | 6 | 10 | 29,5 | 20 | 22 | 50 |
| 1460803 | PG13,5/20,4 | 6 - 12 | 6.5 | 12 | 31,5 | 22 | 24 | 50 |
| 1460804 | PG16/22,5 | 10 - 14 | 6.5 | 14 | 31,5 | 24 | 26.7 | 50 |
| 1460805 | PG21/28,3 | 13 - 18 | 7 | 18 | 34 | 30 | 33.5 | 50 |
| 1460806 | PG29/37,0 | 18 - 25 | 8 | 25 | 39 | 40 | 44 | 25 |
| 1460807 | PG36/47,0 | 24 - 32 | 9 | 32 | 45 | 50 | 54 | 10 |
| 1460808 | PG42/54,0 | 30 - 38 | 10 | 38 | 49 | 57 | 61 | 5 |
| 1460809 | PG48/59,3 | 34 - 44 | 10 | 44 | 52 | 64 | 69 | 5 |
Material:
Brass nickel plated (CuZn39Pb3)
Lamellar insert:
Polyamide PA6 V-2
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP68 - 5 bar
Temperature range:
-20°C....+100°C (dynamisk)
-40°C (static, short term)
-40°C (static, short term)
Colour:
Brass nickel plated
Halogen-Free:
Yes
