Cable Gland IP68 UNI EMC Dicht Metrisk
- Reliable screening even with intense vibration. This EMC cable gland provides contact reliability in any application by compressing the braided shield between a pair of cones.

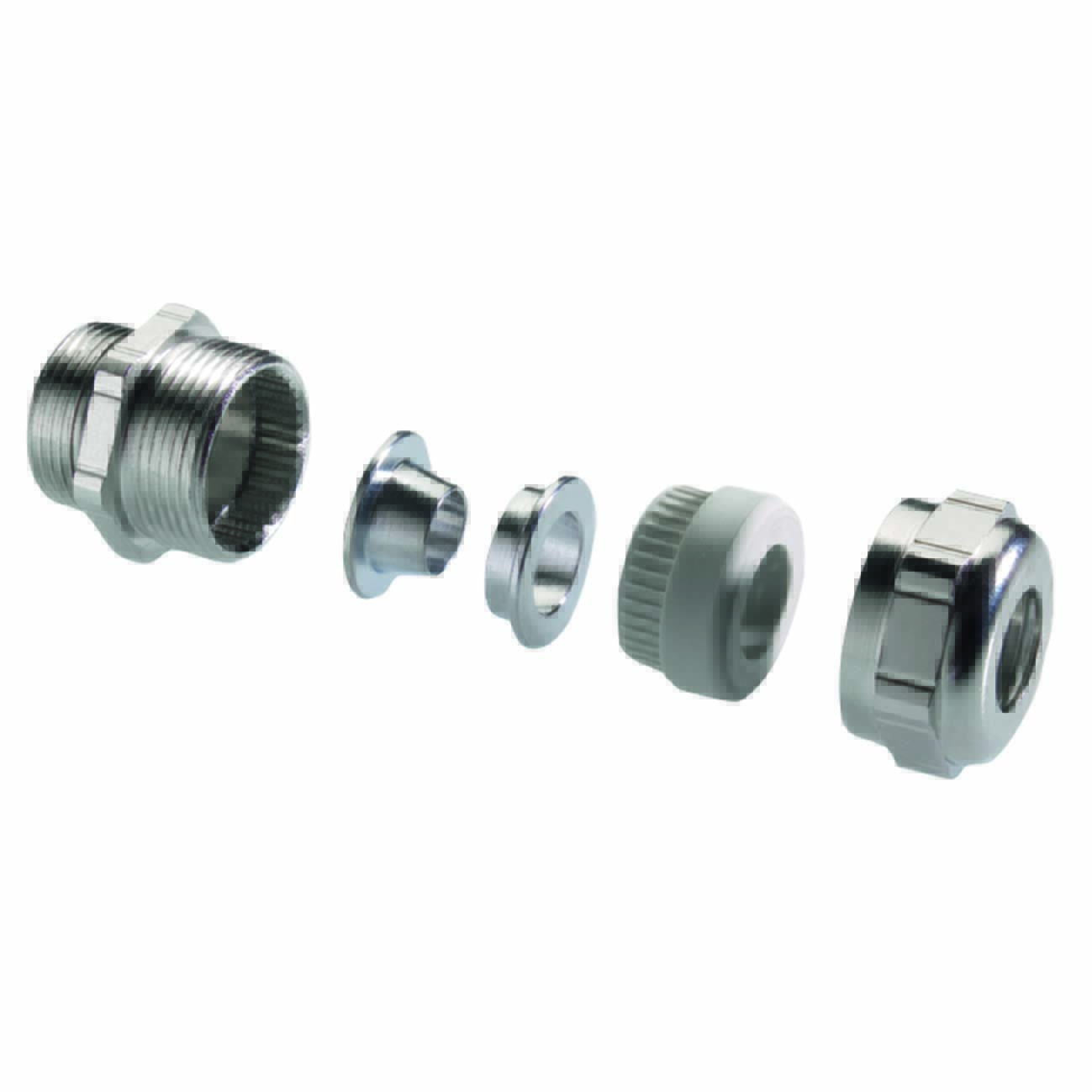

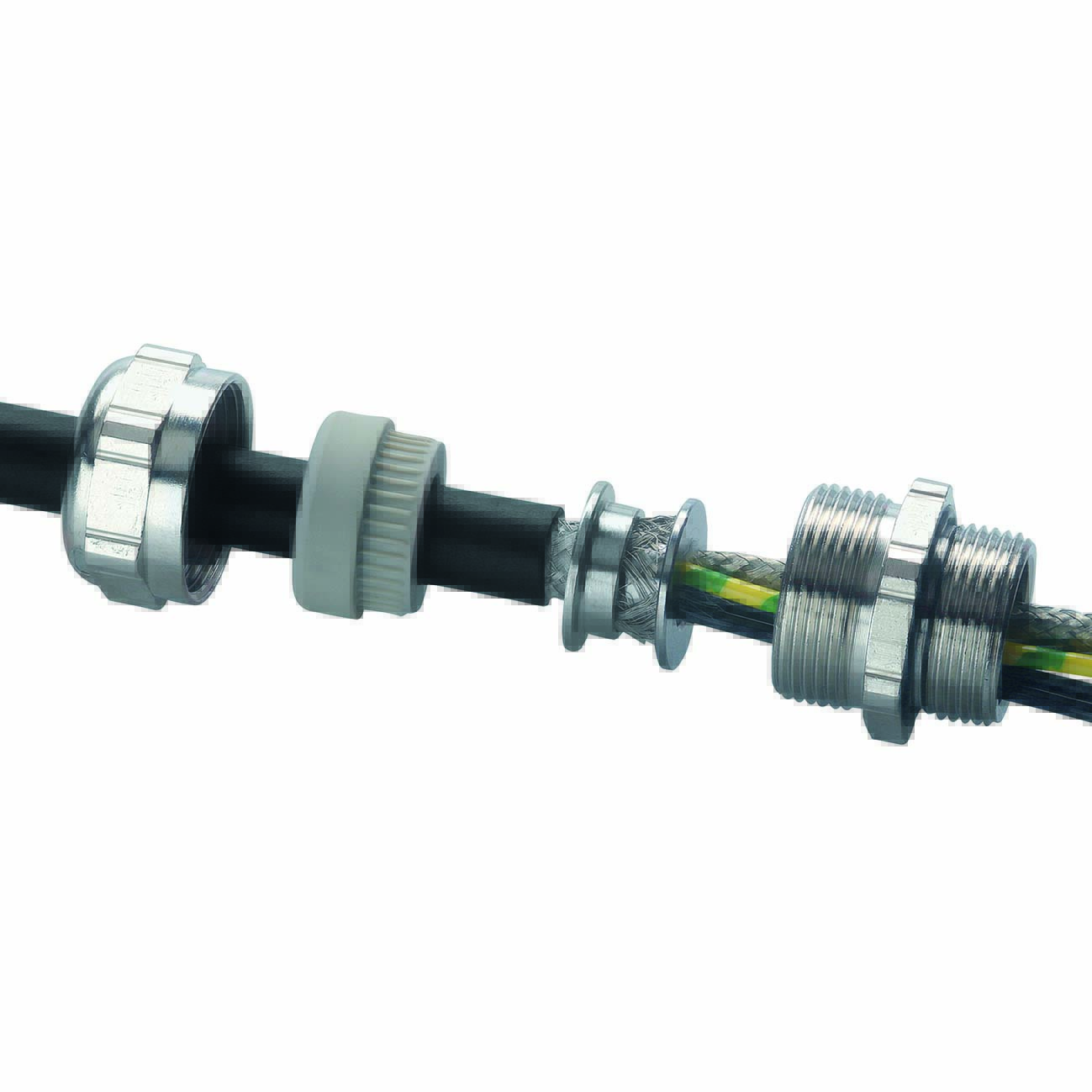

- When the pressure screw is tightened, the sealing insert presses the inner and outer cones together, thus also compressing the cable shield located between them. A low-resistance and low-impedance 360° connection is made between the shield, the earthing insert and the gland body over a large area (see assembly instructions). The braiding ends in the gland.
- Ideal for maritime applications with DNV certification. The UNI EMC Dicht cable gland was designed on the basis of DIN 89280. It is therefore primarily used in shipbuilding and transport technology. It is certified by DNV under number TAE000018U.
- Strain relief up to class A, EN 62444
- Available on request: connection thread 15 mm (up to M40) and in stainless steel
- M16x1,5 (3)
- M20x1,5 (3)
- M25x1,5 (8)
- M32x1,5 (4)
- M40x1,5 (3)
- M50x1,5 (2)
- M63x1,5 (3)
- 4,0 - 6,5 (2)
- 6,5 - 9,0 (2)
- 8,0 - 11,0 (3)
- 6,5 - 9,5 (1)
- 10,0 - 14,0 (2)
- 14,0 - 16,5 (1)
- 14,0 - 18,0 (2)
- 17,0 - 20,0 (1)
- 19,0 - 23,0 (2)
- 22,0 - 26,0 (2)
- 25,0 - 30,0 (1)
- 29,0 - 32,0 (1)
- 30,0 - 35,0 (1)
- 32,0 - 37,0 (1)
- 37,0 - 41,0 (1)
- 40,0 - 45,0 (1)
- 45,0 - 51,0 (1)
- 51,0 - 56,0 (1)

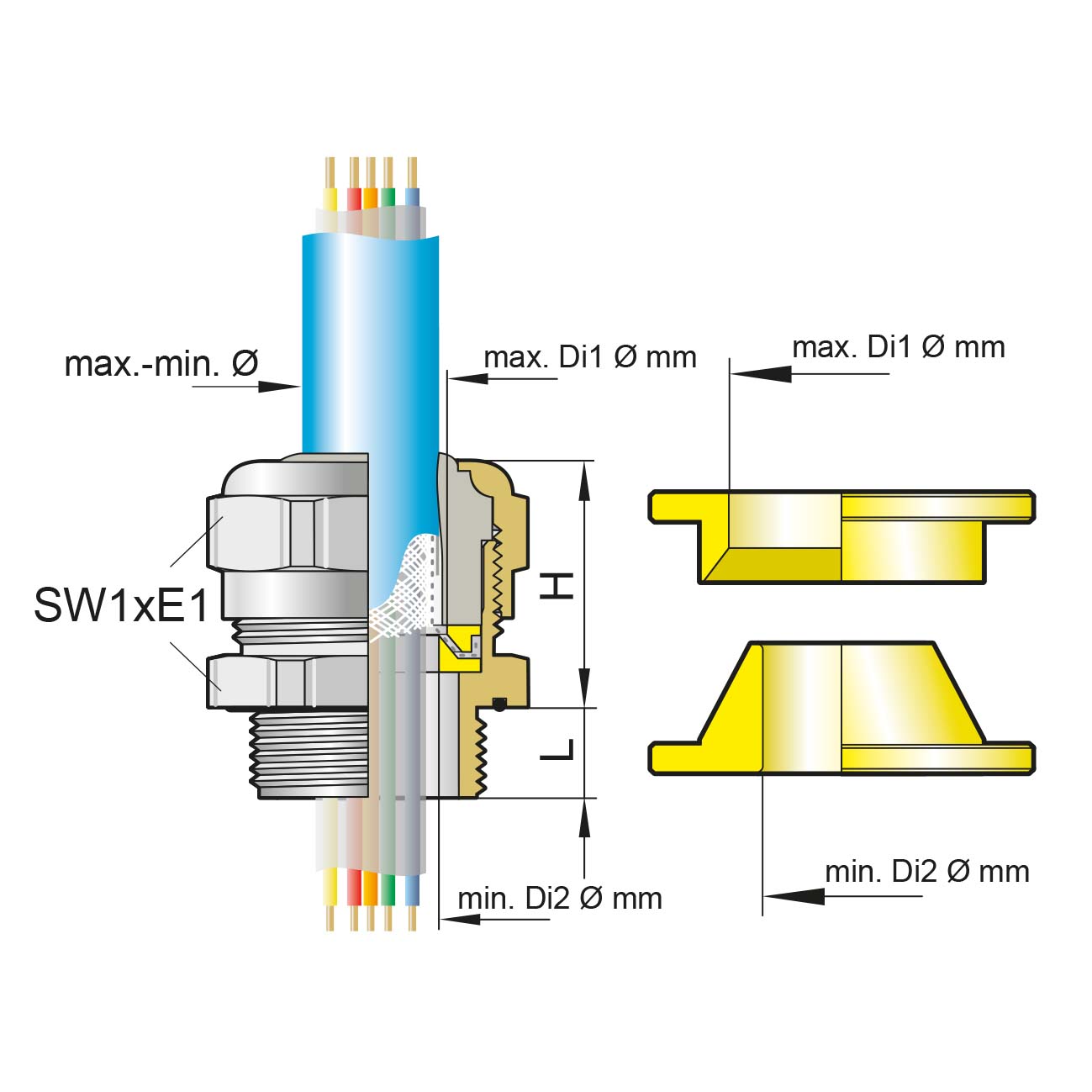

| Article no. | Connection thread | For cable Ø mm | L mm | Di1 mm | Di2 mm | H mm | SW1 mm | E1 mm | Pcs/pack |
| 216220700 | M16x1,5 | 4,0 - 6,5 | 10 | 6.5 | 3.3 | 31 | 24 | 26.7 | 50 |
| 216220901 | M16x1,5 | 6,5 - 9,0 | 10 | 8.2 | 6 | 31 | 24 | 26.7 | 50 |
| 216221102 | M16x1,5 | 8,0 - 11,0 | 10 | 9.2 | 7 | 31 | 24 | 26.7 | 50 |
| 220220700 | M20x1,5 | 4,0 - 6,5 | 10 | 6.5 | 3.3 | 31 | 24 | 26.7 | 50 |
| 220220901 | M20x1,5 | 6,5 - 9,0 | 10 | 8.2 | 6 | 31 | 24 | 26.7 | 50 |
| 220221102 | M20x1,5 | 8,0 - 11,0 | 10 | 9.2 | 7 | 31 | 24 | 26.7 | 50 |
| 225280903 | M25x1,5 | 6,5 - 9,5 | 11 | 8.2 | 6 | 32 | 30 | 33.5 | 25 |
| 225281104 | M25x1,5 | 8,0 - 11,0 | 11 | 9.2 | 7 | 32 | 30 | 33.5 | 25 |
| 225281205 | M25x1,5 | 10,0 - 14,0 | 11 | 10.2 | 8 | 32 | 30 | 33.5 | 25 |
| 225281406 | M25x1,5 | 10,0 - 14,0 | 11 | 12.7 | 10.5 | 32 | 30 | 33.5 | 25 |
| 225281607 | M25x1,5 | 14,0 - 16,5 | 11 | 15.2 | 13 | 3 | 30 | 33.5 | 25 |
| 225281808 | M25x1,5 | 14,0 - 18,0 | 11 | 16.3 | 14.5 | 32 | 30 | 33.5 | 25 |
| 225321809 | M25x1,5 | 14,0 - 18,0 | 11 | 18 | 16 | 34 | 35 | 38.5 | 25 |
| 225322010 | M25x1,5 | 17,0 - 20,0 | 11 | 20 | 18 | 34 | 35 | 38.5 | 25 |
| 232382311 | M32x1,5 | 19,0 - 23,0 | 13 | 22 | 20 | 39 | 40 | 43.5 | 10 |
| 232382312 | M32x1,5 | 19,0 - 23,0 | 13 | 24 | 22 | 39 | 40 | 43.5 | 10 |
| 232382611 | M32x1,5 | 22,0 - 26,0 | 13 | 22 | 20 | 39 | 40 | 43.5 | 10 |
| 232382613 | M32x1,5 | 22,0 - 26,0 | 13 | 26 | 24 | 39 | 40 | 43.5 | 10 |
| 240483014 | M40x1,5 | 25,0 - 30,0 | 14 | 29 | 27 | 45 | 50 | 54 | 5 |
| 240483215 | M40x1,5 | 29,0 - 32,0 | 14 | 32 | 30 | 45 | 50 | 54 | 5 |
| 240483515 | M40x1,5 | 30,0 - 35,0 | 14 | 32 | 30 | 45 | 50 | 54 | 5 |
| 250583716 | M50x1,5 | 32,0 - 37,0 | 15 | 37 | 35 | 50 | 60 | 65 | 5 |
| 250584117 | M50x1,5 | 37,0 - 41,0 | 15 | 41 | 39 | 50 | 60 | 65 | 5 |
| 263754518 | M63x1,5 | 40,0 - 45,0 | 16 | 46 | 44 | 58 | 81 | 87 | 1 |
| 263755119 | M63x1,5 | 45,0 - 51,0 | 16 | 51 | 49 | 58 | 81 | 87 | 1 |
| 263755619 | M63x1,5 | 51,0 - 56,0 | 16 | 51 | 49 | 58 | 81 | 87 | 1 |
Material:
Brass nickel plated (CuZn39Pb3)
Sealing ring:
TPE-V
O-ring:
HNBR
Ingress protection:
IP68 up to 10 bar
Temperature range:
-40°C....+135°C
