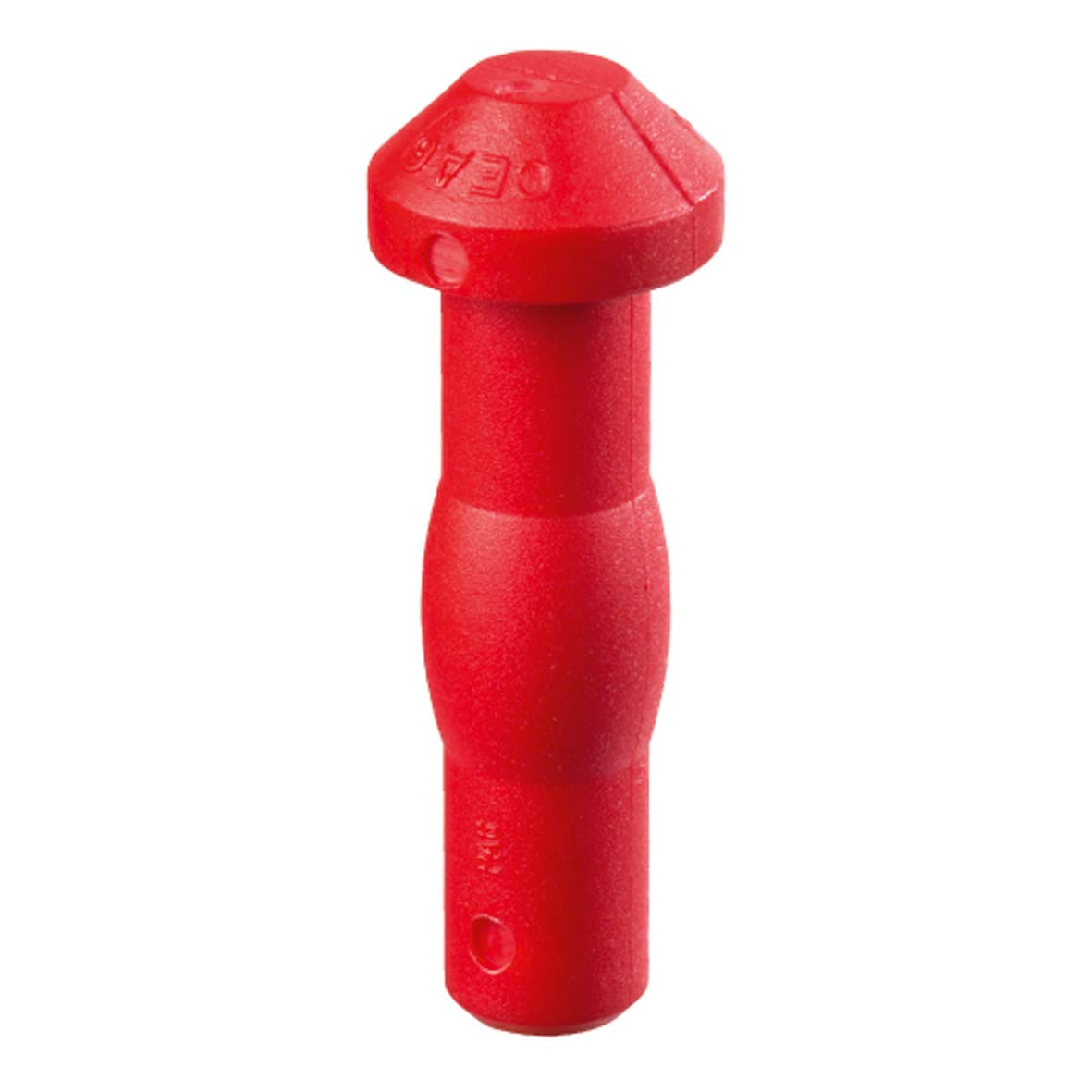

Blanking plug IP66 Ex e Metric

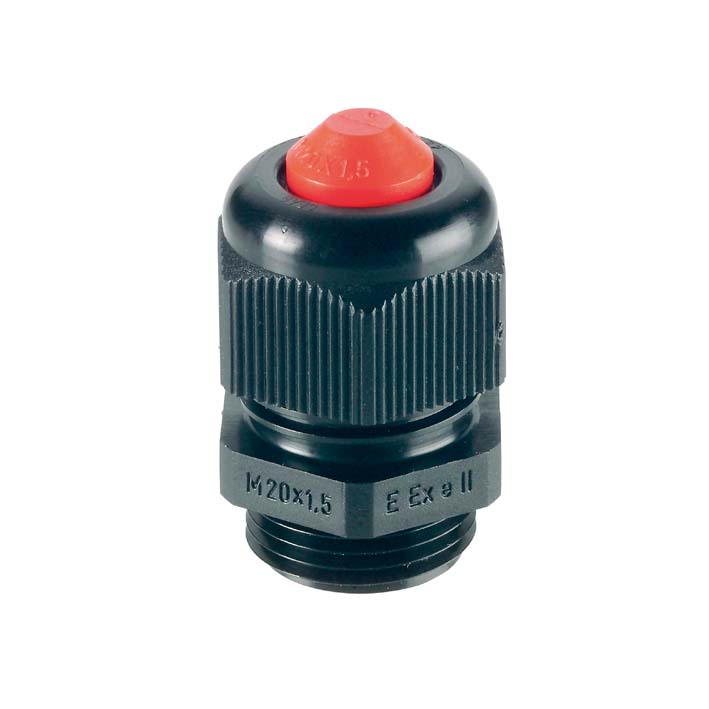

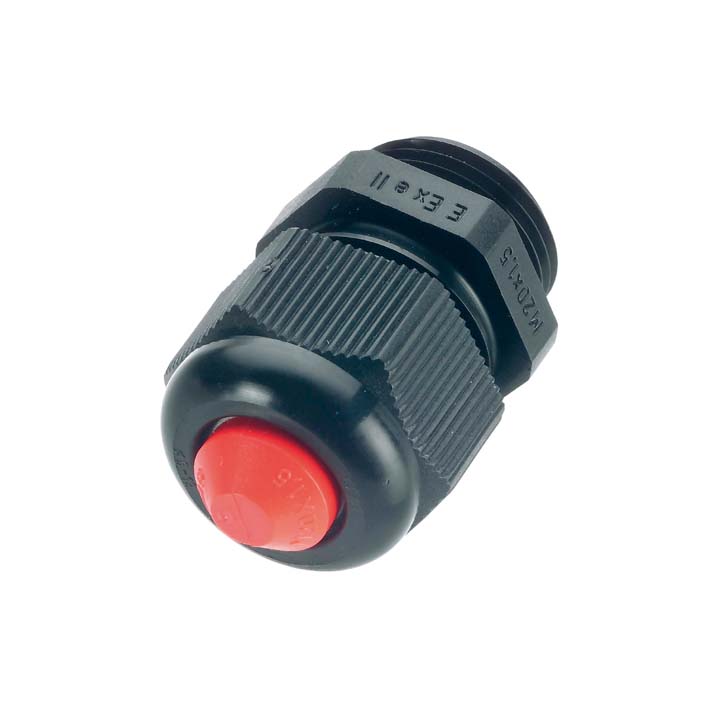

Protective closure for uninstalled "PERFECT" Ex-cable glands
- E-14 675 48-56
- E-14 675 59-67
- E-14 675 70-78
- E-14 675 81-89.

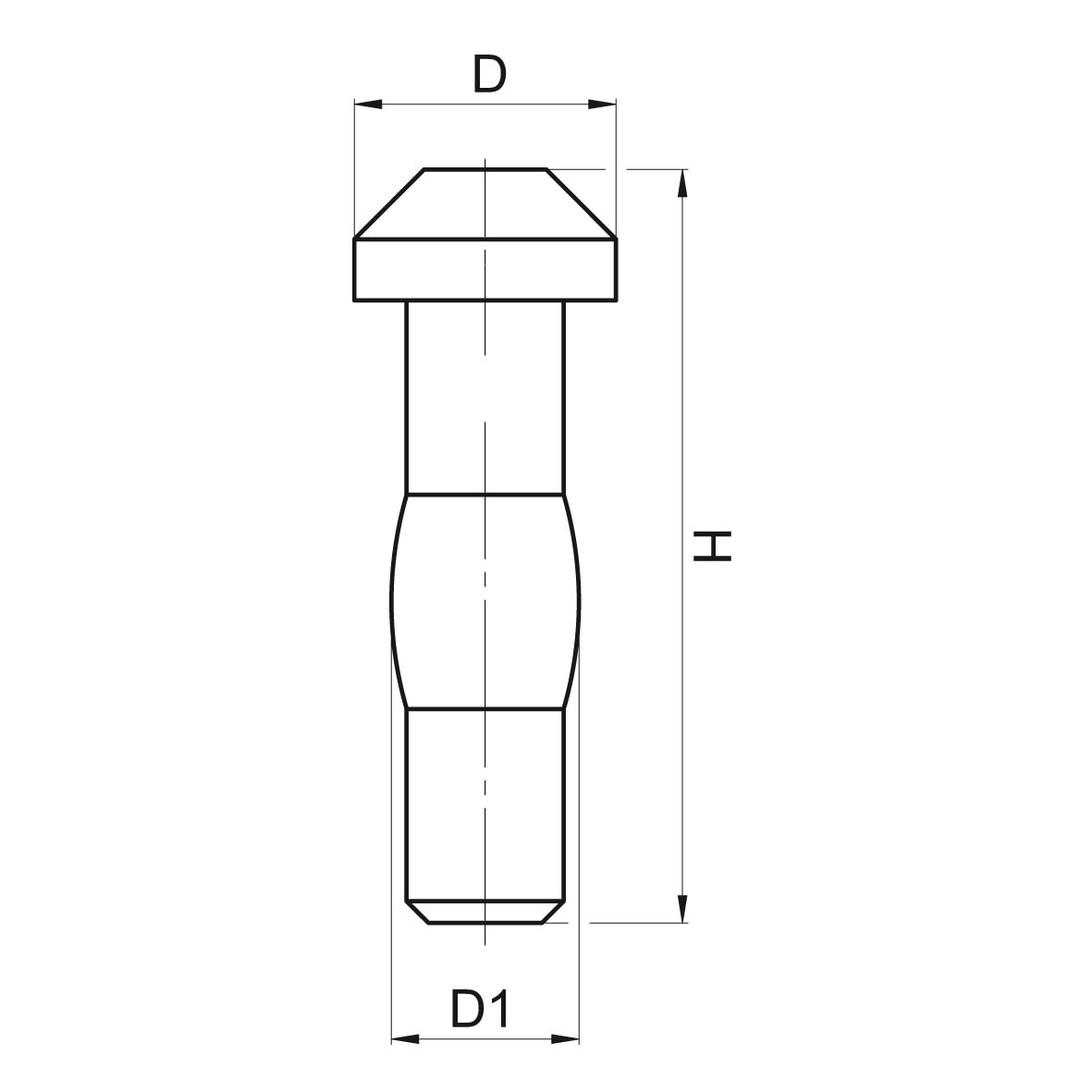

| E-number | For size | Ø D1 mm | D mm | H mm | Pcs/pack |
| 1465717 | M12x1,5 | 5 | 7 | 30.3 | 20 |
| 1467510 | M16x1,5 | 6 | 8 | 33 | 20 |
| 1467511 | M20x1,5 | 7 | 12 | 34.5 | 20 |
| 1467512 | M25x1,5 | 10 | 16 | 36 | 20 |
| 1467513 | M32x1,5 | 13 | 20 | 40 | 20 |
| 1467514 | M40x1,5 | 19 | 24 | 42 | 10 |
Material:
Polyamide PA6
Ingress protection:
IP66
Temperature range:
-55°C....+70°C
Colour:
Red
Test standard:
EN 60079-0:2012, IEC 60079-0:2011, EN 60079-7:2007, IEC 60079-7:2006, EN 60079-31:2009, IEC 60079-31:2008
Category / Zone:
2 G (1,2) 2 D (21,22)
Equipment group:
II
Type of protection:
Ex e IIC Gb Ex tb IIIC Db
EU-Type certificate:
PTB 99 ATEX 3101 X (M12 and M16) / PTB 99 ATEX 3128 X (M20 to M63)
IECEx certificate:
IECEx PTB 05.0004X, IECEx PTB 14.0027X
Halogen-Free:
Yes
