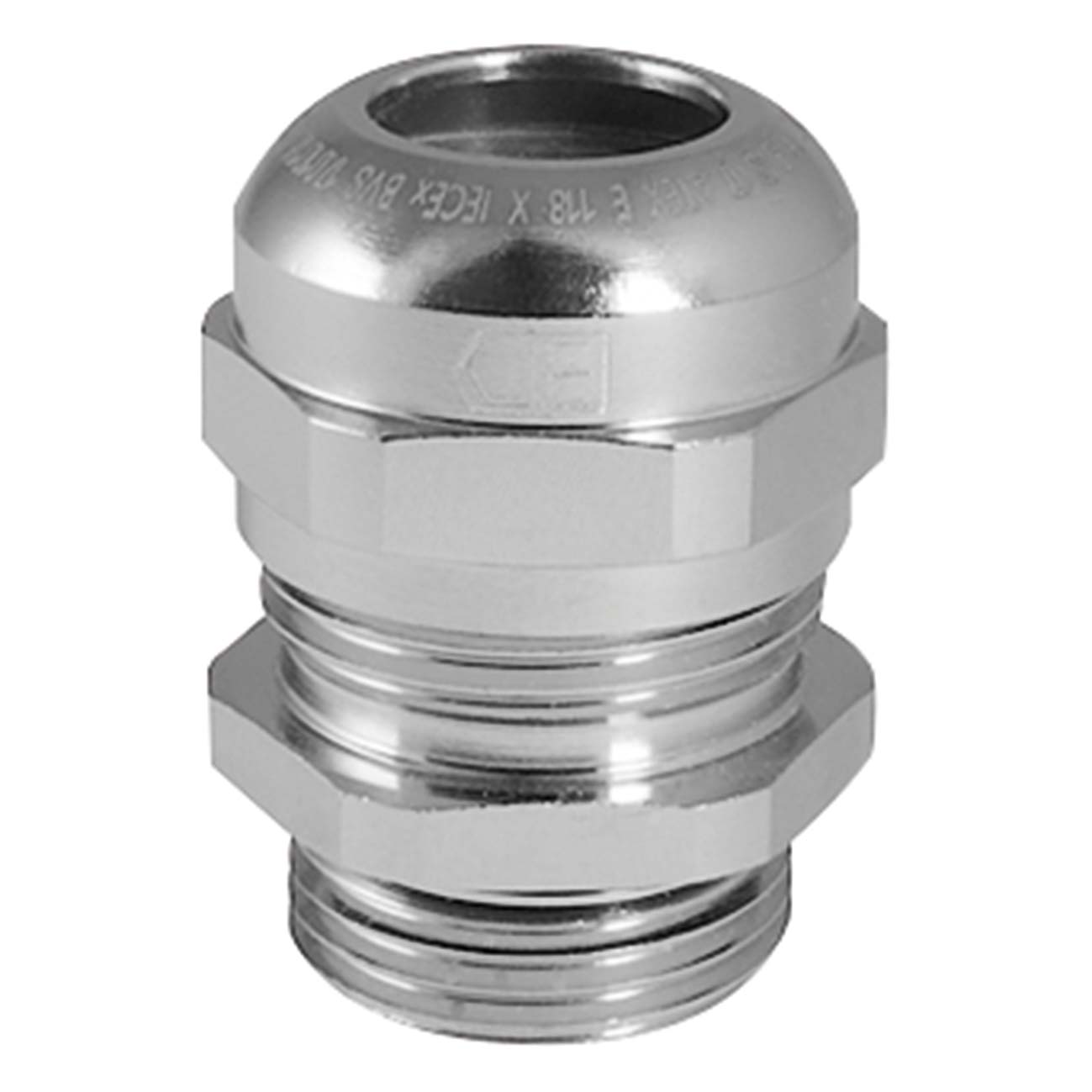

Cable Gland Brass IP66/68 Ex Metric
Ex-e for non armoured cable
- Integrated anchorage
- Wide sealing and clamping range
- Easy-To-Install
- M12x1,5 (1)
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)
- 3 - 7 (1)
- 6 - 10 (1)
- 8 - 13 (1)
- 10 - 17 (1)
- 11 - 21 (1)
- 16 - 28 (1)
- 21 - 35 (1)
- 34 - 48 (1)

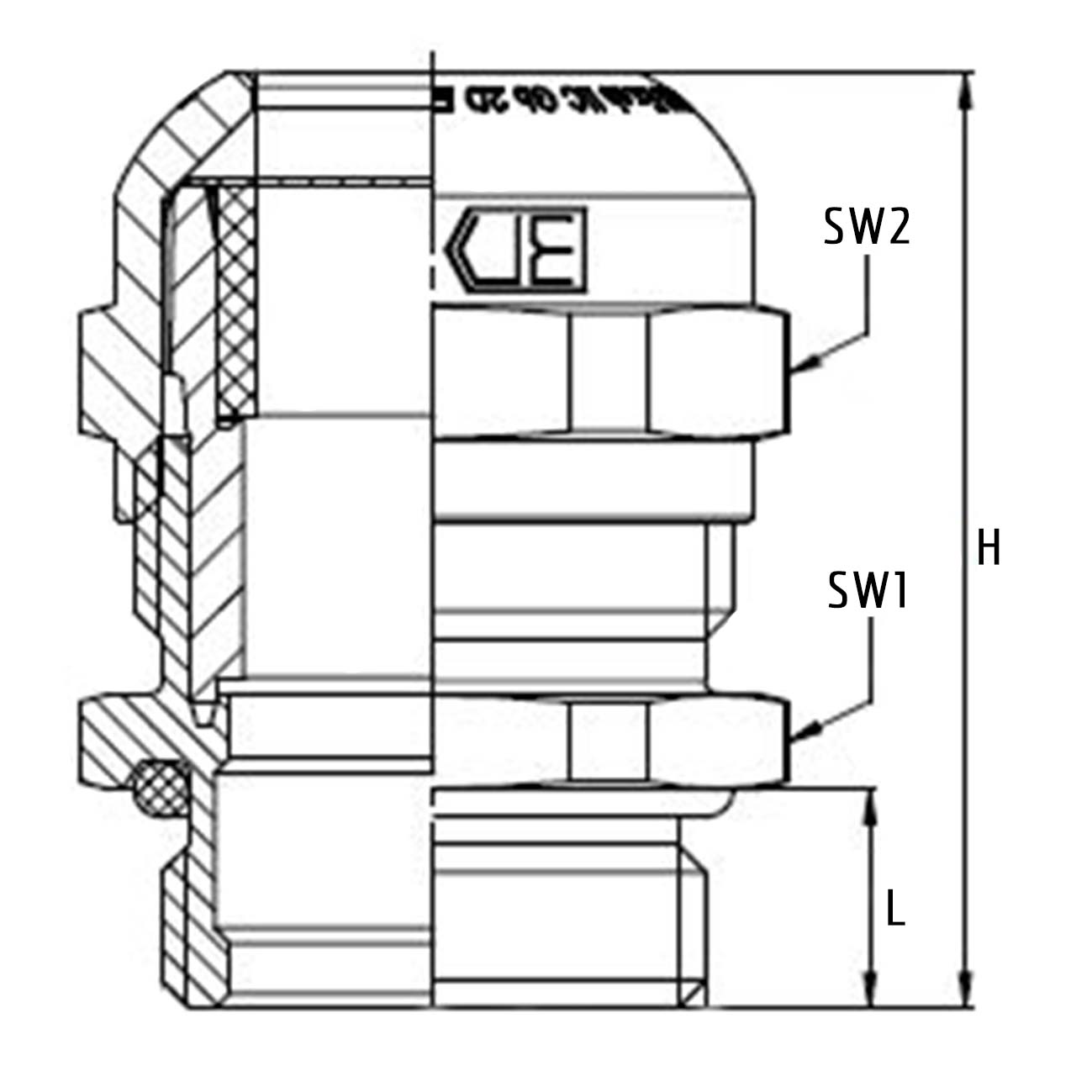

| E-number | Article no. | Connection thread | For cable Ø mm | L mm | H mm | SW1 mm | SW2 mm | Pcs/pack |
| 1467641 | K100-1012-00-EX | M12x1,5 | 3 - 7 | 6.5 | 28 | 16 | 16 | 100 |
| 1467642 | K100-1016-00-EX | M16x1,5 | 6 - 10 | 7 | 33 | 20 | 20 | 100 |
| 1467643 | K100-1020-00-EX | M20x1,5 | 8 - 13 | 8 | 34 | 24 | 24 | 100 |
| 1467644 | K100-1025-00-EX | M25x1,5 | 10 - 17 | 8 | 37.5 | 29 | 29 | 50 |
| 1467645 | K100-1032-00-EX | M32x1,5 | 11 - 21 | 9 | 47.5 | 36 | 36 | 25 |
| 1467646 | K100-1040-00-EX | M40x1,5 | 16 - 28 | 9 | 53.5 | 45 | 45 | 10 |
| 1467647 | K100-1050-00-EX | M50x1,5 | 21 - 35 | 10 | 62 | 55 | 55 | 5 |
| 1467648 | K100-1063-00-EX | M63x1,5 | 34 - 48 | 10 | 63 | 68 | 68 | 5 |
Material:
Brass nickel plated (CuZn39Pb3)
Lamellar insert:
Polyamide PA6
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
Dust cap:
Polyethylene PE-LD
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP66, IP68 - 10 bar (30 min.)
Temperature range:
-40°C....+85°C
Colour:
Brass nickel plated
Test standard:
EN 60079-0:2012, IEC 60079-0:2017, EN 60079-7:2015, IEC 60079-7:2015, EN 60079-31:2014, IEC 60079-31:2013
Category / Zone:
2 G (1,2) 2 D (21,22)
Equipment group:
II
Type of protection:
Ex eb IIC Gb Ex tb IIIC Db
EU-Type certificate:
BVS 17 ATEX A 118 X
IECEx certificate:
IECEx BVS 17.0101X
