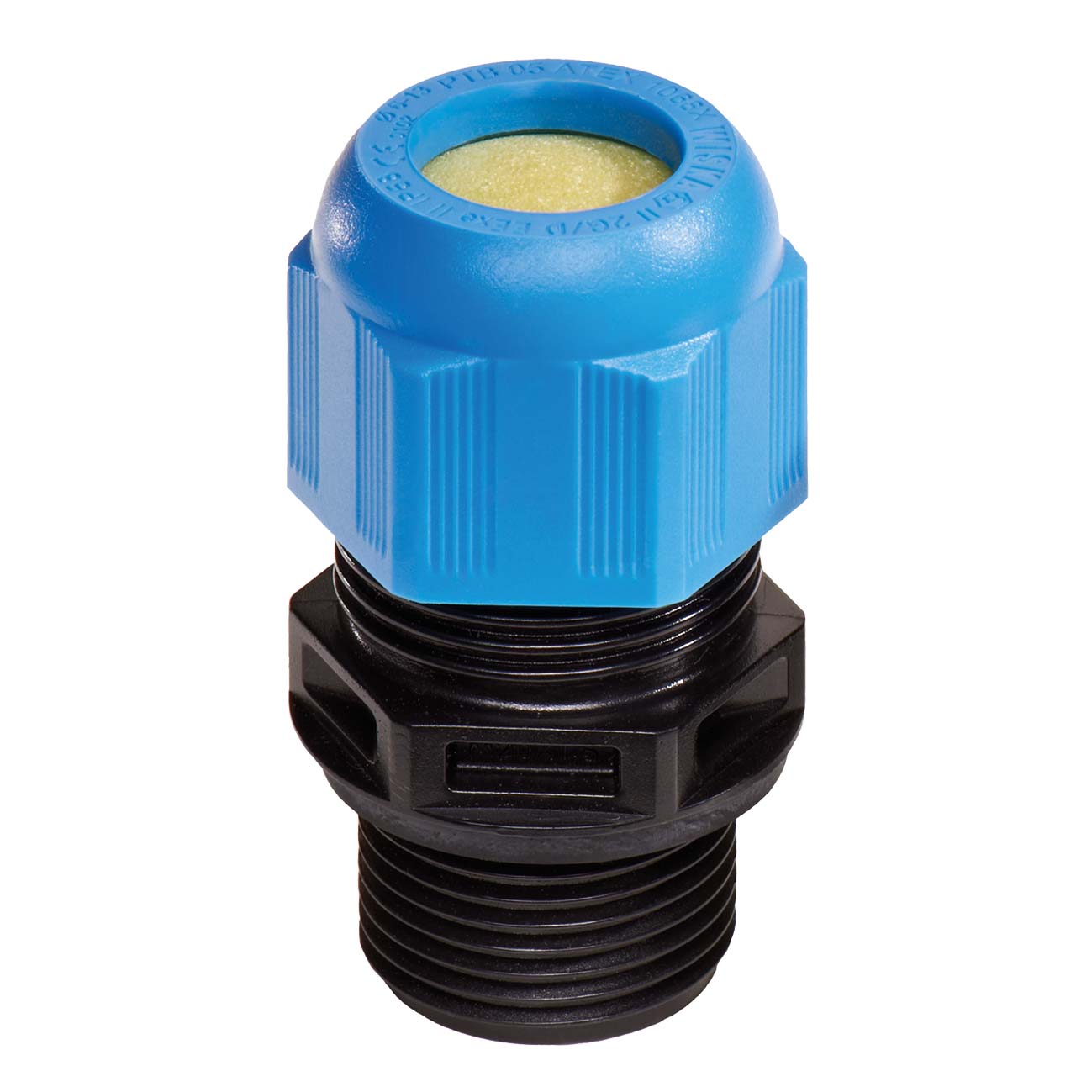

Cable Gland Polyamide IP66/68 Ex e long thread Metric
Ex-i for non armoured cable
Incl. connection thread gasket
- M12x1,5 (1)
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)
- 3 - 6 (1)
- 4,5 - 9 (1)
- 7 - 13 (1)
- 10 - 17 (1)
- 13 - 21 (1)
- 17 - 28 (1)
- 23 - 35 (1)
- 34 - 48 (1)
| E-number | Article no. | Connection thread | For cable Ø mm | L mm | H mm | SW mm | E mm | Pcs/pack |
| 1467701 | ESKE/1-L-I 12 | M12x1,5 | 3 - 6 | 15 | 40 | 16 | 18 | 50 |
| 1467702 | ESKE/1-L-I 16 | M16x1,5 | 4,5 - 9 | 15 | 43 | 20 | 22 | 50 |
| 1467703 | ESKE/1-L-I 20 | M20x1,5 | 7 - 13 | 15 | 48 | 24 | 27 | 50 |
| 1467704 | ESKE/1-L-I 25 | M25x1,5 | 10 - 17 | 15 | 51 | 29 | 32 | 50 |
| 1467705 | ESKE/1-L-I 32 | M32x1,5 | 13 - 21 | 15 | 53 | 36 | 40 | 25 |
| 1467706 | ESKE/1-L-I 40 | M40x1,5 | 17 - 28 | 18 | 71 | 46 | 51 | 10 |
| 1467707 | ESKE/1-L-I 50 | M50x1,5 | 23 - 35 | 18 | 76 | 55 | 61 | 4 |
| 1467708 | ESKE/1-L-I 63 | M63x1,5 | 34 - 48 | 18 | 81 | 68 | 75 | 1 |
Material:
Polyamide
Sealing ring:
EPDM
Sealing ring connection thread:
EPDM
Ingress protection:
IP66, IP68 - 5 bar (30 min.)
Temperature range:
-40°C....+75°C (M12 +15°C....+65°C)
Colour:
Blue RAL 5012/Black RAL 9005
Category / Zone:
2 G (1,2) 2 D (21,22)
Equipment group:
II
Type of protection:
Ex eb, Ex tb
Certifications:
IECEx, ATEX
