- M12x1,5 (1)
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)

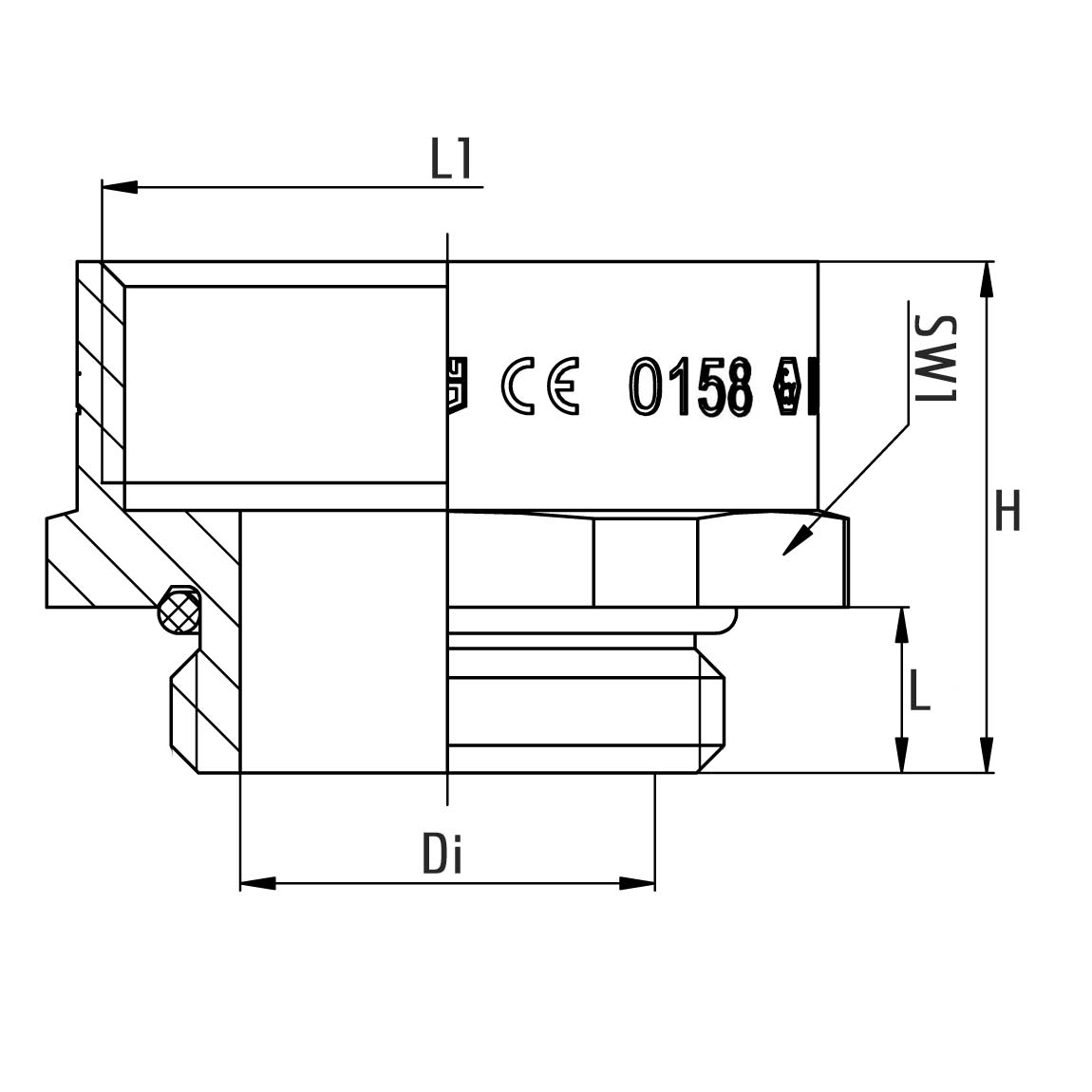

| E-number | Article no. | Connection thread | Internal thread | L mm | Di mm | H mm | SW1 mm | Pcs/pack |
| 1467671 | E102-11216-03-EX | M12x1,5 | M16x1,5 | 5 | 8 | 16 | 18 | 100 |
| 1467672 | E102-11620-03-EX | M16x1,5 | M20x1,5 | 5 | 12 | 16,5 | 22 | 100 |
| 1467673 | E102-12025-03-EX | M20x1,5 | M25x1,5 | 6 | 15 | 18,5 | 27 | 50 |
| 1467674 | E102-12532-03-EX | M25x1,5 | M32x1,5 | 7 | 21 | 20,5 | 34 | 25 |
| 1467675 | E102-13240-03-EX | M32x1,5 | M40x1,5 | 8 | 26 | 23,5 | 42 | 25 |
| 1467676 | E102-14050-03-EX | M40x1,5 | M50x1,5 | 8 | 34 | 30 | 52 | 10 |
| 1467677 | E102-15063-03-EX | M50x1,5 | M63x1,5 | 9 | 44 | 32,5 | 65 | 10 |

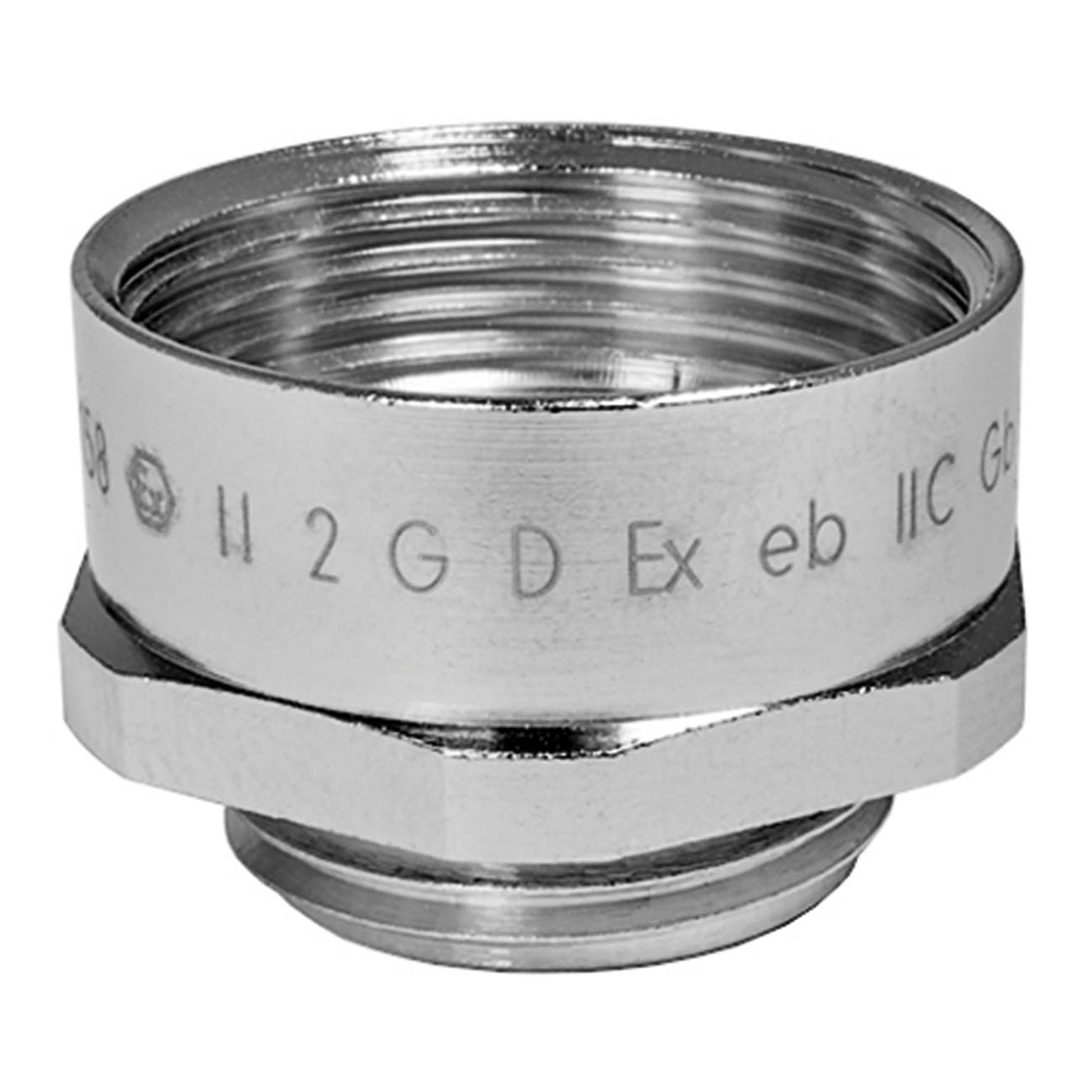

Material:
Brass nickel plated (CuZn39Pb3)
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP66, IP68 - 10 bar (30 min.)
Temperature range:
-40°C....+85°C
Colour:
Brass nickel plated
Test standard:
EN IEC 60079-0:2018, IEC 60079-0:2017, EN IEC 60079-7:2015+A1, IEC 60079-7:2015+A1, EN 60079-31:2014, IEC 60079-31:2013
Category / Zone:
2 G (1,2) 2 D (21,22)
Equipment group:
II
Type of protection:
Ex eb IIC Gb Ex tb IIIC Db
EU-Type certificate:
PTB 16 ATEX 1006
IECEx certificate:
IECEx PTB 16.0017
