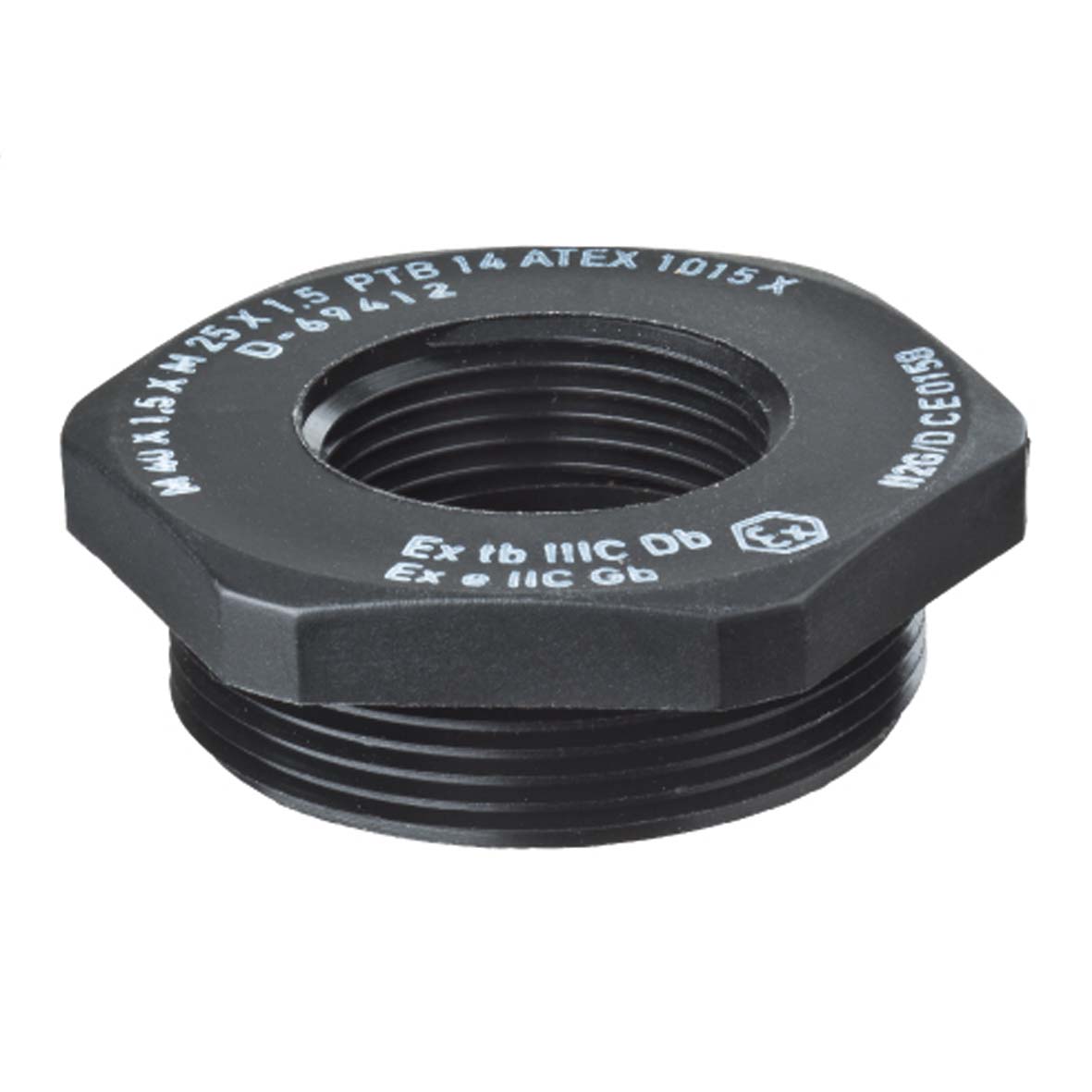

Reducing fitting Polyamide Ex e Metric - Metric
Reduction of threaded or clearance holes to smaller thread sizes.
The combination of more than one reduction to reduce the thread size is not acceptable.
- M16x1,5 (1)
- M20x1,5 (2)
- M25x1,5 (3)
- M32x1,5 (2)
- M40x1,5 (2)
- M50x1,5 (2)
- M63x1,5 (2)
- M12x1,5 (3)
- M16x1,5 (2)
- M20x1,5 (2)
- M25x1,5 (2)
- M32x1,5 (2)
- M40x1,5 (2)
- M50x1,5 (1)

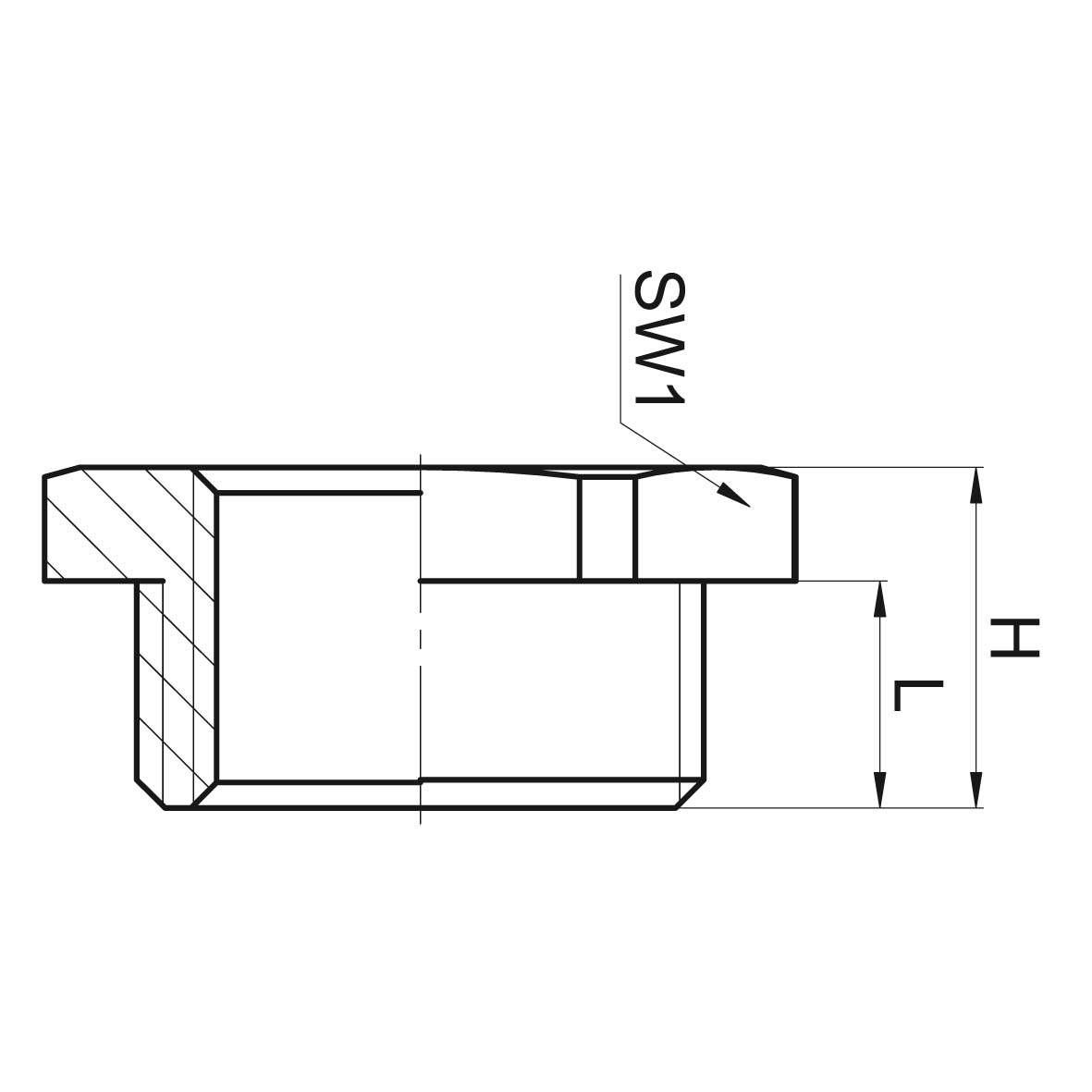

| E-number | Connection thread | Internal thread | L mm | H mm | SW1 mm | Pcs/pack |
| 1467481 | M16x1,5 | M12x1,5 | 8 | 12 | 24 | 20 |
| 1467482 | M20x1,5 | M12x1,5 | 8 | 12 | 24 | 20 |
| 1467483 | M20x1,5 | M16x1,5 | 8 | 12 | 24 | 20 |
| 1467484 | M25x1,5 | M12x1,5 | 8 | 14 | 29 | 20 |
| 1467485 | M25x1,5 | M16x1,5 | 8 | 14 | 29 | 10 |
| 1467486 | M25x1,5 | M20x1,5 | 8 | 14 | 29 | 20 |
| 1467489 | M32x1,5 | M20x1,5 | 10 | 16 | 36 | 20 |
| 1467490 | M32x1,5 | M25x1,5 | 10 | 16 | 36 | 20 |
| 1467493 | M40x1,5 | M25x1,5 | 10 | 16 | 46 | 10 |
| 1467494 | M40x1,5 | M32x1,5 | 10 | 16 | 46 | 10 |
| 1467497 | M50x1,5 | M32x1,5 | 12 | 18 | 55 | 10 |
| 1467498 | M50x1,5 | M40x1,5 | 12 | 18 | 55 | 10 |
| 1467501 | M63x1,5 | M40x1,5 | 12 | 18 | 68 | 5 |
| 1467502 | M63x1,5 | M50x1,5 | 12 | 18 | 68 | 5 |
Material:
Polyamide PA6
Ingress protection:
IP66
Temperature range:
-55°C....+70°C
Colour:
Black RAL 9005
Test standard:
EN 60079-0:2012, IEC 60079-0:2011, EN 60079-7:2007, IEC 60079-7:2006, EN 60079-31:2009, IEC 60079-31:2008
Category / Zone:
2 G (1,2) 2 D (21,22)
Equipment group:
II
Type of protection:
Ex e IIC Gb Ex tb IIIC Db
EU-Type certificate:
PTB 99 ATEX 3128X, PTB 14 ATEX 1015 X
Halogen-Free:
Yes
