- M12x1,5 (1)
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)

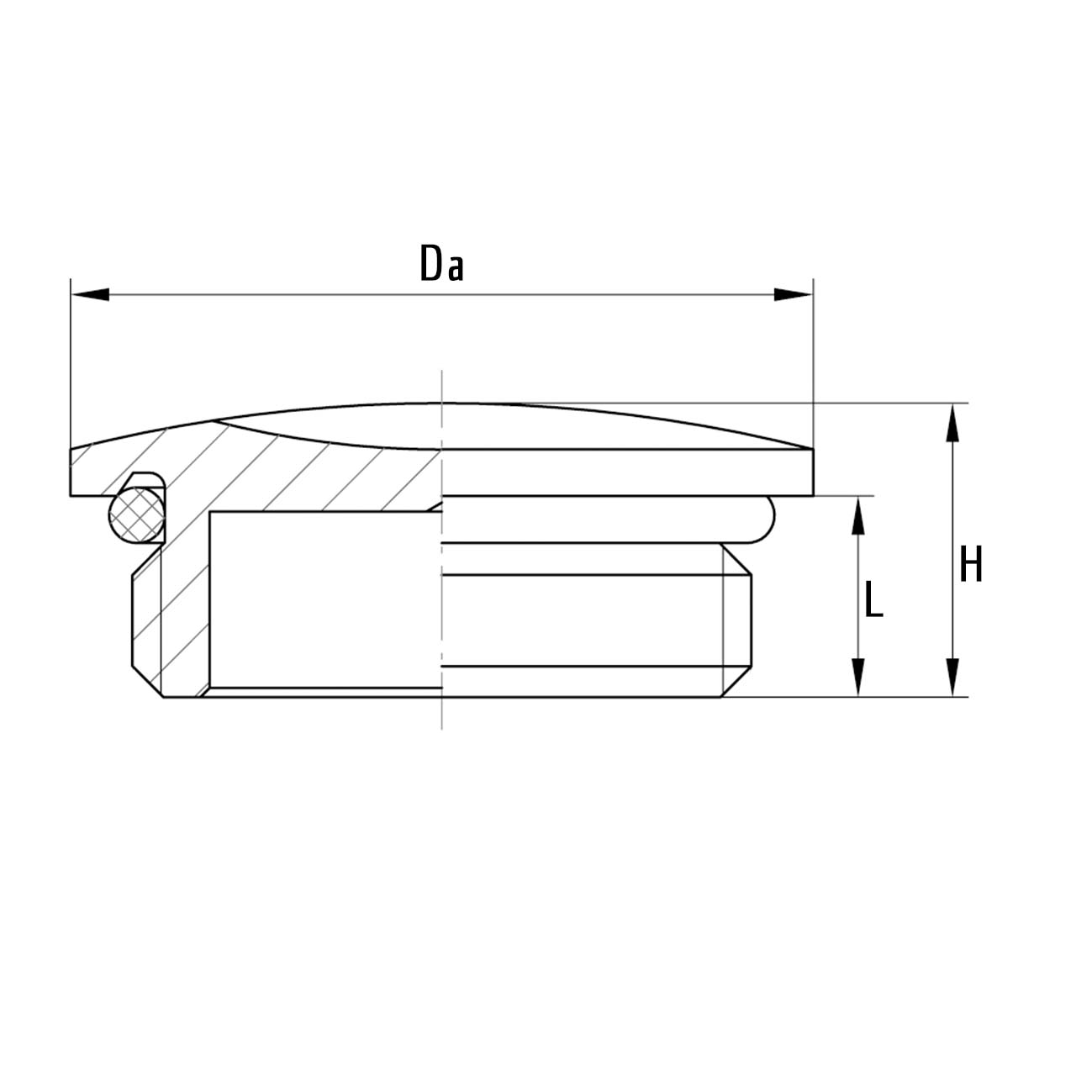

| E-number | Article no. | Connection thread | L mm | Da mm | H mm | Pcs/pack |
| 1467651 | V102-1012-03-EX | M12x1,5 | 5 | 16 | 8 | 100 |
| 1467652 | V102-1016-03-EX | M16x1,5 | 6 | 20 | 9 | 100 |
| 1467653 | V102-1020-03-EX | M20x1,5 | 6.5 | 24 | 9,5 | 100 |
| 1467654 | V102-1025-03-EX | M25x1,5 | 7 | 28 | 11 | 100 |
| 1467655 | V102-1032-03-EX | M32x1,5 | 8 | 35 | 12 | 50 |
| 1467656 | V102-1040-03-EX | M40x1,5 | 8 | 45 | 12 | 50 |
| 1467657 | V102-1050-03-EX | M50x1,5 | 9 | 55 | 15 | 25 |
| 1467658 | V102-1063-03-EX | M63x1,5 | 10 | 68 | 16 | 10 |
Material:
Brass nickel plated (CuZn39Pb3)
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP66, IP68 - 10 bar (30 min.)
Temperature range:
-40°C....+85°C
Colour:
Brass nickel plated
Test standard:
EN IEC 60079-0:2018, IEC 60079-0:2017, EN IEC 60079-7:2015+A1, IEC 60079-7:2015+A1, EN 60079-31:2014, IEC 60079-31:2013
Category / Zone:
2 G (1,2) 2 D (21,22)
Equipment group:
II
Type of protection:
Ex eb IIC Gb Ex tb IIIC Db
EU-Type certificate:
PTB 16 ATEX 1006
IECEx certificate:
IECEx PTB 16.0017
