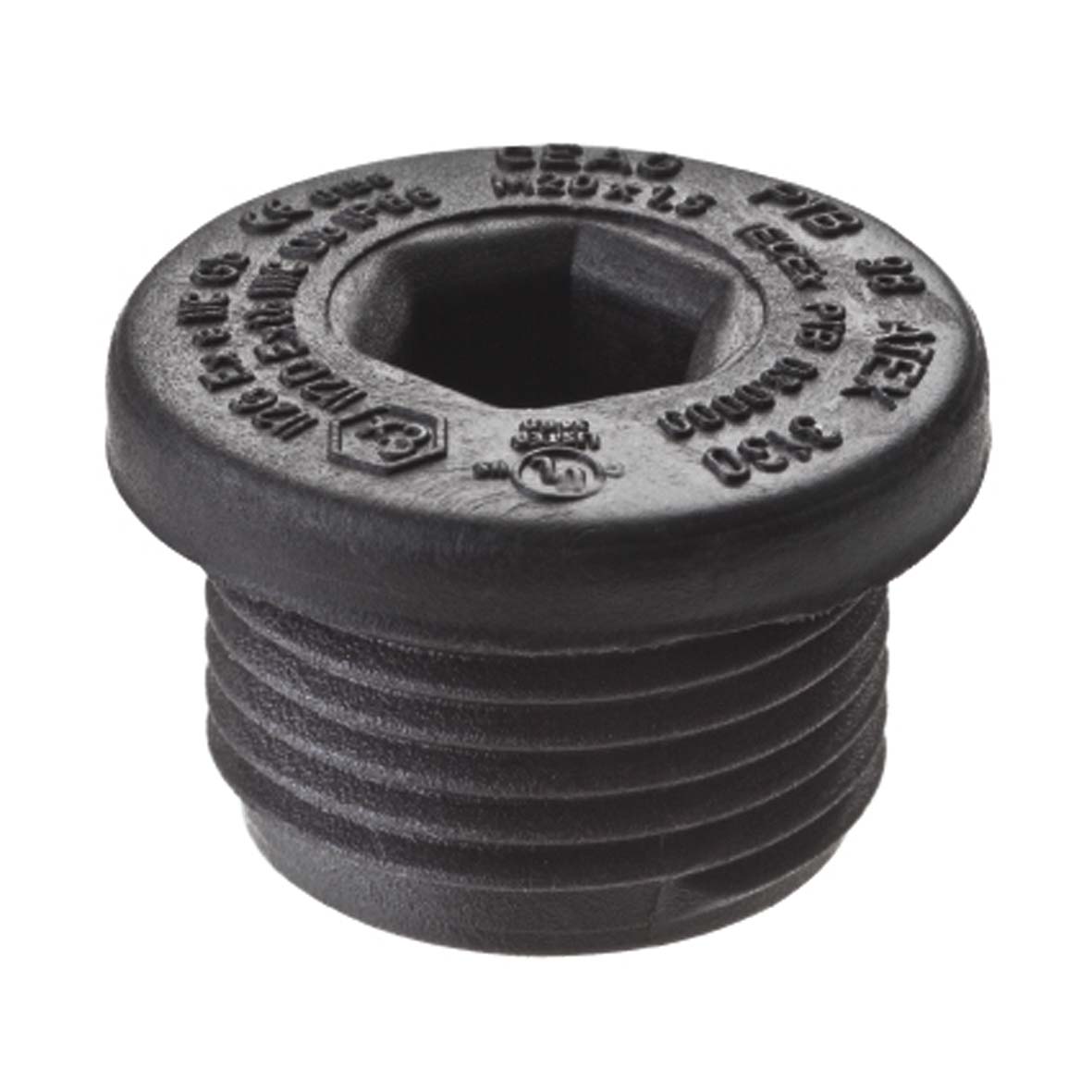

Screw plug Polyamide IP66 Ex e Metric
For secure sealing of unused threaded or clearance holes.
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)

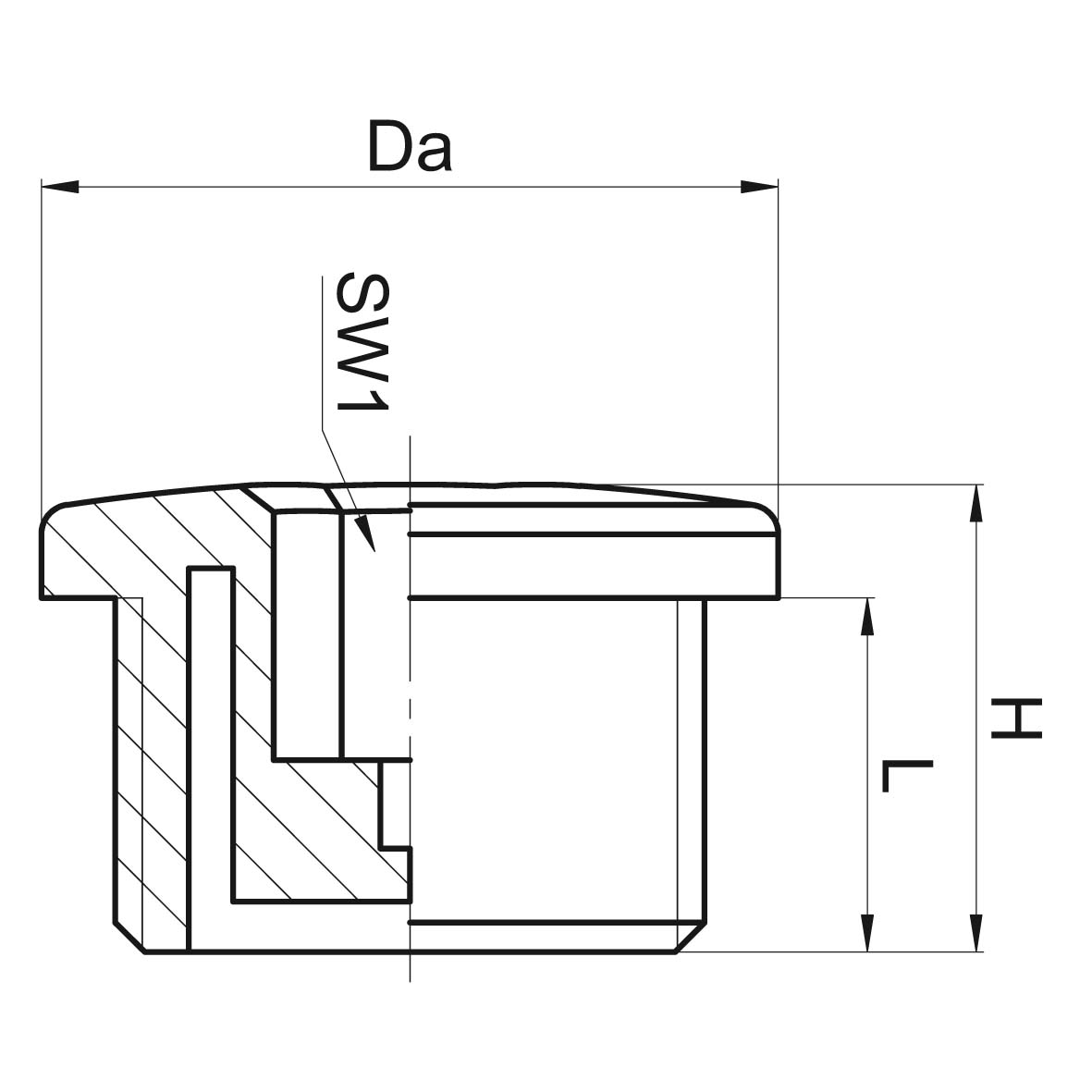

| E-number | Connection thread | L mm | Da mm | H mm | SW1 mm | Pcs/pack |
| 1467503 | M16x1,5 | 11 | 21 | 15 | 8 | 20 |
| 1467504 | M20x1,5 | 12 | 25 | 16 | 8 | 20 |
| 1467505 | M25x1,5 | 12 | 30 | 16 | 8 | 20 |
| 1467506 | M32x1,5 | 14 | 37 | 19.5 | 8 | 10 |
| 1467507 | M40x1,5 | 14 | 45 | 19.5 | 8 | 10 |
| 1467508 | M50x1,5 | 15 | 55 | 20.5 | 8 | 5 |
Material:
Polyamide PA66
Ingress protection:
IP66
Temperature range:
-55°C....+95°C
Colour:
Black RAL 9005
Test standard:
EN 60079-0:2012, IEC 60079-0:2011, EN 60079-7:2007, IEC 60079-7:2006, EN 60079-31:2009, IEC 60079-31:2008
Category / Zone:
2 G (1,2) 2 D (21,22)
Equipment group:
II
Type of protection:
Ex e IIC Gb Ex tb IIIC Db
EU-Type certificate:
PTB 98 ATEX 3130
Halogen-Free:
Yes
