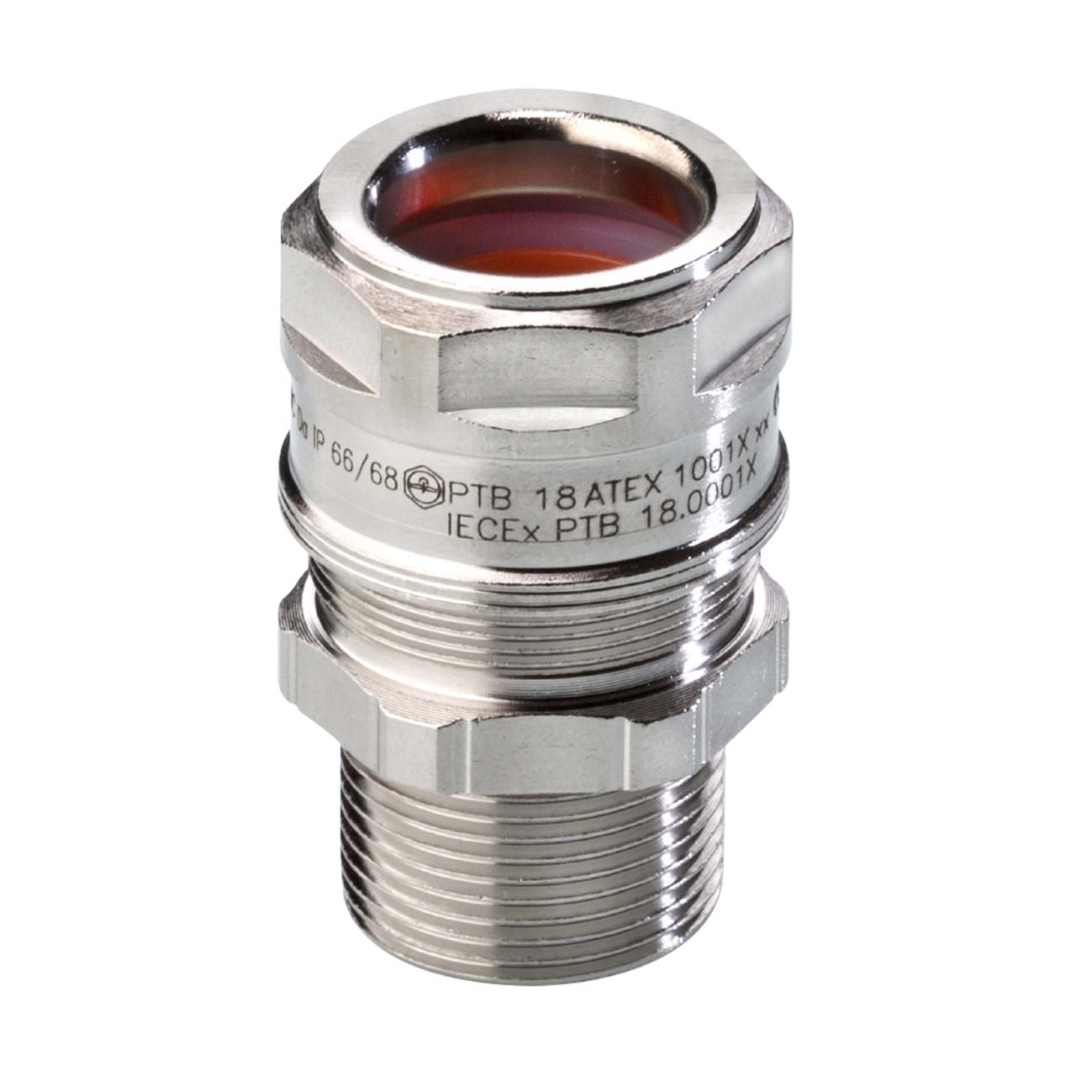

Cable Gland Brass LevelEx Ex-d/Ex-e Metric
Ex-d/Ex-e for non armoured cable

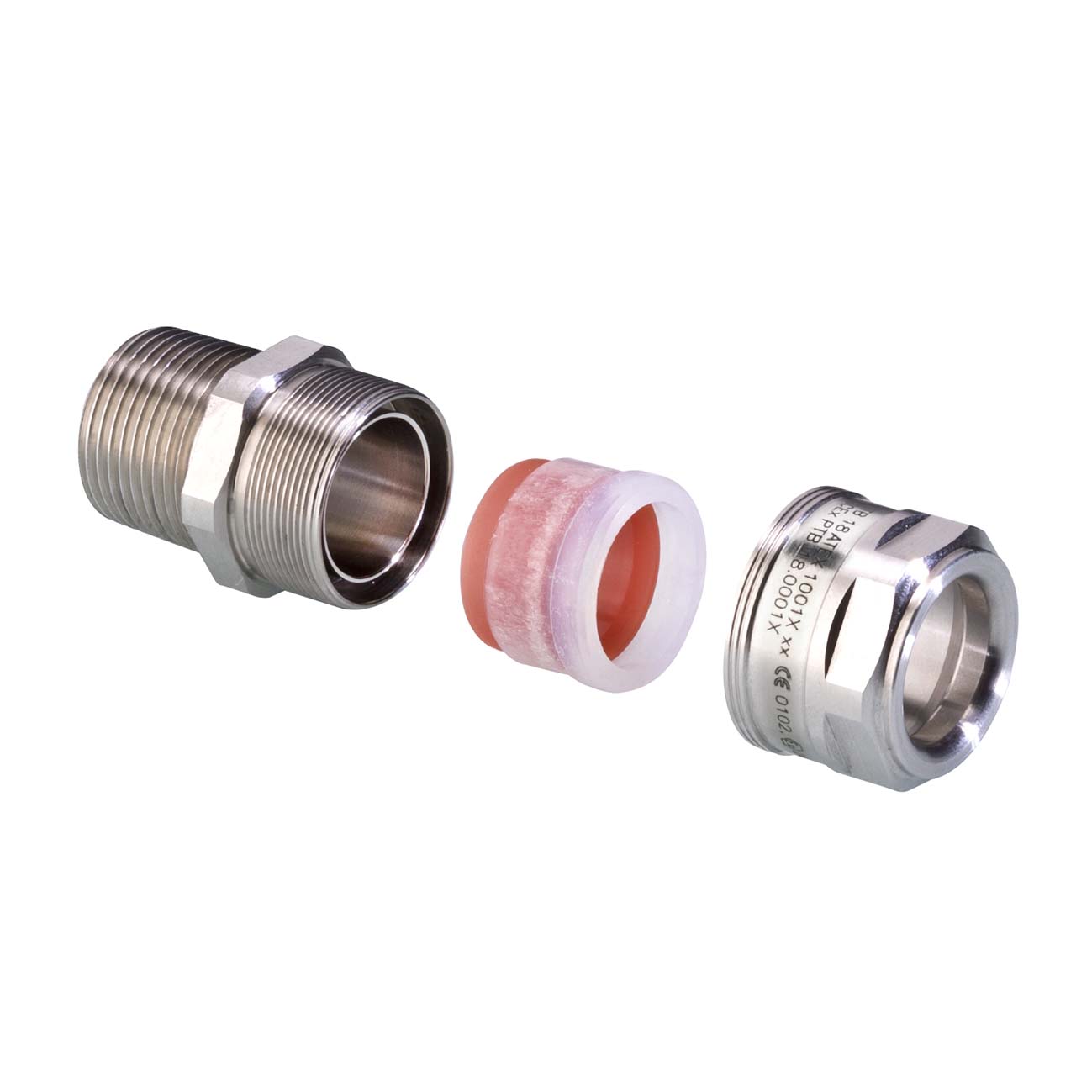

The cable gland LevelEx® provides a single pull resistant seal on the outer sheath of any cable.
It maintains Flameproof “Ex-d” and Increased Safety “Ex-e” methods of explosion protection, IP 66 + IP 68 (10 bar, 1 hour).
An integral o-ring seal is fitted to the connection threads as standard.
- Compact design
- IP66 and IP68 (10 bar, 1hour)
- Quick and easy installation
Material:
Brass nickel plated (CuZn39Pb3)
Sealing ring:
Silicone
Ingress protection:
IP66 + IP68 (10 bar, 1h)
Temperature range:
-60°C....+130°C
Standards:
Compliance:
EN60079-0:2012 + A11:2013, EN 60079-1:2014
Standard:
EN 60079-7:2015, EN 60079-31:2014
IEC 60079-0:2017, IEC 60079-1:2014, IEC 60079-7:2015, IEC 60079-31:2013
EN60079-0:2012 + A11:2013, EN 60079-1:2014
Standard:
EN 60079-7:2015, EN 60079-31:2014
IEC 60079-0:2017, IEC 60079-1:2014, IEC 60079-7:2015, IEC 60079-31:2013
Certifications:
Designation gas: II 2G Ex db eb IIC Gb
Designation dust: II 2D Ex ta IIIC Da IP 66/68
Certificate No.
ATEX: PTB 18 ATEX 1001X xx CE 0102
IECEx: IECEx PTB 18.0001X
EAC: RU C-DE.AA71.B.00390
Designation dust: II 2D Ex ta IIIC Da IP 66/68
Certificate No.
ATEX: PTB 18 ATEX 1001X xx CE 0102
IECEx: IECEx PTB 18.0001X
EAC: RU C-DE.AA71.B.00390
