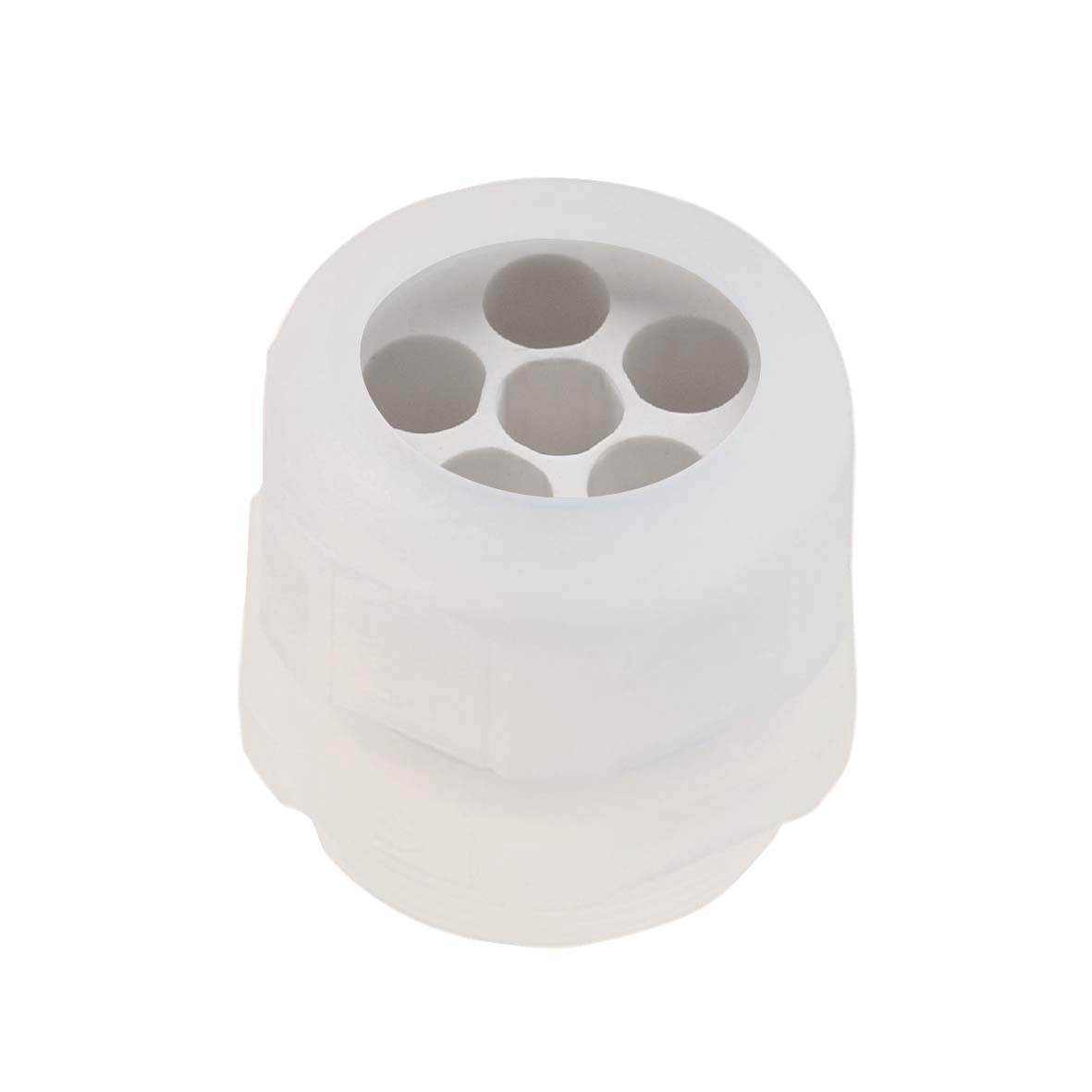

Cable Gland PVDF UNI Multiple PG

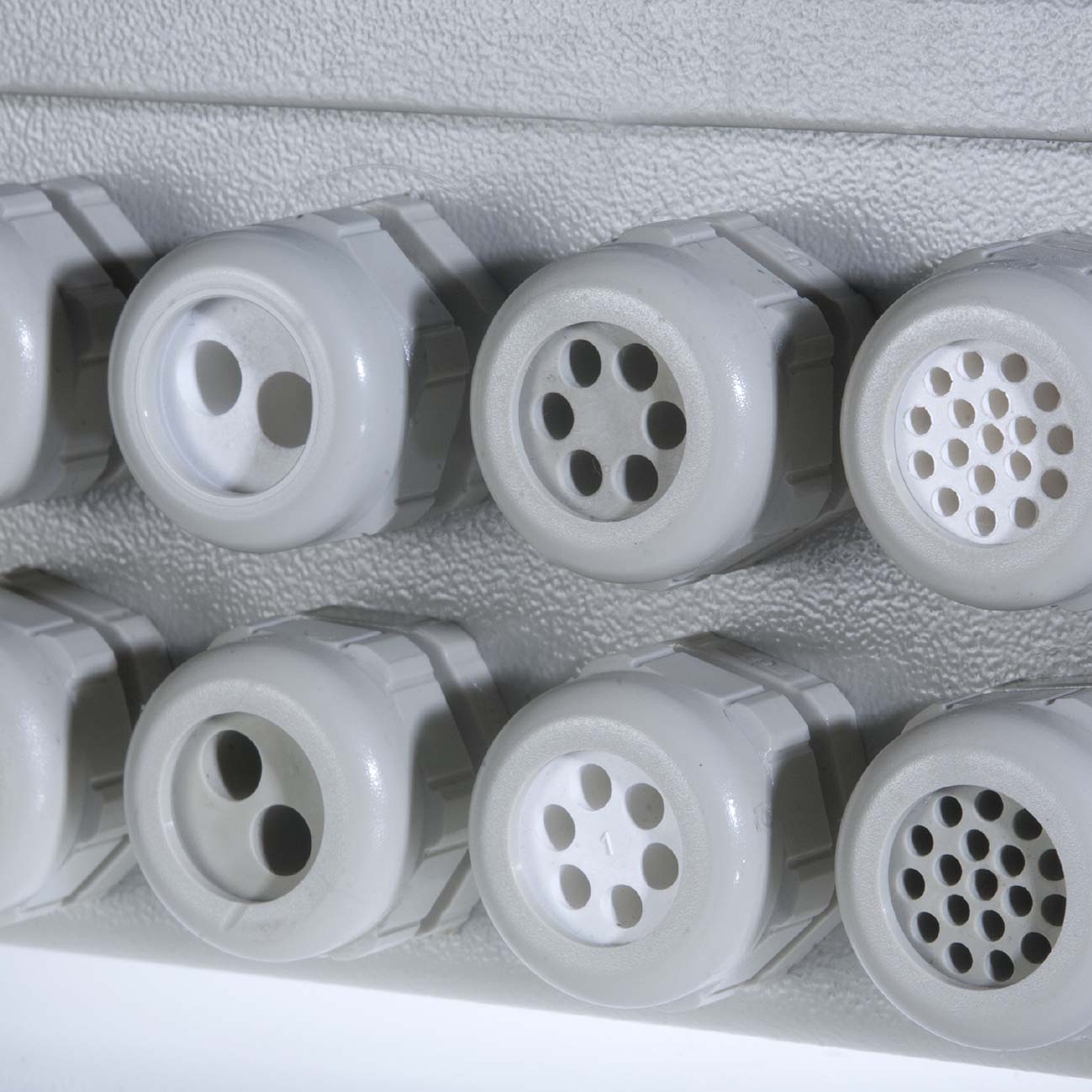

UNI Multiple - Cable Glands for multiple cables

The UNI Multiple range offers a large variety of combinations for sealing multiple cables of the same or different diameters in the same cable gland.

UNI Multiple achives protection class IP65, when the difference between the cable diameter and borehole in the sealing insert is less than 10%. Should the values be the same, IP68 (up to 10bar) can be achived) The tightness and strain relief depend on the cable used.

Solutions for flat cables, special cables (ASi-bus for example), ready-made cables, customer specific patterns, alternative materials are also available.

Create product sheet (PDF)

Questions/Order

E-number	Article no.	Connection thread	For cable Ø mm	L mm	H mm	SW1 mm	SW2 mm	E1 mm	E2 mm	Pcs/pack
N9415850	149YM1X3	PG7/12,5	1x3mm	8	31	15	15	16.5	16.5	50
N9415851	149YM1X4	PG7/12,5	1x4mm	8	31	15	15	16.5	16.5	50
N9415852	149YM1X5	PG7/12,5	1x5mm	8	31	15	15	16.5	16.5	50
149YM2X1,4	149YM2X1,4	PG7/12,5	2x1,4mm	8	31	15	15	16.5	16.5	50
149YM4X1,7	149YM4X1,7	PG7/12,5	4x1,7mm	8	31	15	15	16.5	16.5	50
14950YM1X5	14950YM1X5*	PG7/12,5	1x5mm	8	31	19	19	21.2	21.2	50
14950YM2X3	14950YM2X3*	PG7/12,5	2x3mm	8	31	19	19	21.2	21.2	50
14950YM2X4	14950YM2X4*	PG7/12,5	2x4mm	8	31	19	19	21.2	21.2	50
14950YM3X3	14950YM3X3*	PG7/12,5	3x3mm	8	31	19	19	21.2	21.2	50
150YM1X1,5S/1X4	150YM1X1,5S/1X4	PG9/15,2	1x1,5mm, 1x4mm	8	32	19	19	21.2	21.2	50
N9415856	150YM1X3	PG9/15,2	1x3mm	8	32	19	19	21.2	21.2	50
N9415857	150YM1X4	PG9/15,2	1x4mm	8	32	19	19	21.2	21.2	50
N9415858	150YM1X5	PG9/15,2	1x5mm	8	32	19	19	21.2	21.2	50
N9415859	150YM2X1,2	PG9/15,2	2x1,2mm	8	32	19	19	21.2	21.2	50
150YM2X3	150YM2X3	PG9/15,2	2x3mm	8	32	19	19	21.2	21.2	50
N9415861	150YM2X4	PG9/15,2	2x4mm	8	32	19	19	21.2	21.2	50
150YM3X3	150YM3X3	PG9/15,2	3x3mm	8	32	19	19	21.2	21.2	50
150YM4X1,4	150YM4X1,4	PG9/15,2	4x1,4mm	8	32	19	19	21.2	21.2	50
N9415865	150YM4X3	PG9/15,2	4x3mm	8	32	19	19	21.2	21.2	50
150YM4X3,3	150YM4X3,3	PG9/15,2	4x3,3mm	8	32	19	19	21.2	21.2	50
15051YM1X2/2X4	15051YM1X2/2X4*	PG9/15,2	1x2mm, 2x4mm	8	31	22	22	24.5	24.5	50
15051YM1X4/1X6	15051YM1X4/1X6*	PG9/15,2	1x4mm, 1x6mm	8	31	22	22	24.5	24.5	50
15052YM1X4,7/1X6,4	15052YM1X4,7/1X6,4*	PG9/15,2	1x4,7mm, 1x6,4mm	8.5	34.5	24	24	26.5	26.5	50
15052YM2X3	15052YM2X3*	PG9/15,2	2x3mm	8.5	34.5	24	24	26.5	26.5	50
15052YM2X4	15052YM2X4*	PG9/15,2	2x4mm	8.5	34.5	24	24	26.5	26.5	50
15052YM2X5	15052YM2X5*	PG9/15,2	2x5mm	8.5	34.5	24	24	26.5	26.5	50
15052YM2X6	15052YM2X6*	PG9/15,2	2x6mm	8.5	34.5	24	24	26.5	26.5	50
15052YM3X5,3	15052YM3X5,3*	PG9/15,2	3x5,3mm	8.5	34.5	24	24	26.5	26.5	50
15052YM4X4	15052YM4X4*	PG9/15,2	4x4mm	8.5	34.5	24	24	26.5	26.5	50
15052YM8X3	15052YM8X3*	PG9/15,2	8x3mm	8.5	34.5	24	24	26.5	26.5	50
151YM1X3	151YM1X3	PG11/18,6	1x3mm	8	32	22	22	24.5	24.5	50
151YM1X3/1X6	151YM1X3/1X6	PG11/18,6	1x3mm, 1x6mm	8	32	22	22	24.5	24.5	50
151YM1X4	151YM1X4	PG11/18,6	1x4mm	8	32	22	22	24.5	24.5	50
151YM1X5	151YM1X5	PG11/18,6	1x5mm	8	32	22	22	24.5	24.5	50
151YM2X2,3	151YM2X2,3	PG11/18,6	2x2,3mm	8	32	22	22	24.5	24.5	50
151YM2X3	151YM2X3	PG11/18,6	2x3mm	8	32	22	22	24.5	24.5	50
N9415906	151YM2X4	PG11/18,6	2x4mm	8	32	22	22	24.5	24.5	50
N9415907	151YM2X5	PG11/18,6	2x5mm	8	32	22	22	24.5	24.5	50
N9415908	151YM2X6	PG11/18,6	2x6mm	8	32	22	22	24.5	24.5	50
151YM3X3	151YM3X3	PG11/18,6	3x3mm	8	32	22	22	24.5	24.5	50
N9415911	151YM3X4	PG11/18,6	3x4mm	8	32	22	22	24.5	24.5	50
151YM4X1,5	151YM4X1,5	PG11/18,6	4x1,5mm	8	32	22	22	24.5	24.5	50
151YM4X2,5/1X3,5	151YM4X2,5/1X3,5	PG11/18,6	4x2,5mm, 1x3,5mm	8	32	22	22	24.5	24.5	50
151YM5X2,5	151YM5X2,5	PG11/18,6	5x2,5mm	8	32	22	22	24.5	24.5	50
151YM5X3	151YM5X3	PG11/18,6	5x3mm	8	32	22	22	24.5	24.5	50
N9415915	151YM5X3,5	PG11/18,6	5x3,5mm	8	32	22	22	24.5	24.5	50
151YM6X2	151YM6X2	PG11/18,6	6x2mm	8	32	22	22	24.5	24.5	50
151YM6X2,5	151YM6X2,5	PG11/18,6	6x2,5mm	8	32	22	22	24.5	24.5	50
151YM7X1,5	151YM7X1,5	PG11/18,6	7x1,5mm	8	32	22	22	24.5	24.5	50
151YM9X1,5	151YM9X1,5	PG11/18,6	9x1,5mm	8	32	22	22	24.5	24.5	50
15152YM2X6	15152YM2X6*	PG11/18,6	2x6mm	8	34	24	24	26.5	26.5	50
15152YM3X4	15152YM3X4*	PG11/18,6	3x4mm	8	34	24	24	26.5	26.5	50
15152YM3X5,3	15152YM3X5,3*	PG11/18,6	3x5,3mm	8	34	24	24	26.5	26.5	50
N9415928	15152YM4X4*	PG11/18,6	4x4mm	8	34	24	24	26.5	26.5	50
N9415929	15152YM8X3*	PG11/18,6	8x3mm	8	34	24	24	26.5	26.5	50
152YM1X2/3X3	152YM1X2/3X3	PG13,5/20,4	1x2mm, 3x3mm	9	35	24	24	26.5	26.5	50
152YM1X2,5	152YM1X2,5	PG13,5/20,4	1x2,5mm	9	35	24	24	26.5	26.5	50
152YM1X3	152YM1X3	PG13,5/20,4	1x3mm	9	35	24	24	26.5	26.5	50
152YM1X3/2X6	152YM1X3/2X6	PG13,5/20,4	1x3mm, 2x6mm	9	35	24	24	26.5	26.5	50
152YM1X3,5/1X6	152YM1X3,5/1X6	PG13,5/20,4	1x3,5mm, 1x6mm	9	35	24	24	26.5	26.5	50
152YM1X3,5/2X4,5	152YM1X3,5/2X4,5	PG13,5/20,4	1x3,5mm, 2x4,5mm	9	35	24	24	26.5	26.5	50
N9415936	152YM1X4	PG13,5/20,4	1x4mm	9	35	24	24	26.5	26.5	50
152YM1X4,7/1X6,4	152YM1X4,7/1X6,4	PG13,5/20,4	1x4,7mm, 1x6,4mm	9	35	24	24	26.5	26.5	50
152YM1X5	152YM1X5	PG13,5/20,4	1x5mm	9	35	24	24	26.5	26.5	50
152YM1X8S	152YM1X8S	PG13,5/20,4	1x8mm	9	35	24	24	26.5	26.5	50
N9415940	152YM2X3	PG13,5/20,4	2x3mm	9	35	24	24	26.5	26.5	50
152YM2X4/1X5,5	152YM2X4/1X5,5	PG13,5/20,4	2x4mm, 1x5,5mm	9	35	24	24	26.5	26.5	50
152YM2X5	152YM2X5	PG13,5/20,4	2x5mm	9	35	24	24	26.5	26.5	50
152YM2X5/1X5,5	152YM2X5/1X5,5	PG13,5/20,4	2x5mm, 1x5,5mm	9	35	24	24	26.5	26.5	50
N9415945	152YM2X6	PG13,5/20,4	2x6mm	9	35	24	24	26.5	26.5	50
152YM3X1,9/1X6	152YM3X1,9/1X6	PG13,5/20,4	3x1,9mm, 1x6mm	9	35	24	24	26.5	26.5	50
152YM3X2	152YM3X2	PG13,5/20,4	3x2mm	9	35	24	24	26.5	26.5	50
152YM3X3	152YM3X3	PG13,5/20,4	3x3mm	9	35	24	24	26.5	26.5	50
152YM3X3/1X6	152YM3X3/1X6	PG13,5/20,4	3x3mm, 1x6mm	9	35	24	24	26.5	26.5	50
N9415949	152YM3X4	PG13,5/20,4	3x4mm	9	35	24	24	26.5	26.5	50
152YM3X5,3	152YM3X5,3	PG13,5/20,4	3x5,3mm	9	35	24	24	26.5	26.5	50
152YM3X5,3S	152YM3X5,3S	PG13,5/20,4	3x5,3mm	9	35	24	24	26.5	26.5	50
152YM4X3	152YM4X3	PG13,5/20,4	4x3mm	9	35	24	24	26.5	26.5	50
152YM4X4	152YM4X4	PG13,5/20,4	4x4mm	9	35	24	24	26.5	26.5	50
152YM6X2,5	152YM6X2,5	PG13,5/20,4	6x2,5mm	9	35	24	24	26.5	26.5	50
152YM6X3,5	152YM6X3,5	PG13,5/20,4	6x3,5mm	9	35	24	24	26.5	26.5	50
152YM7X3,3	152YM7X3,3	PG13,5/20,4	7x3,3mm	9	35	24	24	26.5	26.5	50
152YM8X1,5	152YM8X1,5	PG13,5/20,4	8x1,5mm	9	35	24	24	26.5	26.5	50
152YM8X2	152YM8X2	PG13,5/20,4	8x2mm	9	35	24	24	26.5	26.5	50
152YM10X2	152YM10X2	PG13,5/20,4	10x2mm	9	35	24	24	26.5	26.5	50
15253YM1X3/1X6/1X8	15253YM1X3/1X6/1X8*	PG13,5/20,4	1x3mm, 1x6mm, 1x8mm	8.5	35.5	27	27	29.5	29.5	50
15253YM1X5/1X9	15253YM1X5/1X9*	PG13,5/20,4	1x5mm, 1x9mm	8.5	35.5	27	27	29.5	29.5	50
15253YM2X4	15253YM2X4*	PG13,5/20,4	2x4mm	8.5	35.5	27	27	29.5	29.5	50
15253YM2X6	15253YM2X6*	PG13,5/20,4	2x6mm	8.5	35.5	27	27	29.5	29.5	50
15253YM2X6/1X7	15253YM2X6/1X7*	PG13,5/20,4	2x6mm, 1x7mm	8.5	35.5	27	27	29.5	29.5	50
15253YM2X6,5	15253YM2X6,5*	PG13,5/20,4	2x6,5mm	8.5	35.5	27	27	29.5	29.5	50
15253YM2X8	15253YM2X8*	PG13,5/20,4	2x8mm	8.5	35.5	27	27	29.5	29.5	50
15253YM3X5/1X8	15253YM3X5/1X8*	PG13,5/20,4	3x5mm, 1x8mm	8.5	35.5	27	27	29.5	29.5	50
15253YM3X7	15253YM3X7*	PG13,5/20,4	3x7mm	8.5	35.5	27	27	29.5	29.5	50
15253YM4X6	15253YM4X6*	PG13,5/20,4	4x6mm	8.5	35.5	27	27	29.5	29.5	50
15253YM6X4	15253YM6X4*	PG13,5/20,4	6x4mm	8.5	35.5	27	27	29.5	29.5	50
153YM1X2,6	153YM1X2,6	PG16/22,5	1x2,6mm	9	35	27	27	29.5	29.5	50
153YM1X3	153YM1X3	PG16/22,5	1x3mm	9	35	27	27	29.5	29.5	50
153YM1X3/1X8	153YM1X3/1X8	PG16/22,5	1x3mm, 1x8mm	9	35	27	27	29.5	29.5	50
153YM1X3/1X9	153YM1X3/1X9	PG16/22,5	1x3mm, 1x9mm	9	35	27	27	29.5	29.5	50
153YM1X3/2X7,7	153YM1X3/2X7,7	PG16/22,5	1x3mm, 2x7,7mm	9	35	27	27	29.5	29.5	50
153YM1X3,3/2X3,7	153YM1X3,3/2X3,7	PG16/22,5	1x3,3mm, 2x3,7mm	9	35	27	27	29.5	29.5	50
N9415970	153YM1X3,5	PG16/22,5	1x3,5mm	9	35	27	27	29.5	29.5	50
153YM1X4	153YM1X4	PG16/22,5	1x4mm	9	35	27	27	29.5	29.5	50
N9415976	153YM1X4/1X5	PG16/22,5	1x4mm, 1x5mm	9	35	27	27	29.5	29.5	50
153YM1X4/2X6/1X7	153YM1X4/2X6/1X7	PG16/22,5	1x4mm, 2x6mm, 1x7mm	9	35	27	27	29.5	29.5	50
N9415978	153YM1X4/3X5	PG16/22,5	1x4mm, 3x5mm	9	35	27	27	29.5	29.5	50
153YM1X5	153YM1X5	PG16/22,5	1x5mm	9	35	27	27	29.5	29.5	50
153YM1X5/1X9	153YM1X5/1X9	PG16/22,5	1x5mm, 1x9mm	9	35	27	27	29.5	29.5	50
153YM1X5/2X6	153YM1X5/2X6	PG16/22,5	1x5mm, 2x6mm	9	35	27	27	29.5	29.5	50
153YM1X6/1X8	153YM1X6/1X8	PG16/22,5	1x6mm, 1x8mm	9	35	27	27	29.5	29.5	50
153YM1X6/1X9S	153YM1X6/1X9S	PG16/22,5	1x6mm, 1x9mm	9	35	27	27	29.5	29.5	50
153YM1X8S	153YM1X8S	PG16/22,5	1x8mm	9	35	27	27	29.5	29.5	50
153YM2X3,2/2X6	153YM2X3,2/2X6	PG16/22,5	2x3,2mm, 2x6mm	9	35	27	27	29.5	29.5	50
153YM2X3,3	153YM2X3,3	PG16/22,5	2x3,3mm	9	35	27	27	29.5	29.5	50
N9415990	153YM2X3,5	PG16/22,5	2x3,5mm	9	35	27	27	29.5	29.5	50
153YM2X3,5/1X5,5	153YM2X3,5/1X5,5	PG16/22,5	2x3,5mm, 1x5,5mm	9	35	27	27	29.5	29.5	50
153YM2X3,5/1X8,5	153YM2X3,5/1X8,5	PG16/22,5	2x3,5mm, 1x8,5mm	9	35	27	27	29.5	29.5	50
N9415994	153YM2X4	PG16/22,5	2x4mm	9	35	27	27	29.5	29.5	50
153YM2X5	153YM2X5	PG16/22,5	2x5mm	9	35	27	27	29.5	29.5	50
153YM2X5/1X6	153YM2X5/1X6	PG16/22,5	2x5mm, 1x6mm	9	35	27	27	29.5	29.5	50
N9415997	153YM2X6	PG16/22,5	2x6mm	9	35	27	27	29.5	29.5	50
153YM2X6/1X7	153YM2X6/1X7	PG16/22,5	2x6mm, 1x7mm	9	35	27	27	29.5	29.5	50
153YM2X6/1X8	153YM2X6/1X8	PG16/22,5	2x6mm, 1x8mm	9	35	27	27	29.5	29.5	50
N9416000	153YM2X8	PG16/22,5	2x8mm	9	35	27	27	29.5	29.5	50
153YM3X1,9/1X2,4/1X7	153YM3X1,9/1X2,4/1X7	PG16/22,5	3x1,9mm, 1x2,4mm, 1x7mm	9	35	27	27	29.5	29.5	50
153YM3X2,5/1X3,5/1X7	153YM3X2,5/1X3,5/1X7	PG16/22,5	3x2,5mm, 1x3,5mm, 1x7mm	9	35	27	27	29.5	29.5	50
153YM3X3	153YM3X3	PG16/22,5	3x3mm	9	35	27	27	29.5	29.5	50
153YM3X3/1X6	153YM3X3/1X6	PG16/22,5	3x3mm, 1x6mm	9	35	27	27	29.5	29.5	50
N9416004	153YM3X3,5	PG16/22,5	3x3,5mm	9	35	27	27	29.5	29.5	50
N9416005	153YM3X4/1X9	PG16/22,5	3x4mm, 1x9mm	9	35	27	27	29.5	29.5	50
153YM3X5/1X8	153YM3X5/1X8	PG16/22,5	3x5mm, 1x8mm	9	35	27	27	29.5	29.5	50
153YM3X6	153YM3X6	PG16/22,5	3x6mm	9	35	27	27	29.5	29.5	50
N9416008	153YM3X7	PG16/22,5	3x7mm	9	35	27	27	29.5	29.5	50
153YM4X3	153YM4X3	PG16/22,5	4x3mm	9	35	27	27	29.5	29.5	50
N9416009	153YM4X4	PG16/22,5	4x4mm	9	35	27	27	29.5	29.5	50
N9416010	153YM4X5	PG16/22,5	4x5mm	9	35	27	27	29.5	29.5	50
N9416011	153YM4X6	PG16/22,5	4x6mm	9	35	27	27	29.5	29.5	50
153YM6X4	153YM6X4	PG16/22,5	6x4mm	9	35	27	27	29.5	29.5	50
153YM7X2	153YM7X2	PG16/22,5	7x2mm	9	35	27	27	29.5	29.5	50
N9416014	153YM9X3	PG16/22,5	9x3mm	9	35	27	27	29.5	29.5	50
15354YM1X4/1X12	15354YM1X4/1X12*	PG16/22,5	1x4mm, 1x12mm	9	39	33	33	36.5	36.5	25
15354YM1X4,5/1X12	15354YM1X4,5/1X12*	PG16/22,5	1x4,5mm, 1x12mm	9	39	33	33	36.5	36.5	50
15354YM1X4,5/2X6,5	15354YM1X4,5/2X6,5*	PG16/22,5	1x4,5mm, 2x6,5mm	9	39	33	33	36.5	36.5	50
15354YM1X5,5/1X9	15354YM1X5,5/1X9*	PG16/22,5	1x5,5mm, 1x9mm	9	39	33	33	36.5	36.5	50
15354YM1X5,5/1X10,5	15354YM1X5,5/1X10,5*	PG16/22,5	1x5,5mm, 1x10,5mm	9	39	33	33	36.5	36.5	50
15354YM1X5,8/1X6,9/1X8,4	15354YM1X5,8/1X6,9/1X8,4*	PG16/22,5	1x5,8mm, 1x6,9mm, 1x8,4mm	9	39	33	33	36.5	36.5	50
15354YM1X6/2X9	15354YM1X6/2X9*	PG16/22,5	1x6mm, 2x9mm	9	39	33	33	36.5	36.5	50
15354YM1X6,5/1X12	15354YM1X6,5/1X12*	PG16/22,5	1x6,5mm, 1x12mm	9	39	33	33	36.5	36.5	50
15354YM1X6,9/1X7,4/1X8,4	15354YM1X6,9/1X7,4/1X8,4*	PG16/22,5	1x6,9mm, 1x7,4mm, 1x8,4mm	9	39	33	33	36.5	36.5	50
15354YM1X7/1X8,5	15354YM1X7/1X8,5*	PG16/22,5	1x7mm, 1x8,5mm	9	39	33	33	36.5	36.5	50
15354YM1X7/1X10,5	15354YM1X7/1X10,5*	PG16/22,5	1x7mm, 1x10,5mm	9	39	33	33	36.5	36.5	50
N9416026	15354YM1X7,5/1X8,5/1X10*	PG16/22,5	1x7,5mm, 1x8,5mm, 1x10mm	9	39	33	33	36.5	36.5	25
15354YM1X8,5/1X12	15354YM1X8,5/1X12*	PG16/22,5	1x8,5mm, 1x12mm	9	39	33	33	36.5	36.5	50
15354YM1X11,8	15354YM1X11,8*	PG16/22,5	1x11,8mm	9	39	33	33	36.5	36.5	50
15354YM2X5/1X5,5	15354YM2X5/1X5,5*	PG16/22,5	2x5mm, 1x5,5mm	9	39	33	33	36.5	36.5	50
15354YM2X6	15354YM2X6*	PG16/22,5	2x6mm	9	39	33	33	36.5	36.5	50
15354YM2X6/2X8	15354YM2X6/2X8*	PG16/22,5	2x6mm, 2x8mm	9	39	33	33	36.5	36.5	50
15354YM2X6,5/1X9,5	15354YM2X6,5/1X9,5*	PG16/22,5	2x6,5mm, 1x9,5mm	9	39	33	33	36.5	36.5	50
15354YM2X7	15354YM2X7*	PG16/22,5	2x7mm	9	39	33	33	36.5	36.5	50
15354YM2X8	15354YM2X8*	PG16/22,5	2x8mm	9	39	33	33	36.5	36.5	50
15354YM2X9	15354YM2X9*	PG16/22,5	2x9mm	9	39	33	33	36.5	36.5	50
15354YM2X10	15354YM2X10*	PG16/22,5	2x10mm	9	39	33	33	36.5	36.5	50
15354YM3X2,5/3X8	15354YM3X2,5/3X8*	PG16/22,5	3x2,5mm, 3x8mm	9	39	33	33	36.5	36.5	50
15354YM3X7	15354YM3X7*	PG16/22,5	3x7mm	9	39	33	33	36.5	36.5	50
N9416037	15354YM3X8*	PG16/22,5	3x8mm	9	39	33	33	36.5	36.5	50
15354YM3X9	15354YM3X9*	PG16/22,5	3x9mm	9	39	33	33	36.5	36.5	50
15354YM4X4,6/3X5,1	15354YM4X4,6/3X5,1*	PG16/22,5	4x4,6mm, 3x5,1mm	9	39	33	33	36.5	36.5	50
15354YM4X5	15354YM4X5*	PG16/22,5	4x5mm	9	39	33	33	36.5	36.5	25
15354YM4X5/1X6,5	15354YM4X5/1X6,5*	PG16/22,5	4x5mm, 1x6,5mm	9	39	33	33	36.5	36.5	50
15354YM4X6	15354YM4X6*	PG16/22,5	4x6mm	9	39	33	33	36.5	36.5	50
15354YM4X6,5	15354YM4X6,5*	PG16/22,5	4x6,5mm	9	39	33	33	36.5	36.5	50
15354YM4X7,5	15354YM4X7,5*	PG16/22,5	4x7,5mm	9	39	33	33	36.5	36.5	50
15354YM4X8	15354YM4X8*	PG16/22,5	4x8mm	9	39	33	33	36.5	36.5	50
15354YM5X5	15354YM5X5*	PG16/22,5	5x5mm	9	39	33	33	36.5	36.5	25
15354YM5X6	15354YM5X6*	PG16/22,5	5x6mm	9	39	33	33	36.5	36.5	50
15354YM6X5,5	15354YM6X5,5*	PG16/22,5	6x5,5mm	9	39	33	33	36.5	36.5	50
15354YM6X6,5	15354YM6X6,5*	PG16/22,5	6x6,5mm	9	39	33	33	36.5	36.5	50
15354YM7X4	15354YM7X4*	PG16/22,5	7x4mm	9	39	33	33	36.5	36.5	50
N9416043	15354YM8X4*	PG16/22,5	8x4mm	9	39	33	33	36.5	36.5	50
15354YM12X3,5	15354YM12X3,5*	PG16/22,5	12x3,5mm	9	39	33	33	36.5	36.5	50
154YM1X2,9/2X6/1X6,1/1X6,8/1X7,3	154YM1X2,9/2X6/1X6,1/1X6,8/1X7,3	PG21/28,3	1x2,9mm, 2x6mm, 1x6,1mm, 1x6,8mm, 1x7,3mm	11	40	33	33	36.5	36.5	25
154YM1X3,2/2X5/1X6S	154YM1X3,2/2X5/1X6S	PG21/28,3	1x3,2mm, 2x5mm, 1x6mm	11	40	33	33	36.5	36.5	25
154YM1X3,2/2X6/1X6,1/1X6,8/1X7,3	154YM1X3,2/2X6/1X6,1/1X6,8/1X7,3	PG21/28,3	1x3,2mm, 2x6mm, 1x6,1mm, 1x6,8mm, 1x7,3mm	11	40	33	33	36.5	36.5	25
154YM1X3,2/2X6/3X7	154YM1X3,2/2X6/3X7	PG21/28,3	1x3,2mm, 2x6mm, 3x7mm	11	40	33	33	36.5	36.5	25
154YM1X3,2S/2X5S/1X8,5S	154YM1X3,2S/2X5S/1X8,5S	PG21/28,3	1x3,2mm, 2x5mm, 1x8,5mm	11	40	33	33	36.5	36.5	25
154YM1X4/1X5/1X13	154YM1X4/1X5/1X13	PG21/28,3	1x4mm, 1x5mm, 1x13mm	11	40	33	33	36.5	36.5	25
154YM1X4,3/1X6/1X8	154YM1X4,3/1X6/1X8	PG21/28,3	1x4,3mm, 1x6mm, 1x8mm	11	40	33	33	36.5	36.5	25
154YM1X4,5/2X7/1X8	154YM1X4,5/2X7/1X8	PG21/28,3	1x4,5mm, 2x7mm, 1x8mm	11	40	33	33	36.5	36.5	25
154YM1X4,5/2X8	154YM1X4,5/2X8	PG21/28,3	1x4,5mm, 2x8mm	11	40	33	33	36.5	36.5	25
154YM1X5/1X9	154YM1X5/1X9	PG21/28,3	1x5mm, 1x9mm	11	40	33	33	36.5	36.5	25
154YM1X5,4	154YM1X5,4	PG21/28,3	1x5,4mm	11	40	33	33	36.5	36.5	25
154YM1X5,7/1X13	154YM1X5,7/1X13	PG21/28,3	1x5,7mm, 1x13mm	11	40	33	33	36.5	36.5	25
154YM1X5,7/2X6,3/1X8,5	154YM1X5,7/2X6,3/1X8,5	PG21/28,3	1x5,7mm, 2x6,3mm, 1x8,5mm	11	40	33	33	36.5	36.5	25
N9416058	154YM1X6/2X9	PG21/28,3	1x6mm, 2x9mm	11	40	33	33	36.5	36.5	25
N9416059	154YM1X6,5/1X12	PG21/28,3	1x6,5mm, 1x12mm	11	40	33	33	36.5	36.5	25
154YM1X7	154YM1X7	PG21/28,3	1x7mm	11	40	33	33	36.5	36.5	25
154YM1X7/1X8,5	154YM1X7/1X8,5	PG21/28,3	1x7mm, 1x8,5mm	11	40	33	33	36.5	36.5	25
N9416062	154YM1X7/1X10,5	PG21/28,3	1x7mm, 1x10,5mm	11	40	33	33	36.5	36.5	25
N9416063	154YM1X8,5/1X12	PG21/28,3	1x8,5mm, 1x12mm	11	40	33	33	36.5	36.5	25
154YM2X4,5	154YM2X4,5	PG21/28,3	2x4,5mm	11	40	33	33	36.5	36.5	25
154YM2X4,5/1X13	154YM2X4,5/1X13	PG21/28,3	2x4,5mm, 1x13mm	11	40	33	33	36.5	36.5	25
154YM2X6	154YM2X6	PG21/28,3	2x6mm	11	40	33	33	36.5	36.5	25
N9416067	154YM2X6/2X8	PG21/28,3	2x6mm, 2x8mm	11	40	33	33	36.5	36.5	25
154YM2X7/3X7S	154YM2X7/3X7S	PG21/28,3	2x7mm, 3x7mm	11	40	33	33	36.5	36.5	25
154YM2X7/1X10,5	154YM2X7/1X10,5	PG21/28,3	2x7mm, 1x10,5mm	11	40	33	33	36.5	36.5	25
N9416070	154YM2X8	PG21/28,3	2x8mm	11	40	33	33	36.5	36.5	25
N9416071	154YM2X9	PG21/28,3	2x9mm	11	40	33	33	36.5	36.5	25
154YM3x4	154YM3x4	PG21/28,3	3x4mm	11	40	33	33	36.5	36.5	25
154YM3X5	154YM3X5	PG21/28,3	3x5mm	11	40	33	33	36.5	36.5	25
154YM3X6/1X8	154YM3X6/1X8	PG21/28,3	3x6mm, 1x8mm	11	40	33	33	36.5	36.5	25
154YM3X6/2X8	154YM3X6/2X8	PG21/28,3	3x6mm, 2x8mm	11	40	33	33	36.5	36.5	25
N9416075	154YM3X7	PG21/28,3	3x7mm	11	40	33	33	36.5	36.5	25
154YM3X8	154YM3X8	PG21/28,3	3x8mm	11	40	33	33	36.5	36.5	25
N9416076	154YM3X9	PG21/28,3	3x9mm	11	40	33	33	36.5	36.5	25
154YM4X4	154YM4X4	PG21/28,3	4x4mm	11	40	33	33	36.5	36.5	25
N9416077	154YM4X5	PG21/28,3	4x5mm	11	40	33	33	36.5	36.5	25
154YM4X5/4X5S	154YM4X5/4X5S	PG21/28,3	4x5mm, 4x5mm	11	40	33	33	36.5	36.5	25
N9416079	154YM4X6	PG21/28,3	4x6mm	11	40	33	33	36.5	36.5	25
154YM4X6/1X8	154YM4X6/1X8	PG21/28,3	4x6mm, 1x8mm	11	40	33	33	36.5	36.5	25
N9416080	154YM4X6/3X6S	PG21/28,3	4x6mm, 3x6mm	11	40	33	33	36.5	36.5	25
N9416082	154YM4X6,5	PG21/28,3	4x6,5mm	11	40	33	33	36.5	36.5	25
154YM4X6,5/1X6,5S	154YM4X6,5/1X6,5S	PG21/28,3	4x6,5mm, 1x6,5mm	11	40	33	33	36.5	36.5	25
N9416084	154YM4X8	PG21/28,3	4x8mm	11	40	33	33	36.5	36.5	25
154YM5X4	154YM5X4	PG21/28,3	5x4mm	11	40	33	33	36.5	36.5	25
154YM5X5	154YM5X5	PG21/28,3	5x5mm	11	40	33	33	36.5	36.5	25
N9416087	154YM5X6	PG21/28,3	5x6mm	11	40	33	33	36.5	36.5	25
N9416088	154YM6X4	PG21/28,3	6x4mm	11	40	33	33	36.5	36.5	25
154YM6X4/1X7	154YM6X4/1X7	PG21/28,3	6x4mm, 1x7mm	11	40	33	33	36.5	36.5	25
154YM6X5	154YM6X5	PG21/28,3	6x5mm	11	40	33	33	36.5	36.5	25
N9416091	154YM6X5,5	PG21/28,3	6x5,5mm	11	40	33	33	36.5	36.5	25
N9416092	154YM6X6,5	PG21/28,3	6x6,5mm	11	40	33	33	36.5	36.5	25
N9416093	154YM8X3	PG21/28,3	8x3mm	11	40	33	33	36.5	36.5	25
N9416094	154YM8X4	PG21/28,3	8x4mm	11	40	33	33	36.5	36.5	25
154YM8X4/1X4SB	154YM8X4/1X4SB	PG21/28,3	8x4mm, 1x4mm	11	40	33	33	36.5	36.5	25
154YM8X5	154YM8X5	PG21/28,3	8x5mm	11	40	33	33	36.5	36.5	25
N9416097	154YM8X5,5	PG21/28,3	8x5,5mm	11	40	33	33	36.5	36.5	25
154YM9X3	154YM9X3	PG21/28,3	9x3mm	11	40	33	33	36.5	36.5	25
N9416099	154YM21X2	PG21/28,3	21x2mm	11	40	33	33	36.5	36.5	25
15455YM1X3,5/2X8/1X14	15455YM1X3,5/2X8/1X14*	PG21/28,3	1x3,5mm, 2x8mm, 1x14mm	11	44	43	43	46.5	46.5	10
15455YM1X4/1X6/1X8/2X10	15455YM1X4/1X6/1X8/2X10*	PG21/28,3	1x4mm, 1x6mm, 1x8mm, 2x10mm	11	44	43	43	46.5	46.5	10
15455YM1X4/1X9,3/1X10	15455YM1X4/1X9,3/1X10*	PG21/28,3	1x4mm, 1x9,3mm, 1x10mm	11	44	43	43	46.5	46.5	10
15455YM1X4/2X8	15455YM1X4/2X8*	PG21/28,3	1x4mm, 2x8mm	11	44	43	43	46.5	46.5	10
15455YM1X5/3X8,5/1X10,5	15455YM1X5/3X8,5/1X10,5*	PG21/28,3	1x5mm, 3x8,5mm, 1x10,5mm	11	44	43	43	46.5	46.5	10
15455YM1X5,8/1X6,9/1X11	15455YM1X5,8/1X6,9/1X11*	PG21/28,3	1x5,8mm, 1x6,9mm, 1x11mm	11	44	43	43	46.5	46.5	10
15455YM1X5,8/2X11	15455YM1X5,8/2X11*	PG21/28,3	1x5,8mm, 2x11mm	11	44	43	43	46.5	46.5	10
15455YM1X6,5/1X17	15455YM1X6,5/1X17*	PG21/28,3	1x6,5mm, 1x17mm	11	44	43	43	46.5	46.5	10
15455YM1X6,5/2X11,2	15455YM1X6,5/2X11,2*	PG21/28,3	1x6,5mm, 2x11,2mm	11	44	43	43	46.5	46.5	10
15455YM1X7/1X16	15455YM1X7/1X16*	PG21/28,3	1x7mm, 1x16mm	11	44	43	43	46.5	46.5	10
15455YM1X7,2/1X9,1/1X9,3	15455YM1X7,2/1X9,1/1X9,3*	PG21/28,3	1x7,2mm, 1x9,1mm, 1x9,3mm	11	44	43	43	46.5	46.5	10
15455YM1X8/1X14	15455YM1X8/1X14*	PG21/28,3	1x8mm, 1x14mm	11	44	43	43	46.5	46.5	10
N9416108	15455YM1X8/1X9/1X12*	PG21/28,3	1x8mm, 1x9mm, 1x12mm	11	44	43	43	46.5	46.5	10
15455YM1X8/2X11	15455YM1X8/2X11*	PG21/28,3	1x8mm, 2x11mm	11	44	43	43	46.5	46.5	10
15455YM1X8/2X8,5/1X15	15455YM1X8/2X8,5/1X15*	PG21/28,3	1x8mm, 2x8,5mm, 1x15mm	11	44	43	43	46.5	46.5	10
15455YM1X9/1X10	15455YM1X9/1X10*	PG21/28,3	1x9mm, 1x10mm	11	44	43	43	46.5	46.5	10
15455YM1X9/1X10/1X11	15455YM1X9/1X10/1X11*	PG21/28,3	1x9mm, 1x10mm, 1x11mm	11	44	43	43	46.5	46.5	10
15455YM1X9/1X15	15455YM1X9/1X15*	PG21/28,3	1x9mm, 1x15mm	11	44	43	43	46.5	46.5	10
15455YM1X10/1X12	15455YM1X10/1X12*	PG21/28,3	1x10mm, 1x12mm	11	44	43	43	46.5	46.5	10
15455YM1X10/1X13	15455YM1X10/1X13*	PG21/28,3	1x10mm, 1x13mm	11	44	43	43	46.5	46.5	10
15455YM1X10/1X15	15455YM1X10/1X15*	PG21/28,3	1x10mm, 1x15mm	11	44	43	43	46.5	46.5	10
15455YM1X10,5/1X16	15455YM1X10,5/1X16*	PG21/28,3	1x10,5mm, 1x16mm	11	44	43	43	46.5	46.5	10
15455YM1X10,7/1X13,8	15455YM1X10,7/1X13,8*	PG21/28,3	1x10,7mm, 1x13,8mm	11	44	43	43	46.5	46.5	10
15455YM2X5/1X8,6/1X12,2	15455YM2X5/1X8,6/1X12,2*	PG21/28,3	2x5mm, 1x8,6mm, 1x12,2mm	11	44	43	43	46.5	46.5	10
15455YM2X5/2X9	15455YM2X5/2X9*	PG21/28,3	2x5mm, 2x9mm	11	44	43	43	46.5	46.5	10
15455YM2X5,8/1X11	15455YM2X5,8/1X11*	PG21/28,3	2x5,8mm, 1x11mm	11	44	43	43	46.5	46.5	10
15455YM2X6/2X10	15455YM2X6/2X10*	PG21/28,3	2x6mm, 2x10mm	11	44	43	43	46.5	46.5	10
15455YM2X8,5/1X13,5	15455YM2X8,5/1X13,5*	PG21/28,3	2x8,5mm, 1x13,5mm	11	44	43	43	46.5	46.5	10
15455YM2X10	15455YM2X10*	PG21/28,3	2x10mm	11	44	43	43	46.5	46.5	10
N9416116	15455YM2X11*	PG21/28,3	2x11mm	11	44	43	43	46.5	46.5	10
15455YM2X12	15455YM2X12*	PG21/28,3	2x12mm	11	44	43	43	46.5	46.5	10
15455YM2X13	15455YM2X13*	PG21/28,3	2x13mm	11	44	43	43	46.5	46.5	10
15455YM2X13,9	15455YM2X13,9*	PG21/28,3	2x13,9mm	11	44	43	43	46.5	46.5	10
15455YM3X9	15455YM3X9*	PG21/28,3	3x9mm	11	44	43	43	46.5	46.5	10
15455YM3X11	15455YM3X11*	PG21/28,3	3x11mm	11	44	43	43	46.5	46.5	10
15455YM4X5,5/1X8	15455YM4X5,5/1X8*	PG21/28,3	4x5,5mm, 1x8mm	11	44	43	43	46.5	46.5	10
15455YM4x6,5	15455YM4x6,5*	PG21/28,3	4x6,5mm	11	44	43	43	46.5	46.5	10
15455YM4X8	15455YM4X8*	PG21/28,3	4x8mm	11	44	43	43	46.5	46.5	10
15455YM4X9	15455YM4X9*	PG21/28,3	4x9mm	11	44	43	43	46.5	46.5	10
15455YM4X9S	15455YM4X9S*	PG21/28,3	4x9mm	11	44	43	43	46.5	46.5	10
15455YM4X10	15455YM4X10*	PG21/28,3	4x10mm	11	44	43	43	46.5	46.5	10
15455YM5X8	15455YM5X8*	PG21/28,3	5x8mm	11	44	43	43	46.5	46.5	10
15455YM5X9	15455YM5X9*	PG21/28,3	5x9mm	11	44	43	43	46.5	46.5	10
15455YM5X9,5	15455YM5X9,5*	PG21/28,3	5x9,5mm	11	44	43	43	46.5	46.5	10
15455YM5X10	15455YM5X10*	PG21/28,3	5x10mm	11	44	43	43	46.5	46.5	10
15455YM6X8	15455YM6X8*	PG21/28,3	6x8mm	11	44	43	43	46.5	46.5	10
15455YM8X5,5	15455YM8X5,5*	PG21/28,3	8x5,5mm	11	44	43	43	46.5	46.5	10
15455YM10X6	15455YM10X6*	PG21/28,3	10x6mm	11	44	43	43	46.5	46.5	10
15455YM11X5,2	15455YM11X5,2*	PG21/28,3	11x5,2mm	11	44	43	43	46.5	46.5	10
15455YM12X5,3	15455YM12X5,3*	PG21/28,3	12x5,3mm	11	44	43	43	46.5	46.5	10
15455YM24X3	15455YM24X3*	PG21/28,3	24x3mm	11	44	43	43	46.5	46.5	10
155YM1X4/1X6/1X8/2X10	155YM1X4/1X6/1X8/2X10	PG29/37,0	1x4mm, 1x6mm, 1x8mm, 2x10mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X4/2X6/4X8	155YM1X4/2X6/4X8	PG29/37,0	1x4mm, 2x6mm, 4x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X4/2X7/2X9	155YM1X4/2X7/2X9	PG29/37,0	1x4mm, 2x7mm, 2x9mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X4/7X7	155YM1X4/7X7	PG29/37,0	1x4mm, 7x7mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X4,5/4X8	155YM1X4,5/4X8	PG29/37,0	1x4,5mm, 4x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X5/2X9/1X13	155YM1X5/2X9/1X13	PG29/37,0	1x5mm, 2x9mm, 1x13mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X5/4X9	155YM1X5/4X9	PG29/37,0	1x5mm, 4x9mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X5,5/1X9	155YM1X5,5/1X9	PG29/37,0	1x5,5mm, 1x9mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X5,8/2X10	155YM1X5,8/2X10	PG29/37,0	1x5,8mm, 2x10mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X6/1X10	155YM1X6/1X10	PG29/37,0	1x6mm, 1x10mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X6/1X8,5/1X10,5	155YM1X6/1X8,5/1X10,5	PG29/37,0	1x6mm, 1x8,5mm, 1x10,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X6/2X6,5/2X8	155YM1X6/2X6,5/2X8	PG29/37,0	1x6mm, 2x6,5mm, 2x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X6/2X9	155YM1X6/2X9	PG29/37,0	1x6mm, 2x9mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X6SB/3X6/3X8/1X9,2	155YM1X6SB/3X6/3X8/1X9,2	PG29/37,0	1x6mm, 3x3mm, 3x8mm, 1x9,2mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X6,5/1X17	155YM1X6,5/1X17	PG29/37,0	1x6,5mm, 1x17mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X6,5/2X7,5	155YM1X6,5/2X7,5	PG29/37,0	1x6,5mm, 2x7,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X7/1X14	155YM1X7/1X14	PG29/37,0	1x7mm, 1x14mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X7/1X8,5/1X17	155YM1X7/1X8,5/1X17	PG29/37,0	1x7mm, 1x8,5mm, 1x17mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X7/1X9/1X11	155YM1X7/1X9/1X11	PG29/37,0	1x7mm, 1x9mm, 1x11mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X7/1X9,5/1X12	155YM1X7/1X9,5/1X12	PG29/37,0	1x7mm, 1x9,5mm, 1x12mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X7/2X8/2X10	155YM1X7/2X8/2X10	PG29/37,0	1x7mm, 2x8mm, 2x10mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X7/2X8,5	155YM1X7/2X8,5	PG29/37,0	1x7mm, 2x8,5mm	10.5	43.5	43	43	46.5	46.5	10
N9416153	155YM1X8/2X11	PG29/37,0	1x8mm, 2x11mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X8/2X12	155YM1X8/2X12	PG29/37,0	1x8mm, 2x12mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X8/2X8,5/1X12	155YM1X8/2X8,5/1X12	PG29/37,0	1x8mm, 2x8,5mm, 1x12mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X8/2X8,5/1X15	155YM1X8/2X8,5/1X15	PG29/37,0	1x8mm, 2x8,5mm, 1x15mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X8,5/1X12	155YM1X8,5/1X12	PG29/37,0	1x8,5mm, 1x12mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X8,5/1X14	155YM1X8,5/1X14	PG29/37,0	1x8,5mm, 1x14mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X9/1X10/1X11	155YM1X9/1X10/1X11	PG29/37,0	1x9mm, 1x10mm, 1x11mm	10.5	43.5	43	43	46.5	46.5	10
N9416158	155YM1X9/1X15	PG29/37,0	1x9mm, 1x15mm	10.5	43.5	43	43	46.5	46.5	10
N9416159	155YM1X9,5/1X11,5/1X13,5	PG29/37,0	1x9,5mm, 1x11,5mm, 1x13,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X9,5/2X13,5	155YM1X9,5/2X13,5	PG29/37,0	1x9,5mm, 2x13,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X10/1X11,5/1X13	155YM1X10/1X11,5/1X13	PG29/37,0	1x10mm, 1x11,5mm, 1x13mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X10/1X12/1X13,5	155YM1X10/1X12/1X13,5	PG29/37,0	1x10mm, 1x12mm, 1x13,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X10/1X13	155YM1X10/1X13	PG29/37,0	1x10mm, 1x13mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X10,5/1X16	155YM1X10,5/1X16	PG29/37,0	1x10,5mm, 1x13,8mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X10,7/1X13,8	155YM1X10,7/1X13,8	PG29/37,0	1x10,7mm, 1x13,8mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X12/1X13	155YM1X12/1X13	PG29/37,0	1x12mm, 1x13mm	10.5	43.5	43	43	46.5	46.5	10
155YM1X16S	155YM1X16S	PG29/37,0	1x16mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X4/2X5/2X7/2X8	155YM2X4/2X5/2X7/2X8	PG29/37,0	2x4mm, 2x5mm, 2x7mm, 2x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X4,8/2X6,3	155YM2X4,8/2X6,3	PG29/37,0	2x4,8mm, 2x6,3mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X5/1X8,6/1X12,2	155YM2X5/1X8,6/1X12,2	PG29/37,0	2x5mm, 1x8,6mm, 1x12,2mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X5,8/1X11	155YM2X5,8/1X11	PG29/37,0	2x5,8mm, 1x11mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X6/1X7,5/2X8,5	155YM2X6/1X7,5/2X8,5	PG29/37,0	2x6mm, 1x7,5mm, 2x8,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X6/1X8,5	155YM2X6/1X8,5	PG29/37,0	2x6mm, 1x8,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X6/1X10,5/1X12	155YM2X6/1X10,5/1X12	PG29/37,0	2x6mm, 1x10,5mm, 1x12mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X6/2X6S/1X7/1X7S/1X10	155YM2X6/2X6S/1X7/1X7S/1X10	PG29/37,0	2x6mm, 2x6mm, 1x7mm, 1x7mm, 1x10mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X6,5	155YM2X6,5	PG29/37,0	2x6,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X6,5/1X10,5	155YM2X6,5/1X10,5	PG29/37,0	2x6,5mm, 1x10,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X7	155YM2X7	PG29/37,0	2x7mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X7/1X9	155YM2X7/1X9	PG29/37,0	2x7mm, 1x9mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X8,5/1X13,5	155YM2X8,5/1X13,5	PG29/37,0	2x8,5mm, 1x13,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X8,5/2X11,5	155YM2X8,5/2X11,5	PG29/37,0	2x8,5mm, 2x11,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X9	155YM2X9	PG29/37,0	2x9mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X9/1X13	155YM2X9/1X13	PG29/37,0	2x9mm, 1x13mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X9/1X15	155YM2X9/1X15	PG29/37,0	2x9mm, 1x15mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X10	155YM2X10	PG29/37,0	2x10mm	10.5	43.5	43	43	46.5	46.5	10
N9416186	155YM2X11	PG29/37,0	2x11mm	10.5	43.5	43	43	46.5	46.5	10
155YM2X12	155YM2X12	PG29/37,0	2x12mm	10.5	43.5	43	43	46.5	46.5	10
N9416187	155YM2X13	PG29/37,0	2x13mm	10.5	43.5	43	43	46.5	46.5	10
155YM3X3/7X4/1X8	155YM3X3/7X4/1X8	PG29/37,0	3x3mm, 7x4mm, 1x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM3X3/8X5	155YM3X3/8X5	PG29/37,0	3x3mm, 8x5mm	10.5	43.5	43	43	46.5	46.5	10
155YM3X3/8X5/1X8	155YM3X3/8X5/1X8	PG29/37,0	3x3mm, 8x5mm, 1x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM3X7	155YM3X7	PG29/37,0	3x7mm	10.5	43.5	43	43	46.5	46.5	10
N9416192	155YM3X7/3X8	PG29/37,0	3x7mm, 3x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM3X9	155YM3X9	PG29/37,0	3x9mm	10.5	43.5	43	43	46.5	46.5	10
155YM3X9,5	155YM3X9,5	PG29/37,0	3x9,5mm	10.5	43.5	43	43	46.5	46.5	10
N9416193	155YM3X11	PG29/37,0	3x11mm	10.5	43.5	43	43	46.5	46.5	10
155YM3X12	155YM3X12	PG29/37,0	3x12mm	10.5	43.5	43	43	46.5	46.5	10
155YM4X3,5/2X7/1X11	155YM4X3,5/2X7/1X11	PG29/37,0	4x3,5mm, 2x7mm, 1x11mm	10.5	43.5	43	43	46.5	46.5	10
155YM4X5	155YM4X5	PG29/37,0	4x5mm	10.5	43.5	43	43	46.5	46.5	10
155YM4X5,5	155YM4X5,5	PG29/37,0	4x5,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM4X5,5/1X8	155YM4X5,5/1X8	PG29/37,0	4x5,5mm, 1x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM4X5,7/2X10	155YM4X5,7/2X10	PG29/37,0	4x5,7mm, 2x10mm	10.5	43.5	43	43	46.5	46.5	10
N9416200	155YM4X6/3X8,5	PG29/37,0	4x6mm, 3x8,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM4X6,5	155YM4X6,5	PG29/37,0	4x6,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM4X6,5/4X6,5SB	155YM4X6,5/4X6,5SB	PG29/37,0	4x6,5mm, 4x6,5mm	10.5	43.5	43	43	46.5	46.5	10
N9416203	155YM4X8	PG29/37,0	4x8mm	10.5	43.5	43	43	46.5	46.5	10
N9416204	155YM4X9	PG29/37,0	4x9mm	10.5	43.5	43	43	46.5	46.5	10
N9416205	155YM4X10	PG29/37,0	4x10mm	10.5	43.5	43	43	46.5	46.5	10
N9416206	155YM4X11	PG29/37,0	4x11mm	10.5	43.5	43	43	46.5	46.5	10
155YM5X3,5/2X5/1X6/2X6,5	155YM5X3,5/2X5/1X6/2X6,5	PG29/37,0	5x3,5mm, 2x5mm, 1x6mm, 2x6,5mm	10.5	43.5	43	43	46.5	46.5	10
N9416208	155YM5X8	PG29/37,0	5x8mm	10.5	43.5	43	43	46.5	46.5	10
N9416209	155YM5X9	PG29/37,0	5x9mm	10.5	43.5	43	43	46.5	46.5	10
N9416210	155YM5X10	PG29/37,0	5x10mm	10.5	43.5	43	43	46.5	46.5	10
155YM6X4/3X6/1X8	155YM6X4/3X6/1X8	PG29/37,0	6x4mm, 3x6mm, 1x8mm	10.5	43.5	43	43	46.5	46.5	10
N9416212	155YM6X6	PG29/37,0	6x6mm	10.5	43.5	43	43	46.5	46.5	10
155YM6X7,4	155YM6X7,4	PG29/37,0	6x7,4mm	10.5	43.5	43	43	46.5	46.5	10
155YM6X8	155YM6X8	PG29/37,0	6x8mm	10.5	43.5	43	43	46.5	46.5	10
155YM7X4,8	155YM7X4,8	PG29/37,0	7x4,8mm	10.5	43.5	43	43	46.5	46.5	10
155YM7X6/1X11	155YM7X6/1X11	PG29/37,0	7x6mm, 1x11mm	10.5	43.5	43	43	46.5	46.5	10
N9416216	155YM7X7	PG29/37,0	7x7mm	10.5	43.5	43	43	46.5	46.5	10
155YM8X5,5	155YM8X5,5	PG29/37,0	8x5,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM8X7	155YM8X7	PG29/37,0	8x7mm	10.5	43.5	43	43	46.5	46.5	10
N9416219	155YM10X6	PG29/37,0	10x6mm	10.5	43.5	43	43	46.5	46.5	10
155YM11X6	155YM11X6	PG29/37,0	11x6mm	10.5	43.5	43	43	46.5	46.5	10
155YM12X4/1X8	155YM12X4/1X8	PG29/37,0	12x4mm, 1x8mm	10.5	43.5	43	43	46.5	46.5	10
N9416221	155YM12X5,3	PG29/37,0	12x5,3mm	10.5	43.5	43	43	46.5	46.5	10
155YM13X3,5/1X9,5	155YM13X3,5/1X9,5	PG29/37,0	13x3,5mm, 1x9,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM16X3,5	155YM16X3,5	PG29/37,0	16x3,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM17X3,5	155YM17X3,5	PG29/37,0	17x3,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM20X3,5	155YM20X3,5	PG29/37,0	20x3,5mm	10.5	43.5	43	43	46.5	46.5	10
155YM24X3	155YM24X3	PG29/37,0	24x3mm	10.5	43.5	43	43	46.5	46.5	10
15556YM1X4/1X5/2X13	15556YM1X4/1X5/2X13*	PG29/37,0	1x4mm, 1x5mm, 2x13mm	11	46	53	53	57	57	5
15556YM1X4/2X6/4X9	15556YM1X4/2X6/4X9*	PG29/37,0	1x4mm, 2x6mm, 4x9mm	11	46	53	53	57	57	5
15556YM1X4/5X10	15556YM1X4/5X10*	PG29/37,0	1x4mm, 5x10mm	11	46	53	53	57	57	5
15556YM1X11/1X21	15556YM1X11/1X21*	PG29/37,0	1x11mm, 1x21mm	11	46	53	53	57	57	10
15556YM1X13/1X19	15556YM1X13/1X19*	PG29/37,0	1x13mm, 1x19mm	11	46	53	53	57	57	5
15556YM1X14/1X17	15556YM1X14/1X17*	PG29/37,0	1x14mm, 1x17mm	11	46	53	53	57	57	5
15556YM2X15	15556YM2X15*	PG29/37,0	2x15mm	11	46	53	53	57	57	5
15556YM3X7/4X10	15556YM3X7/4X10*	PG29/37,0	3x7mm, 4x10mm	11	46	53	53	57	57	5
15556YM4X7	15556YM4X7*	PG29/37,0	4x7mm	11	46	53	53	57	57	5
15556YM4X13	15556YM4X13*	PG29/37,0	4x13mm	11	46	53	53	57	57	5
15556YM7X9	15556YM7X9*	PG29/37,0	7x9mm	11	46	53	53	57	57	5
15556YM8X8	15556YM8X8*	PG29/37,0	8x8mm	11	46	53	53	57	57	5
15556YM8X9	15556YM8X9*	PG29/37,0	8x9mm	11	46	53	53	57	57	5
15556YM12X6,4	15556YM12X6,4*	PG29/37,0	12x6,4mm	11	46	53	53	57	57	5
156YM1X5/1X9/1X11/1X19	156YM1X5/1X9/1X11/1X19	PG36/47,0	1x5mm, 1x9mm, 1x11mm, 1x19mm	13	47	53	53	57	57	5
156YM1X5/2X6,5/1X8,5/1X11	156YM1X5/2X6,5/1X8,5/1X11	PG36/47,0	1x5mm, 2x6,5mm, 1x8,5mm, 1x11mm	13	47	53	53	57	57	5
156YM1X5/3X8/1X8,5/1X9,5	156YM1X5/3X8/1X8,5/1X9,5	PG36/47,0	1x5mm, 3x8mm, 1x8,5mm, 1x9,5mm	13	47	53	53	57	57	5
156YM1X5SB/4X7/1X14	156YM1X5SB/4X7/1X14	PG36/47,0	1x5mm, 4x7mm, 1x14mm	13	47	53	53	57	57	5
156YM1X8/4X12,5	156YM1X8/4X12,5	PG36/47,0	1x8mm, 4x12,5mm	13	47	53	53	57	57	5
156YM1X9,5/2X13,5	156YM1X9,5/2X13,5	PG36/47,0	1x9,5mm, 2x13,5mm	13	47	53	53	57	57	5
156YM1X10/3X11,5	156YM1X10/3X11,5	PG36/47,0	1x10mm, 3x11,5mm	13	47	53	53	57	57	5
156YM1X11/1X21	156YM1X11/1X21	PG36/47,0	1x11mm, 1x21mm	13	47	53	53	57	57	5
156YM1X11/2X13	156YM1X11/2X13	PG36/47,0	1x11mm, 2x13mm	13	47	53	53	57	57	5
156YM1X12,5/1X16,5	156YM1X12,5/1X16,5	PG36/47,0	1x12,5mm, 1x16,5mm	13	47	53	53	57	57	5
156YM1X13/1X16,5	156YM1X13/1X16,5	PG36/47,0	1x13mm, 1x16,5mm	13	47	53	53	57	57	5
156YM1X14/1X17	156YM1X14/1X17	PG36/47,0	1x14mm, 1x17mm	13	47	53	53	57	57	5
156YM2X8/3X10	156YM2X8/3X10	PG36/47,0	2x8mm, 3x10mm	13	47	53	53	57	57	5
156YM2X9	156YM2X9	PG36/47,0	2x9mm	13	47	53	53	57	57	5
156YM2X15	156YM2X15	PG36/47,0	2x15mm	13	47	53	53	57	57	5
N9416250	156YM3X10	PG36/47,0	3x10mm	13	47	53	53	57	57	5
156YM3X14,5	156YM3X14,5	PG36/47,0	3x14,5mm	13	47	53	53	57	57	5
156YM4X7	156YM4X7	PG36/47,0	4x7mm	13	47	53	53	57	57	5
N9416253	156YM4X10,2	PG36/47,0	4x10,2mm	13	47	53	53	57	57	5
N9416254	156YM4X11,5	PG36/47,0	4x11,5mm	13	47	53	53	57	57	5
156YM4X12	156YM4X12	PG36/47,0	4x12mm	13	47	53	53	57	57	5
N9416256	156YM4X13	PG36/47,0	4x13mm	13	47	53	53	57	57	5
N9416257	156YM5X11,5	PG36/47,0	5x11,5mm	13	47	53	53	57	57	5
156YM6X10	156YM6X10	PG36/47,0	6x10mm	13	47	53	53	57	57	5
N9416259	156YM7X9	PG36/47,0	7x9mm	13	47	53	53	57	57	5
156YM8X8	156YM8X8	PG36/47,0	8x8mm	13	47	53	53	57	57	5
156YM8X9	156YM8X9	PG36/47,0	8x9mm	13	47	53	53	57	57	5
N9416263	156YM11X8	PG36/47,0	11x8mm	13	47	53	53	57	57	5
N9416264	156YM13X7	PG36/47,0	13x7mm	13	47	53	53	57	57	5
N9416265	156YM15X5	PG36/47,0	15x5mm	13	47	53	53	57	57	5
156YM16X6	156YM16X6	PG36/47,0	16x6mm	13	47	53	53	57	57	5

* Short sealing insert

Material:

PVDF V-0

Sealing ring:

TPE

Ingress protection:

IP65 / IP68

Temperature range:

-40°C....+130°C

Colour:

Transparent

Test standard:

EN 62444
