- PG7/12,5 (1)
- PG9/15,2 (1)
- PG11/18,6 (2)
- PG13,5/20,4 (1)
- PG16/22,5 (1)
- PG21/28,3 (1)
- PG29/37,0 (1)
- PG36/47,0 (1)
- PG42/54,0 (1)
- PG9/15,2 (1)
- PG11/18,6 (1)
- PG13,5/20,4 (1)
- PG16/22,5 (2)
- PG21/28,3 (1)
- PG29/37,0 (1)
- PG36/47,0 (1)
- PG42/54,0 (1)
- PG48/59,3 (1)
| E-number | Connection thread | Internal thread | L mm | L1 mm | Di mm | H mm | SW mm | E mm | Pcs/pack |
| 1464412 | PG7/12,5 | PG9/15,2 | 7 | 9.5 | 8.5 | 20 | 19 | 21 | 100 |
| 1464415 | PG9/15,2 | PG11/18,6 | 8 | 10 | 10 | 23 | 22 | 25 | 100 |
| 1464417 | PG11/18,6 | PG13,5/20,4 | 8 | 12.5 | 13.5 | 23 | 24 | 25 | 100 |

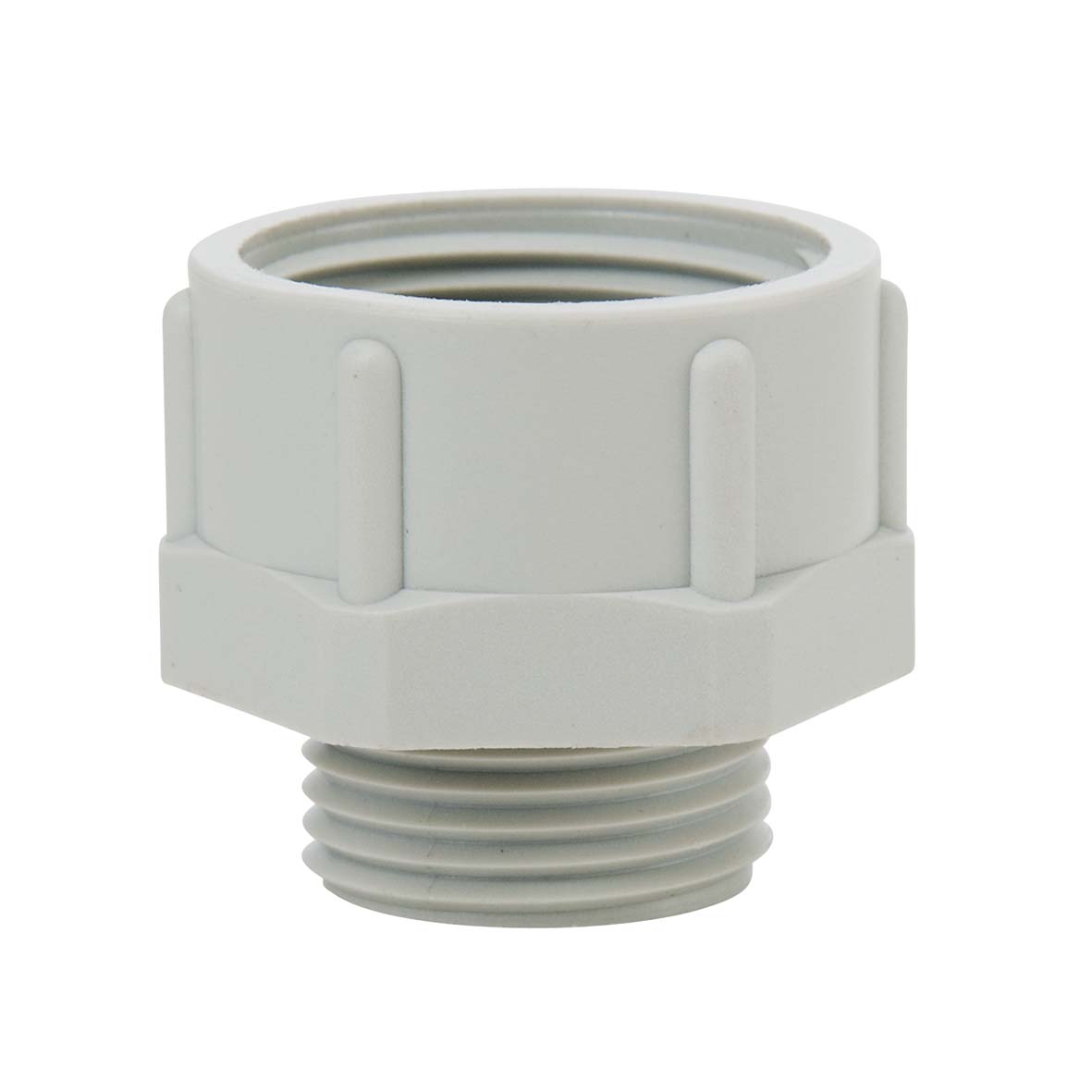

| 1464418 | PG11/18,6 | PG16/22,5 | 8 | 12.5 | 12.5 | 24,5 | 27 | 29.5 | 100 |
| 1464420 | PG13,5/20,4 | PG16/22,5 | 9 | 13.5 | 15 | 26 | 27 | 29.5 | 100 |
| 1464422 | PG16/22,5 | PG21/28,3 | 9 | 12 | 16 | 29 | 32 | 35.5 | 100 |
| 1464428 | PG21/28,3 | PG29/37,0 | 10 | 17 | 22.5 | 32 | 42 | 45.5 | 50 |
| 1464437 | PG29/37,0 | PG36/47,0 | 11 | 21.5 | 30.5 | 35,5 | 53 | 57 | 25 |
| 1464447 | PG36/47,0 | PG42/54,0 | 13 | 22 | 39.5 | 40,5 | 60 | 65 | 10 |
| 1464454 | PG42/54,0 | PG48/59,3 | 13 | 22.5 | 45.5 | 45,5 | 65 | 70.5 | 10 |
Material:
Polyamide 6 glass fibre reinforced
Temperature range:
-30°C....+100°C
Colour:
Lightgrey RAL 7035
Halogen-Free:
Yes
