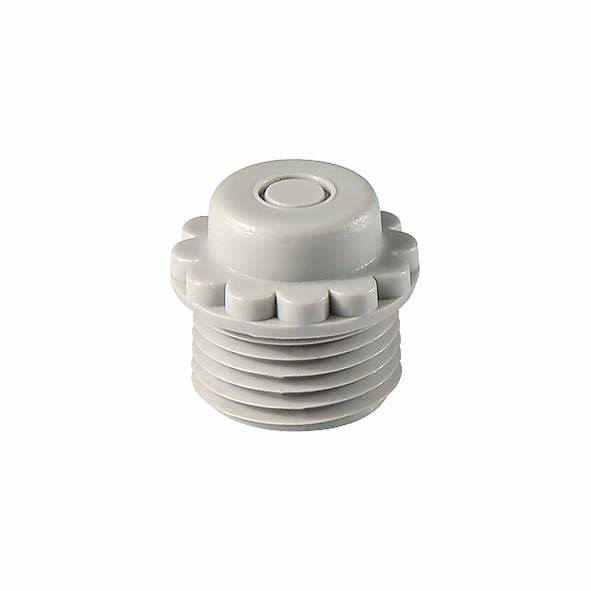

Twisting sleeve Polyethylene IP54 RAL 7035 PG
• Pierceable membrane
- PG9/15,2 (1)
- PG11/18,6 (1)
- PG13,5/20,4 (1)
- PG16/22,5 (1)
- PG21/28,3 (1)
- 6 - 8 (1)
- 7 - 10 (1)
- 9 - 12 (1)
- 9 - 14 (1)
- 11 - 17 (1)

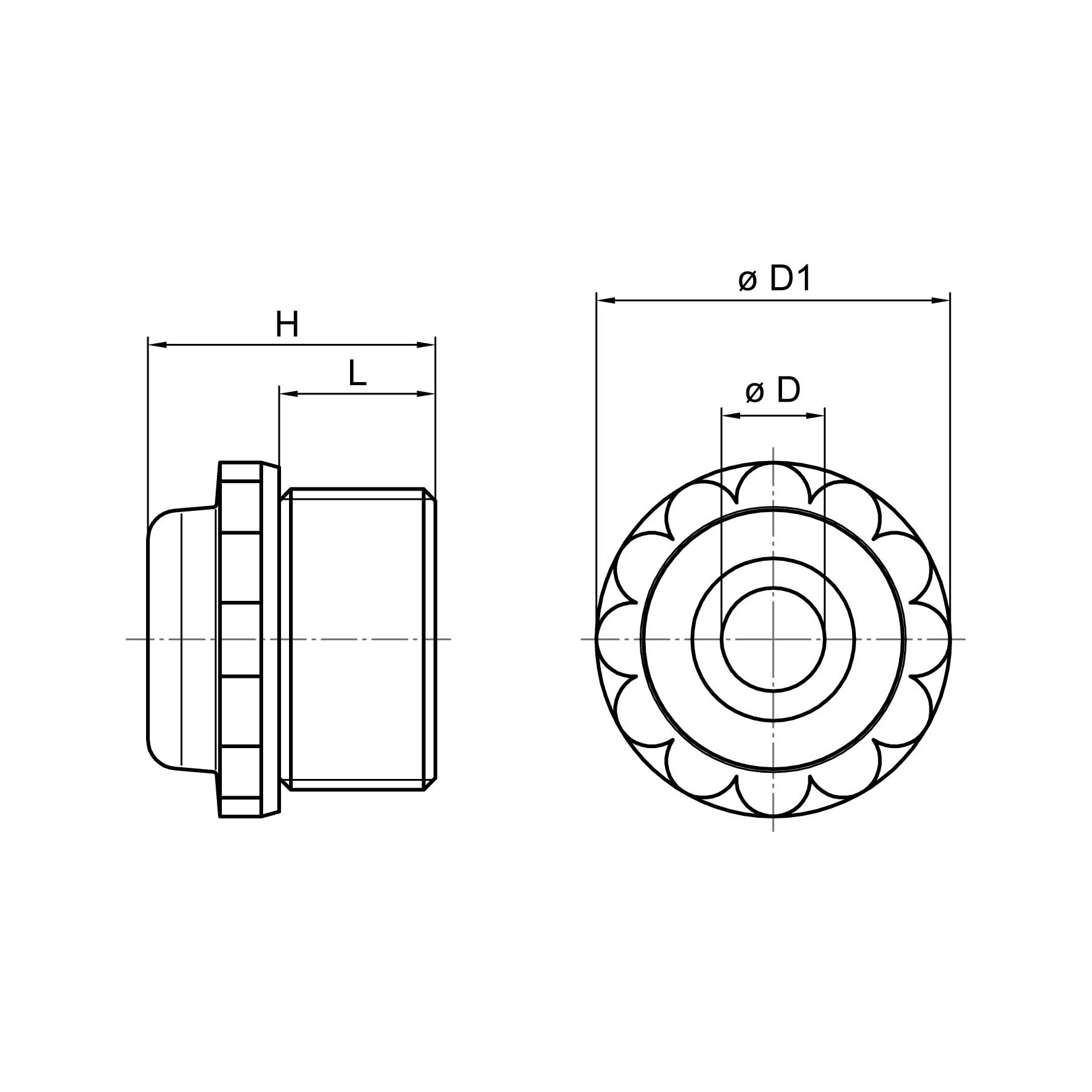

| E-number | Article no. | Connection thread | For cable Ø mm | L mm | Ø D mm | Ø D1 mm | H mm | Pcs/pack |
| 1457550 | 109 GG | PG9/15,2 | 6 - 8 | 8.1 | 5 | 19 | 16,5 | 200 |
| 1457551 | 111 GG | PG11/18,6 | 7 - 10 | 8.9 | 5.5 | 21 | 17,5 | 200 |
| 1457552 | 113 GG | PG13,5/20,4 | 9 - 12 | 10.6 | 7 | 24 | 19,5 | 200 |
| 1457553 | 116 GG | PG16/22,5 | 9 - 14 | 10.8 | 7.5 | 27 | 20 | 200 |
| 1457554 | 121 GG | PG21/28,3 | 11 - 17 | 12.5 | 9.5 | 33 | 22,8 | 100 |
Material:
Polyethylene PE-LD
Ingress protection:
IP54
Temperature range:
-30°C....+90°C
Colour:
Lightgrey RAL 7035
Halogen-Free:
Yes
