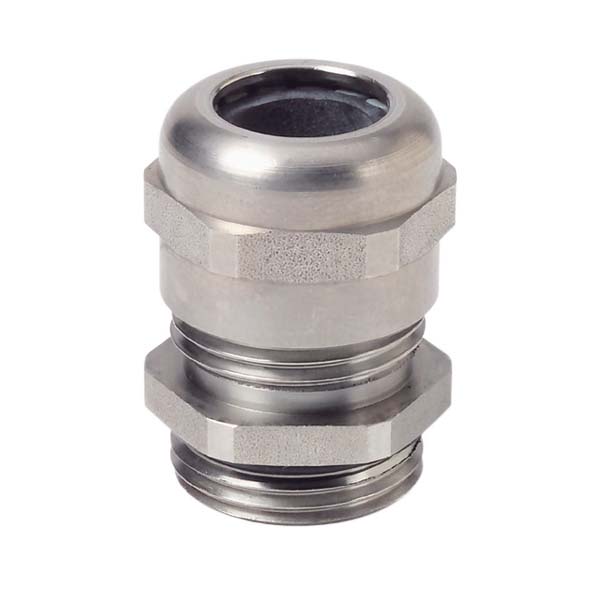

Cable Gland Stainless Steel IP68 Metric
1.4305 / AISI 303
- Integrated anchorage
- Protection against twisting by the construction of the lamellar insert.
- Easy-to-install
- M12x1,5 (1)
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)
- 3 - 6 (1)
- 5 - 9 (1)
- 9 - 13 (1)
- 11 - 16 (1)
- 14 - 20 (1)
- 19 - 27 (1)
- 24 - 35 (1)
- 32 - 42 (1)

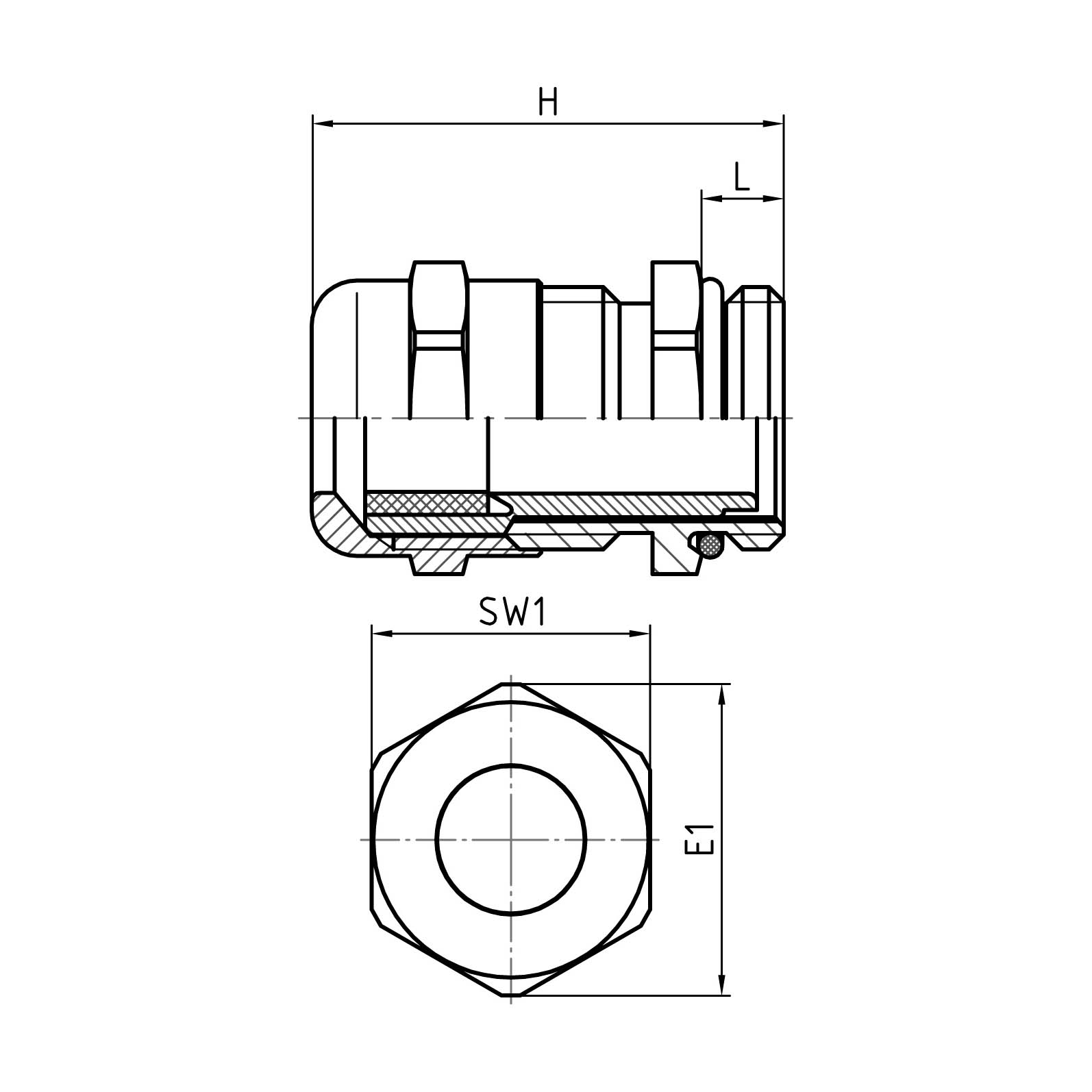

| E-number | Connection thread | For cable Ø mm | L mm | H mm | SW1 mm | E1 mm | Pcs/pack |
| 1475054 | M12x1,5 | 3 - 6 | 5 | 25 | 14 | 15.5 | 50 |
| 1475055 | M16x1,5 | 5 - 9 | 5 | 30 | 17 | 19 | 50 |
| 1475056 | M20x1,5 | 9 - 13 | 6 | 33,5 | 22 | 24 | 50 |
| 1475057 | M25x1,5 | 11 - 16 | 7 | 36,5 | 27 | 30 | 50 |
| 1475058 | M32x1,5 | 14 - 20 | 8 | 38 | 34 | 36 | 25 |
| 1475059 | M40x1,5 | 19 - 27 | 8 | 41 | 43 | 46 | 10 |
| 1475060 | M50x1,5 | 24 - 35 | 9 | 49,5 | 55 | 60 | 5 |
| 1475061 | M63x1,5 | 32 - 42 | 10 | 52,5 | 65 | 70 | 5 |
* IP69K tested for M12-M25, M50 & M63
Material:
Stainless Steel 1.4305
Lamellar insert:
Polyamide PA6 V-2
Sealing ring:
Polychloroprene-Nitrile rubber CR/NBR
O-ring:
Nitrile Rubber NBR
Ingress protection:
IP68 - 5 bar, IP69K*
Temperature range:
-20°C....+100°C (dynamisk)
-40°C (static, short term)
-40°C (static, short term)
Colour:
Stainless Steel
Test standard:
UL 514B
UL / CSA-File:
E140310
Halogen-Free:
Yes
