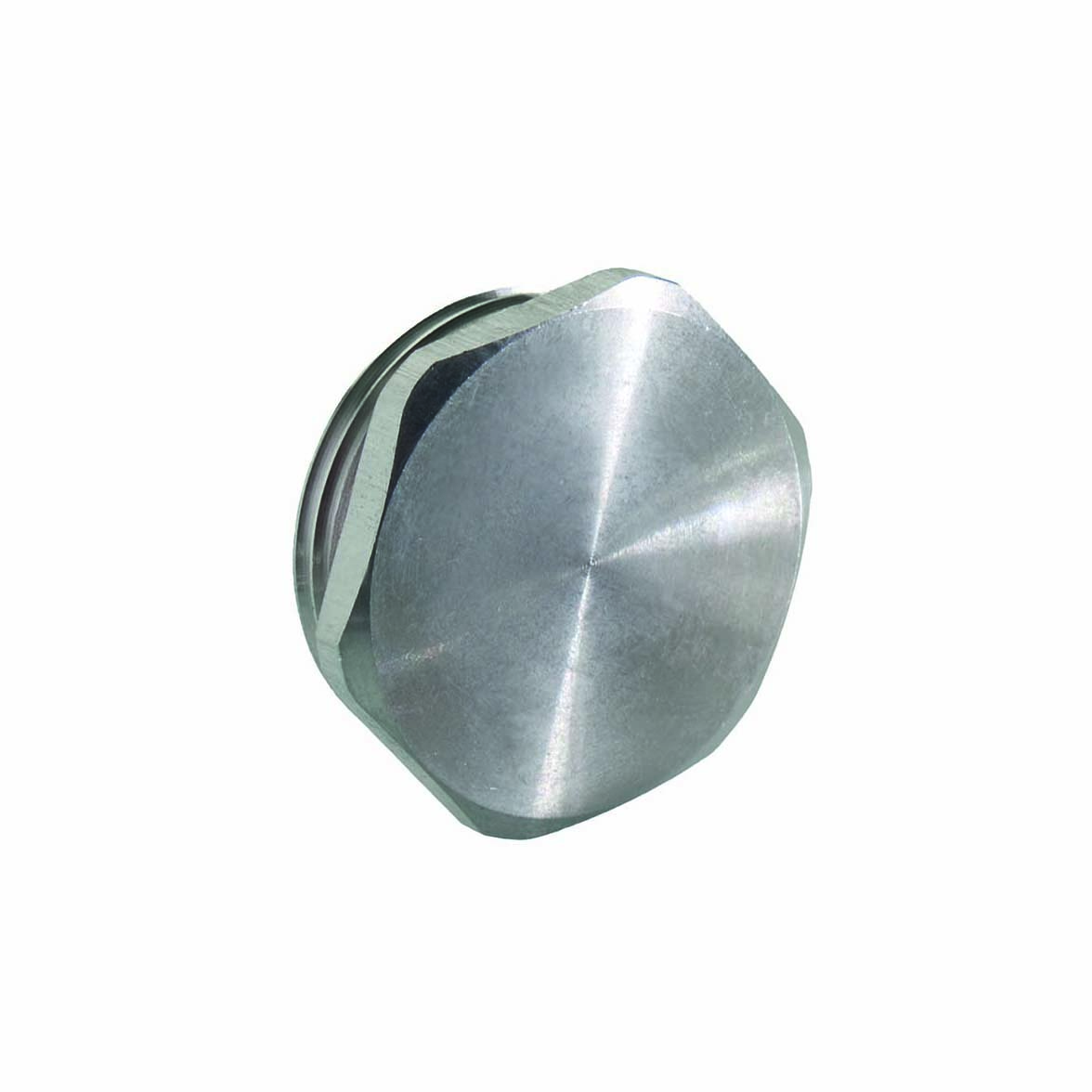

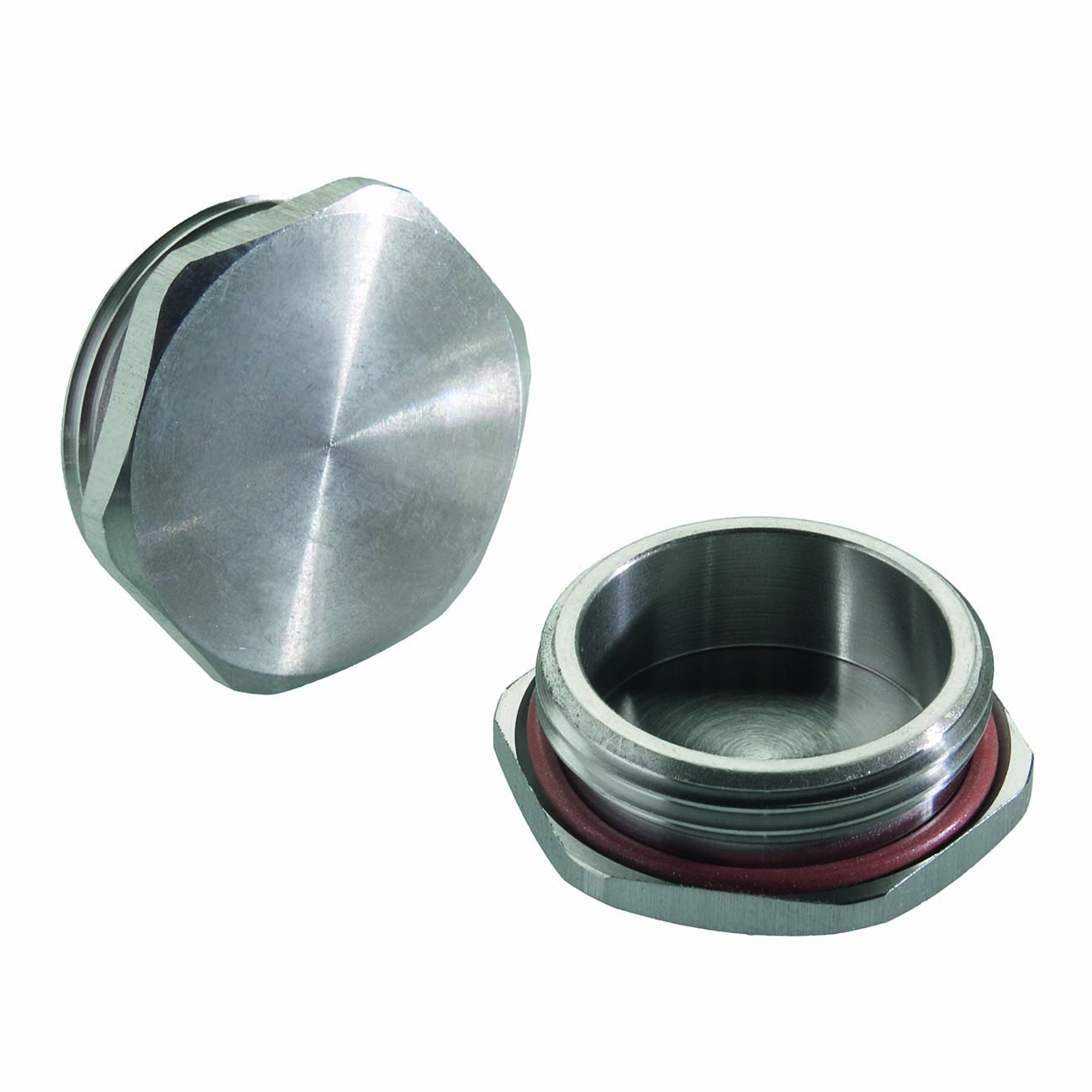

Screw plug Stainless Steel Hexagonal IP68 with O-ring Metric
1.4305 / AISI 303
- M16x1,5 (1)
- M20x1,5 (1)
- M25x1,5 (1)
- M32x1,5 (1)
- M40x1,5 (1)
- M50x1,5 (1)
- M63x1,5 (1)

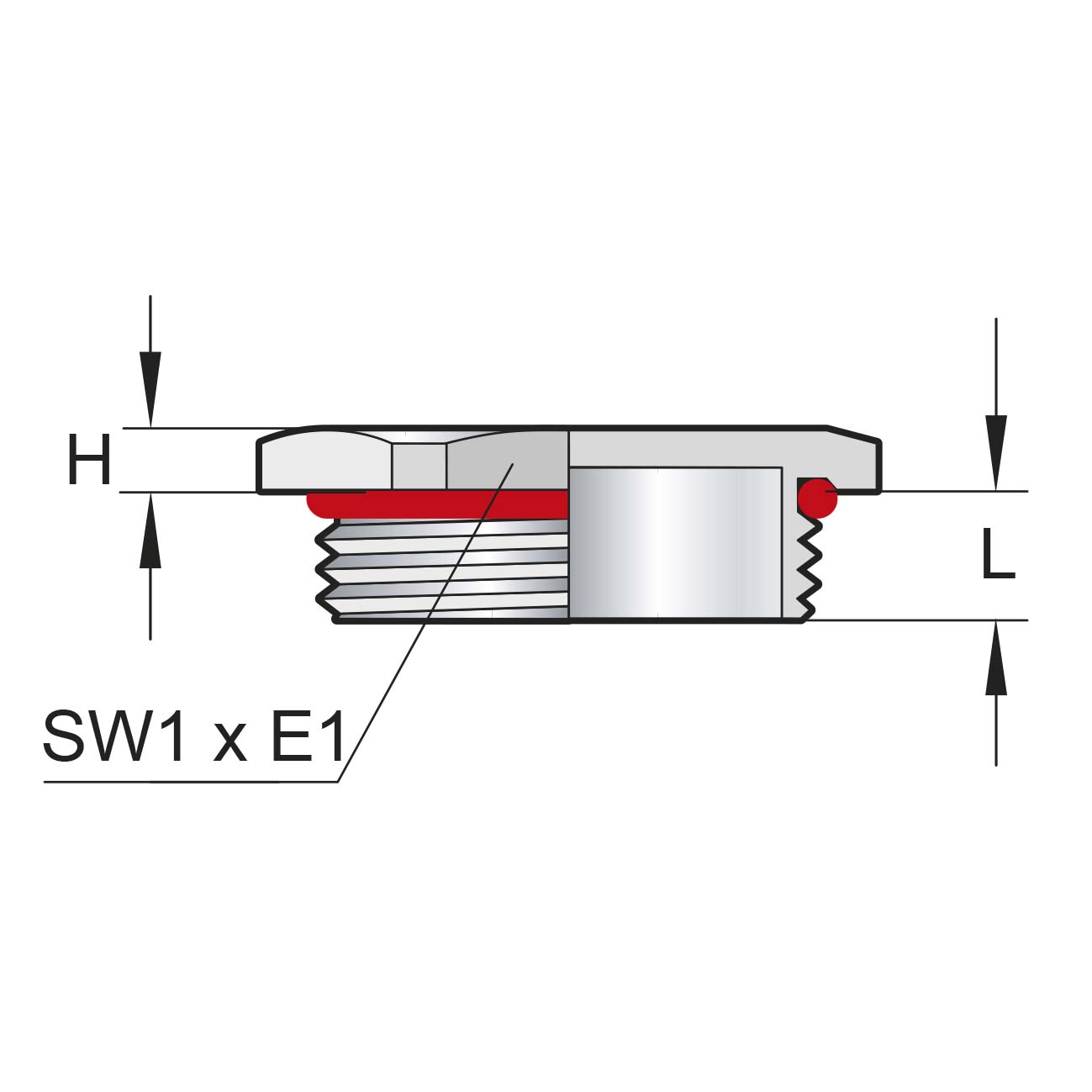

| Article no. | Connection thread | L mm | H mm | SW1 mm | E1 mm | Pcs/pack |
| 7216/DR/st | M16x1,5 | 6 | 3 | 19 | 21.1 | 50 |
| 7220/DR/st | M20x1,5 | 6.5 | 3 | 22 | 24.4 | 50 |
| 7225/DR/st | M25x1,5 | 6.5 | 3 | 27 | 29.6 | 50 |
| 7232/DR/st | M32x1,5 | 7 | 3,5 | 36 | 39.7 | 50 |
| 7240/DR/st | M40x1,5 | 8 | 4 | 43 | 47.3 | 25 |
| 7250/DR/st | M50x1,5 | 10 | 7 | 55 | 59 | 10 |
| 7263/DR/st | M63x1,5 | 16 | 8 | 68 | 74 | 10 |
Material:
Stainless Steel 1.4305
O-ring:
Silicone
Ingress protection:
IP68 up to 10 bar
Temperature range:
-60°C....+200°C
Colour:
Stainless Steel
