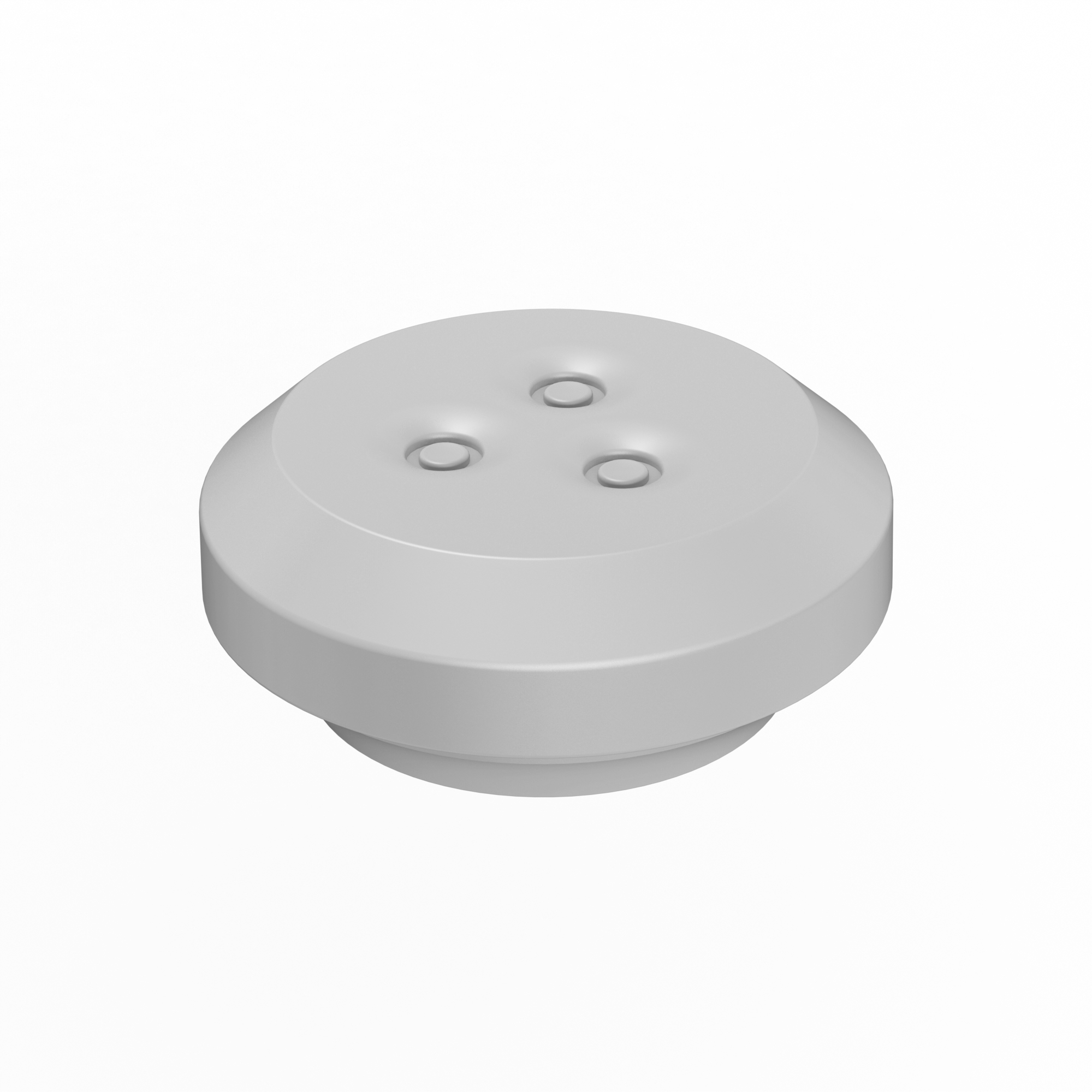

TSS MULTI RAL7035 PG
Suitable for holes in material of 0,5 - 3,5 mm thickness.
- Quick and simple assembly without the use of tools
- Handles exceptionally large cable span
- An end-plug for all applications
- PG11/18,6 (1)
- PG16/22,5 (1)
- 3 x 4 - 6 (1)
- 3 x 4 - 8 (1)
E-number | Size | For cable Ø mm | A mm | B mm | D* mm | D1 mm | H mm | H1 mm | H2* mm | Pcs/pack |
TSS PG11 3x4-6 RAL7035 | PG11/18,6 | 3 x 4 - 6 | 19 | 0,5 - 3 | 26 | 3 | 11 | 4 | 6.75 | 50 |
TSS PG16 3x4-8 RAL7035 | PG16/22,5 | 3 x 4 - 8 | 23 | 0,5 - 3,5 | 30 | 3 | 11 | 4 | 6.75 | 50 |
Information_Klikseal:
(1) Unstressed material.
* Varies depending on the thickness of material installed in.
Material:
TPE - Thermoplastic Elastomer - UL listed material
Ingress protection:
IP67
Temperature range:
-50°C....+125°C (1)
Colour:
Lightgrey RAL 7035
Test standard:
EN60670-1:2005+A1:2013
Semko report:
SE-S-2100893
Halogen-Free:
Yes
