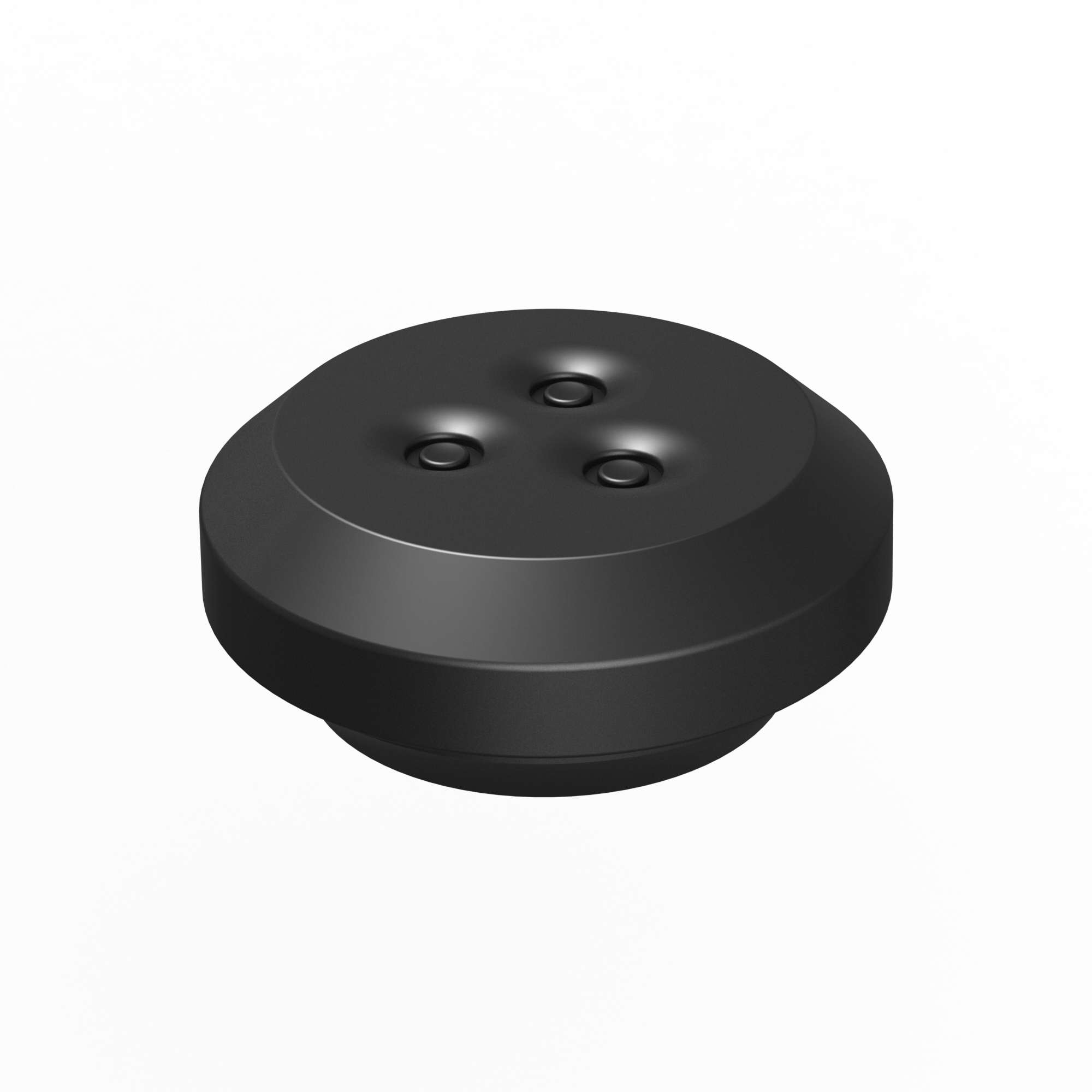

TSS MULTI RAL9005 V0 Metric
Suitable for holes in material of 0,5 - 3,5 mm thickness.
- Quick and simple assembly without the use of tools
- Handles exceptionally large cable span
- An end-plug for all applications
- Material is UL94 V0 classified
- M20 (1)
- M25 (1)
- 3 x 4 - 7 (1)
- 3 x 4 - 9 (1)
E-number | Size | For cable Ø mm | A mm | B mm | D* mm | D1 mm | H mm | H1 mm | H2* mm | Pcs/pack |
1475770 | M20 | 3 x 4 - 7 | 20.5 | 0,5 - 3 | 27.5 | 3 | 11 | 4 | 6.75 | 50 |
1475771 | M25 | 3 x 4 - 9 | 25.5 | 0,5 - 3,5 | 32.5 | 3 | 11 | 4 | 6.75 | 50 |
Information_Klikseal:
(1) Unstressed material.
* Varies depending on the thickness of material installed in.
Material:
TPE V0 - Thermoplastic Elastomer - UL listed material
Ingress protection:
IP67
Temperature range:
-40°C....+80°C (1)
Colour:
Black RAL 9005
Test standard:
EN60670-1:2005+A1:2013
Semko report:
SE-S-2100893
Halogen-Free:
Yes
