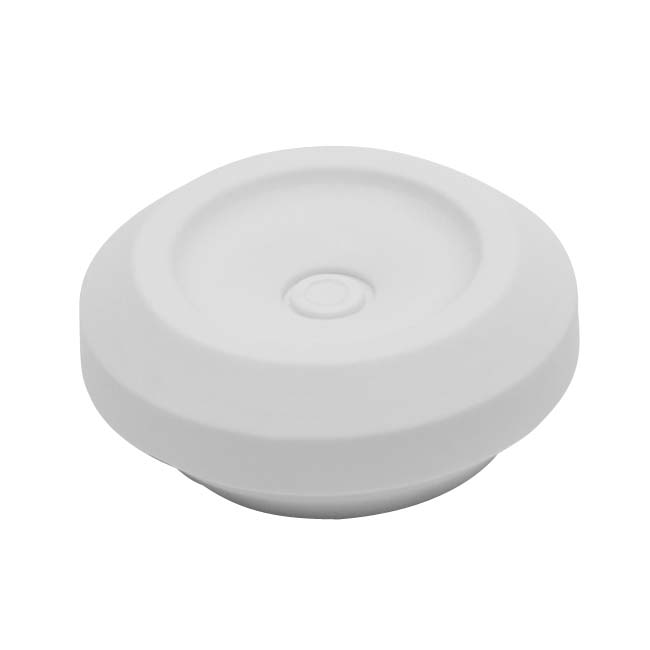

TSS RAL9010 Metric
Suitable for holes in material of 0,5 - 4,5 mm thickness.
- Quick and simple assembly without the use of tools
- Handles exceptionally large cable span
- An end-plug for all applications
- M16 (1)
- M20 (1)
- M25 (1)
- M32 (1)
- M40 (1)
- 5 - 10 (1)
- 6 - 13 (1)
- 8 - 17 (1)
- 12 - 24 (1)
- 19 - 31 (1)
| E-number | Size | For cable Ø mm | A mm | B mm | D* mm | D1 mm | H mm | H1 mm | H2* mm | Pcs/pack |
| 1475721 | M16 | 5 - 10 | 16.5 | 0,5 - 3 | 23.5 | 4 | 11 | 4 | 6.75 | 50 |
| 1475722 | M20 | 6 - 13 | 20.5 | 0,5 - 3 | 27.5 | 5 | 11 | 4 | 6.75 | 50 |
| 1475723 | M25 | 8 - 17 | 25.5 | 0,5 - 3,5 | 32.5 | 7 | 11 | 4 | 6.75 | 50 |
| 1475724 | M32 | 12 - 24 | 32.5 | 0,5 - 4,5 | 39.5 | 11 | 11 | 4 | 6.75 | 25 |
| 1475725 | M40 | 19 - 31 | 40.5 | 1,5 - 4,5 | 47.5 | 18 | 13.5 | 4.84 | 7.41 | 25 |
(1) Unstressed material.
* Varies depending on the thickness of material installed in.
Material:
TPE - Thermoplastic Elastomer - UL listed material
Ingress protection:
IP67
Temperature range:
-50°C....+125°C (1)
Colour:
White RAL 9010
Test standard:
EN60670-1:2005+A1:2013
Semko report:
SE-S-2100893
Halogen-Free:
Yes
