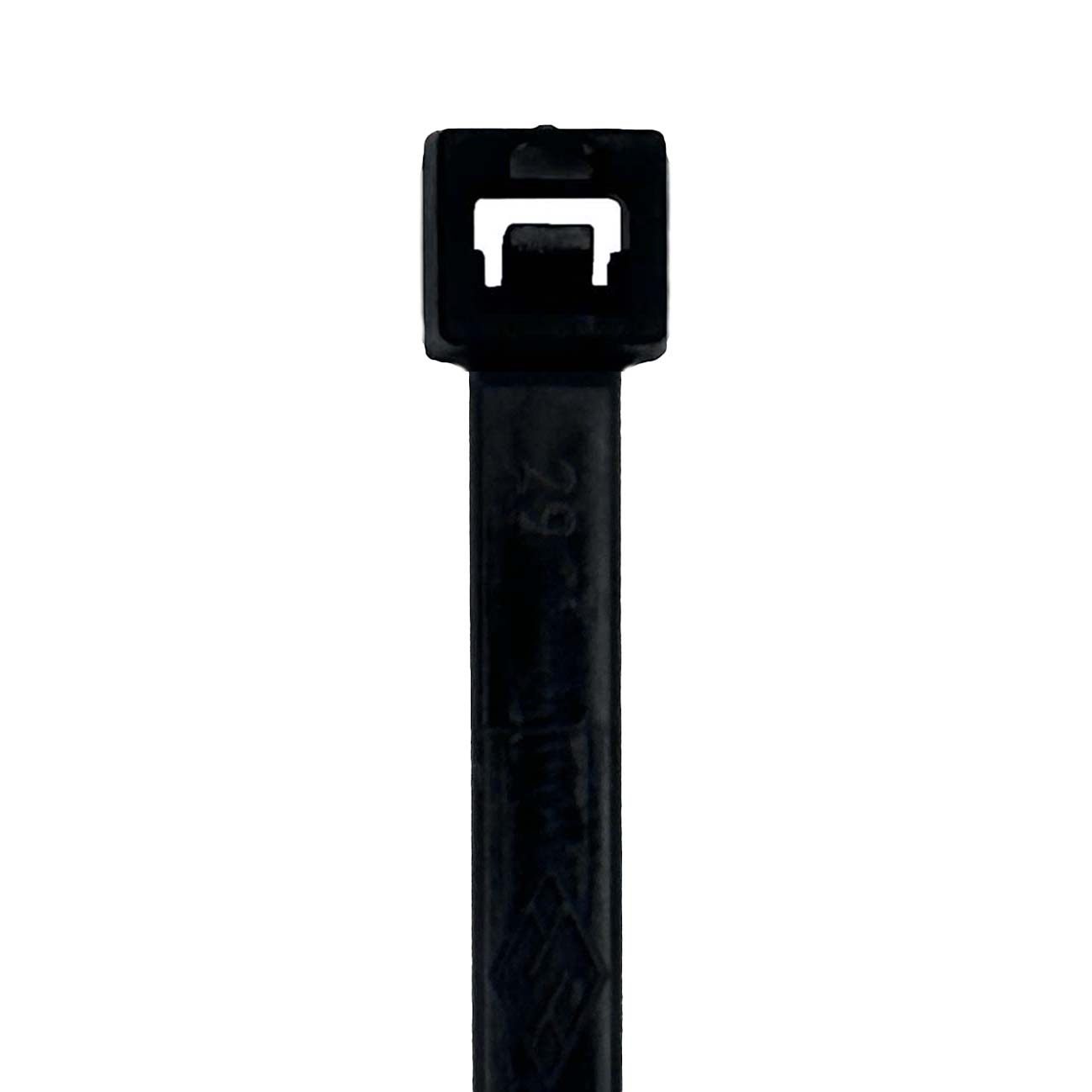

Nylon cable ties - SEL - black
Self-extinguishing Nylon cable ties (UL94:V2). They consist of a body with an internal rack with smooth rounded edges and a square head with polyamide tightening tooth.
The product comes in a wide range of sizes to meet every application need, with tensile strengths in the range:
80N / 8kg – 980N / 98kg
Selfit standard cable ties can be applied by hand or with a cable tie tensioning tool.
Transparent color on request.
- 75x2,5 (1)
- 100x2,5 (1)
- 135x2,5 (1)
- 160x2,5 (1)
- 200x2,5 (1)
- 140x3,5 (1)
- 200x3,5 (1)
- 225x3,5 (1)
- 250x3,5 (1)
- 280x3,5 (1)
- 360x3,5 (1)
- 140x4,5 (1)
- 160x4,5 (1)
- 180x4,5 (1)
- 200x4,5 (1)
- 250x4,5 (1)
- 280x4,5 (1)
- 300x4,5 (1)
- 360x4,5 (1)
- 380x4,5 (1)
- 430x4,5 (1)
- 360x6,0 (1)
- 180x7,5 (1)
- 200x7,5 (1)
- 240x7,5 (1)
- 280x7,5 (1)
- 320x7,5 (1)
- 360x7,5 (1)
- 450x7,5 (1)
- 500x7,5 (1)
- 540x7,5 (1)
- 750x7,5 (1)
- 430x9,0 (1)
- 550x9,0 (1)
- 780x9,0 (1)
- 920x9,0 (1)
- 1220x9,0 (1)
- 1330x9,0 (1)
- 250x12,5 (1)
- 500x12,5 (1)
- 750x12,5 (1)
- 1000x12,5 (1)
| E-number | Article no. | Size | Max. Bundle Ø, mm | Tensile Strength | Pcs/pack |
| 1519525 | SEL.3.201R | 75x2,5 | 16 | 80 N / 8 kg | 100/5000 |
| 1519509 | SEL.3.202 | 100x2,5 | 24 | 80 N / 8 kg | 100/30000 |
| 1519510 | SEL.3.203R | 135x2,5 | 35 | 80 N / 8 kg | 100/5000 |
| 1519511 | SEL.3.204R | 160x2,5 | 40 | 80 N / 8 kg | 100/5000 |
| 1519512 | SEL.3.205 | 200x2,5 | 55 | 80 N / 8 kg | 100/20000 |
| 1519513 | SEL.3.210 | 140x3,5 | 36 | 150 N / 15 kg | 100/20000 |
| 1519514 | SEL.3.211 | 200x3,5 | 55 | 150 N / 15 kg | 100/12000 |
| 1519526 | SEL.3.215R | 225x3,5 | 65 | 150 N / 15 kg | 100/5000 |
| 1519527 | SEL.3.216R | 250x3,5 | 68 | 150 N / 15 kg | 100/5000 |
| 1519515 | SEL.3.212R | 280x3,5 | 80 | 150 N / 15 kg | 100/5000 |
| 1519528 | SEL.3.214R | 360x3,5 | 103 | 150 N / 15 kg | 100/4000 |
| 1519529 | SEL.3.220R | 140x4,5 | 33 | 220 N / 22 kg | 100/5000 |
| 1519530 | SEL.3.221R | 160x4,5 | 38 | 220 N / 22 kg | 100/5000 |
| 1519531 | SEL.3.222R | 180x4,5 | 45 | 220 N / 22 kg | 100/5000 |
| 1519516 | SEL.3.223 | 200x4,5 | 51 | 220 N / 22 kg | 100/10000 |
| 1519532 | SEL.3.224R | 250x4,5 | 68 | 220 N / 22 kg | 100/5000 |
| 1519517 | SEL.3.425 | 280x4,5 | 76 | 220 N / 22 kg | 100/10000 |
| 1519533 | SEL.3.429R | 300x4,5 | 82 | 220 N / 22 kg | 100/4000 |
| 1519524 | SEL.3.426 | 360x4,5 | 101 | 220 N / 22 kg | 100/8000 |
| 1519518 | SEL.3.427 | 380x4,5 | 110 | 220 N / 22 kg | 100/7000 |
| 1519534 | SEL.3.428R | 430x4,5 | 123 | 220 N / 22 kg | 100/2500 |
| 1519535 | SEL.3.447R | 360x6,0 | 101 | 400 N / 40 kg | 100/1500 |
| 1519536 | SEL.3.430R | 180x7,5 | 44 | 460 N / 46 kg | 100/2500 |
| 1519519 | SEL.3.432R | 200x7,5 | 48 | 460 N / 46 kg | 100/2500 |
| 1519537 | SEL.3.431R | 240x7,5 | 62 | 460 N / 46 kg | 100/2000 |
| 1519520 | SEL.3.433R | 280x7,5 | 76 | 460 N / 46 kg | 100/2000 |
| 1519538 | SEL.3.438R | 320x7,5 | 88 | 460 N / 46 kg | 100/1500 |
| 1519521 | SEL.3.434 | 360x7,5 | 101 | 460 N / 46 kg | 100/3000 |
| 1519539 | SEL.3.435R | 450x7,5 | 130 | 460 N / 46 kg | 100/1000 |
| 1519540 | SEL.3.436R | 500x7,5 | 145 | 460 N / 46 kg | 100/1000 |
| 1519541 | SEL.3.437R | 540x7,5 | 160 | 460 N / 46 kg | 100/1000 |
| 1519542 | SEL.3.441R | 750x7,5 | 220 | 460 N / 46 kg | 100/700 |
| 1519543 | SEL.3.144R | 430x9,0 | 118 | 680 N / 68 kg | 100/1000 |
| 1519544 | SEL.3.142R | 550x9,0 | 160 | 680 N / 68 kg | 100/700 |
| 1519522 | SEL.3.143R | 780x9,0 | 235 | 680 N / 68 kg | 100/500 |
| 1519545 | SEL.3.154R | 920x9,0 | 280 | 680 N / 68 kg | 100/500 |
| 1519546 | SEL.3.155R | 1220x9,0 | 375 | 680 N / 68 kg | 100/500 |
| 1519547 | SEL.3.156 | 1330x9,0 | 409 | 680 N / 68 kg | 100/500 |
| 1519548 | SEL.3.450R | 250x12,5 | 62 | 980 N / 98 kg | 50/1000 |
| 1519549 | SEL.3.451R | 500x12,5 | 140 | 980 N / 98 kg | 50/500 |
| 1519523 | SEL.3.452R | 750x12,5 | 222 | 980 N / 98 kg | 50/500 |
| 1519550 | SEL.3.453R | 1000x12,5 | 300 | 980 N / 98 kg | 50/500 |
Material:
Nylon 6.6 V2
Colour:
Black
