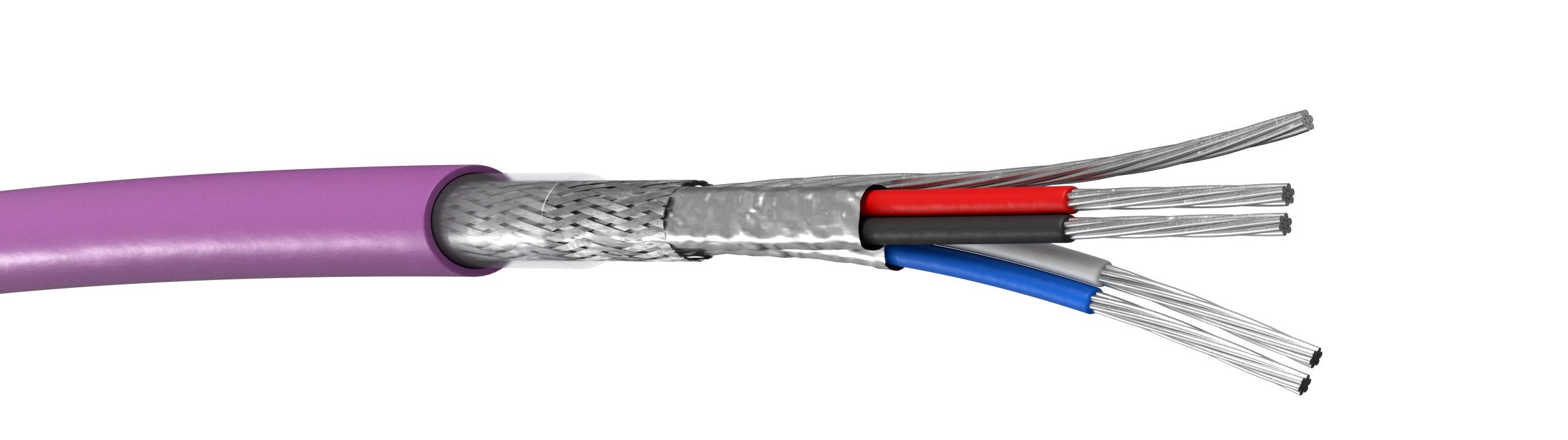

DeviceNet PVC

PVC sheathed Trunk & Drop cable for DeviceNet

Create product sheet (PDF)

Questions/Order

Rated Voltage Uo/U control cores:

300V

Conductor class:

19-wire

Conductor material:

Tinned Copper

Core insulation:

Supply cores: PVC, Control cores: PE

Pair screen:

Aluminium foil

Overall shield:

Aluminum foil+tinned drain wire and braided tinned copper wire

Outer sheath:

PVC

Sheat colour:

Grey

Bending radius fixed:

7,5 x cable diameter

Bending radius moved:

15 x cable diameter

Min operating temperature fixed:

-40°C

Max operating temperature fixed:

+80°C

Min operating temperature moved:

-10°C

Max operating temperature moved:

+70°C

Testing voltage:

1500V

Capacitance:

40,0 nF/km

Flame retardant:

IEC 60332-1
