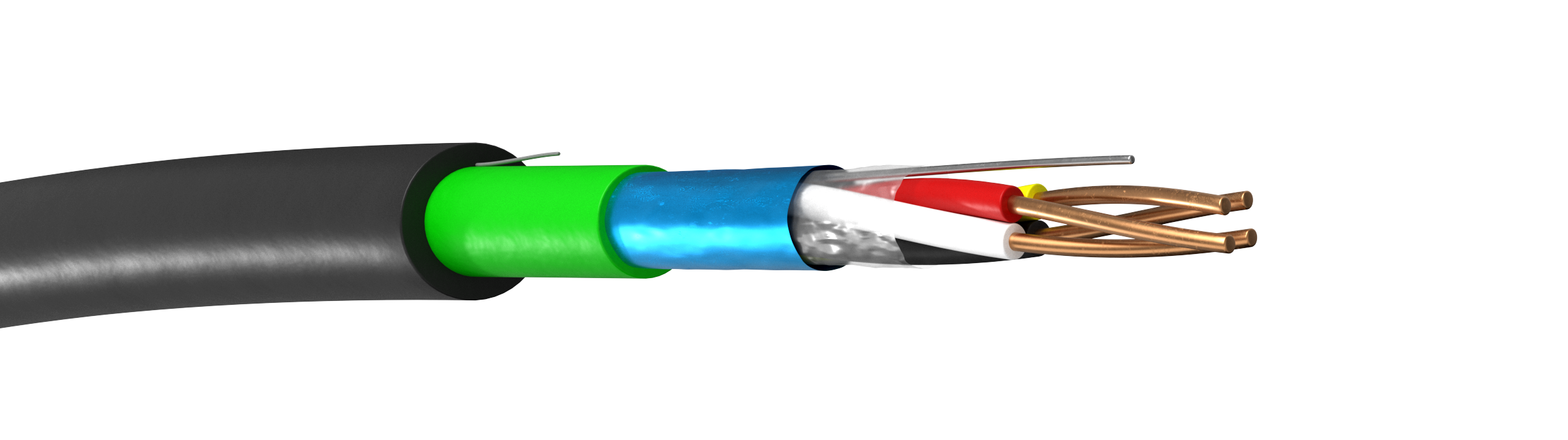

KNX Outdoor
Halogen free KNX cable for outdoor use
Rated Voltage Uo/U:
300/300V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
Halogen free compund
Core identification:
Colour coded acc. to EIBA-standard
Inner sheath material:
Halogen free specialmix
Overall shield:
Aluminum/polyester foil with tinned drain wire
Outer sheath:
Halogen free mix
Sheat colour:
Black
Bending radius fixed:
10 x cable diameter
Lowest installation temperature:
-5°C
Insulation resistance:
>10 MOhm x km
Capacitance:
<100nF/m (Ledare/Ledare)
Inductance:
> 0,85 µH/m
Halogen-free acc. to:
IEC 60754
Flame retardant:
IEC 60332-1
