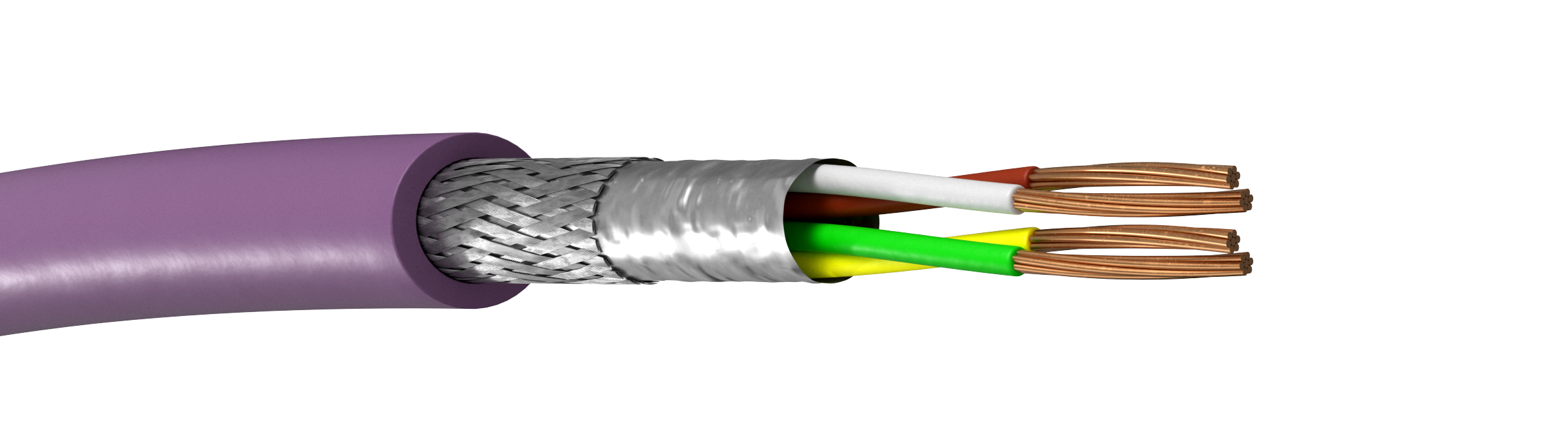

Novotronic CAN-BUS CP 120 Ohm
UV-resistant CAN-BUS dragchain cable
- 2 (3)
- 4 (3)
- 0.25 (2)
- 0.34 (2)
- 0.5 (2)
- No (6)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N7780610 | 1x2x0,25 | 6.4 | 4 |
| N7780620 | 2x2x0,25 | 8.4 | 7 |
| N7780630 | 1x2x0,34 | 6.8 | 6 |
| N7780640 | 2x2x0,34 | 9.6 | 8.8 |
| N7780650 | 1x2x0,5 | 8 | 7.4 |
| N7780660 | 2x2x0,5 | 10.4 | 10 |
Approvals:
UL/CSA: cULus 300V, 75°C, CMX
Rated Voltage Uo/U:
250V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
PE/PP
Core identification:
Colour coded acc. to DIN 47100
Overall shield:
Aluminum foil and braided tinned copper wire
Outer sheath:
PUR
Sheat colour:
Violet RAL 4001
Bending radius fixed:
5 x cable diameter
Bending radius moved:
15 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-30°C
Max operating temperature moved:
+70°C
Max. speed / travel distance:
4 m/s ostöttat
Max. acceleration:
5 m/s²
Testing voltage:
Core/Core 1500V
Conductor resistance:
max. 175 Ohm/km
Impedance:
approx. 120 Ohm
Flame retardant:
IEC 60332-1, UL1581 VW1
