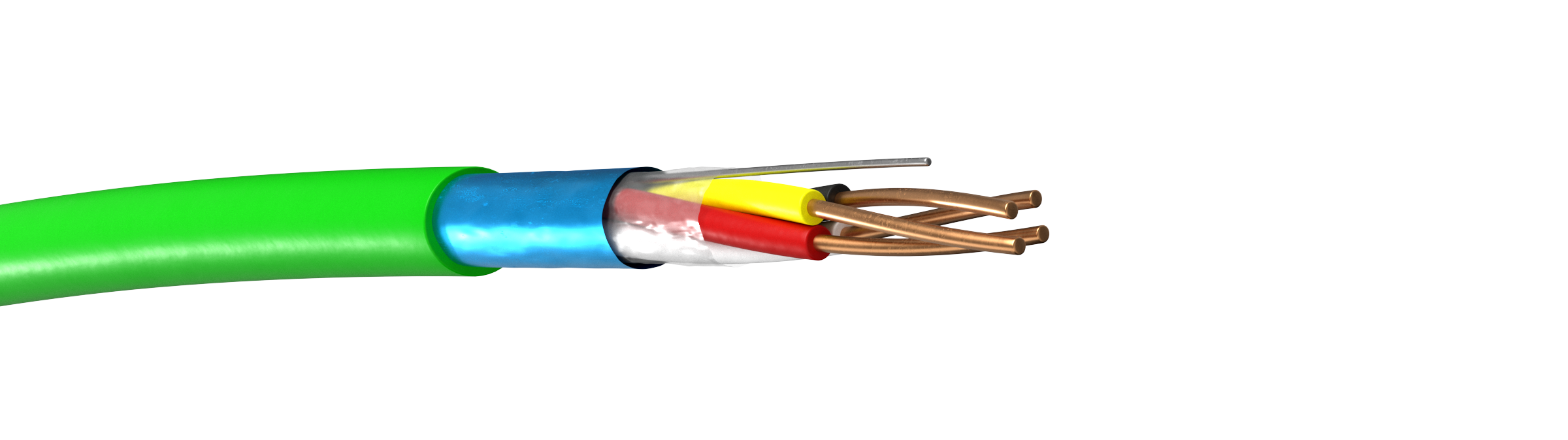

Novotronic J-H(St)Hh-KNX-CPR
Halogen free KNX/EIB-bus cable
- 4 (3)
- 0.8 (3)
- No (3)
| Dimension n x Ø mm | Outer diameter mm | Weight kg/100m | Colour | Length | Packaging type |
| 2x2x0,8 | 5.3 | 4.7 | Green | - | - |
| 2x2x0,8 | 5.3 | 4.7 | Green | 100 meters | Ring |
| 2x2x0,8 | 5.3 | 4.7 | Green | 500 meters | Drum |
Rated Voltage Uo/U:
300/300V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
Halogen free special compound
Core identification:
Colour coded acc. to EIBA-standard
Fabric lapping:
Polyester foil
Overall shield:
Aluminum/polyester foil with tinned drain wire
Bending radius fixed:
10 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Testing voltage:
4000V
Insulation resistance:
>10 MOhm x km
Loop resistance:
72,0 Ohm/km
Capacitance:
<100nF/m (Ledare/Ledare)
Inductance:
> 0,85 µH/m
Burning behavior CPR:
Cca-s1b,d0,a1
Flame retardant:
IEC 60332-1
