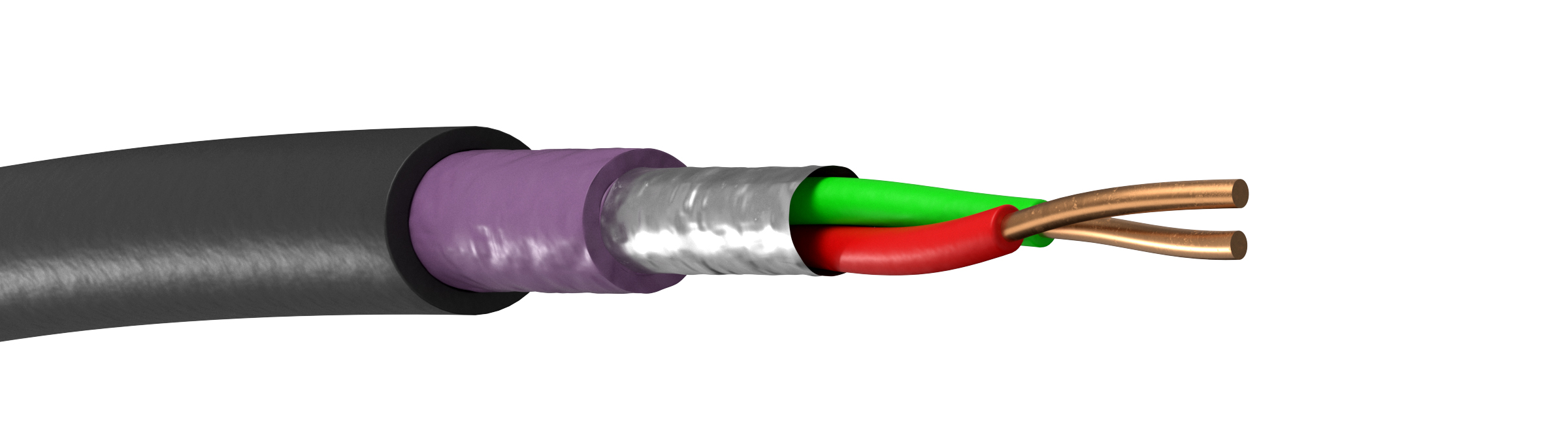

Novotronic Profibus L2-DP/FIP UV
Industrial fieldbus cable for outdoor use
Rated Voltage Uo/U control cores:
100V
Conductor class:
Class 1 = solid wire
Conductor material:
Copper
Core insulation:
PE
Core identification:
Red and Green
Inner sheath material:
Special PVC
Overall shield:
Aluminum foil and braided tinned copper wire
Outer sheath:
PE
Sheat colour:
Black
Bending radius fixed:
300mm
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Testing voltage:
3600V/3 sec.
Conductor resistance:
max. 110 Ohm/km
Insulation resistance:
≥16 000 Mohm x km
Capacitance:
28,5 nF/km
Attenuation:
at 16 mHz <45 dB/km, at 4 mHz <22 dB/km, at 38,4 mHz <5,0 dB/km, at 9,6 mHz <3,0 dB/km
Impedance:
Nominal value 150 Ohm, 3-20 MHz 150±15 Ohm, 38,4 kHz 185±18,5 Ohm, 270±27 Ohm
Flame retardant:
IEC 60332-1
