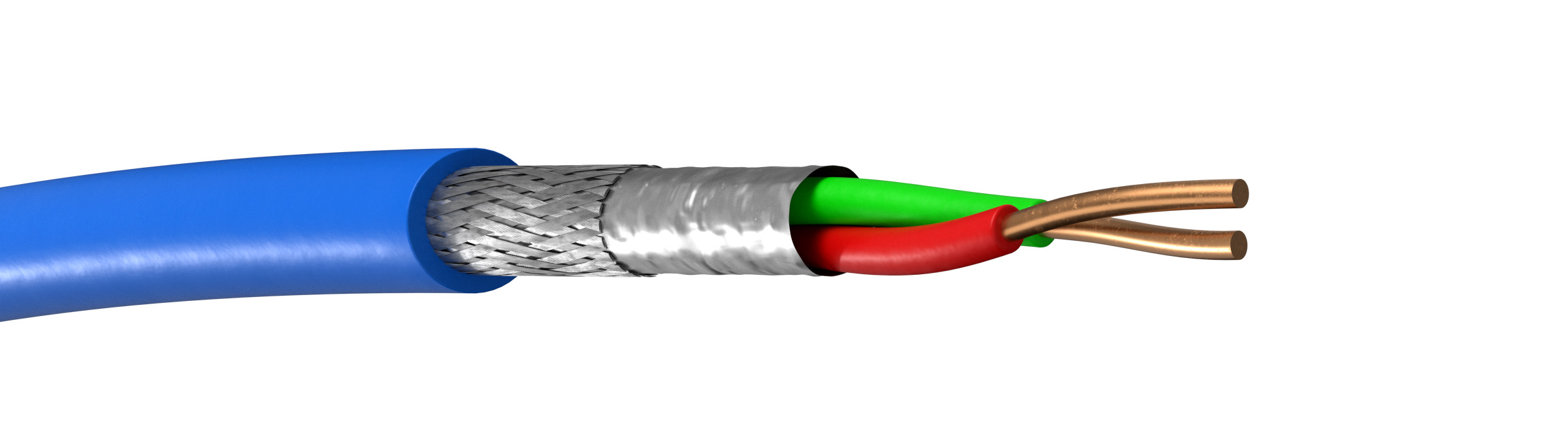

Novotronic Profibus PA

Industrial fieldbus cable for Process Automation(PA)
Rated Voltage Uo/U:
250V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PE/PP
Core identification:
Red and Green
Overall shield:
Aluminum foil and braided tinned copper wire
Outer sheath:
PVC
Sheat colour:
Black or blue
Bending radius fixed:
7,5 x cable diameter
Bending radius moved:
15 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-10°C
Max operating temperature moved:
+70°C
Testing voltage:
1500V
Loop resistance:
39,0 Ohm/km
Capacitance:
52,0 nF/km
Impedance:
100 Ohm
Flame retardant:
IEC 60332-1
