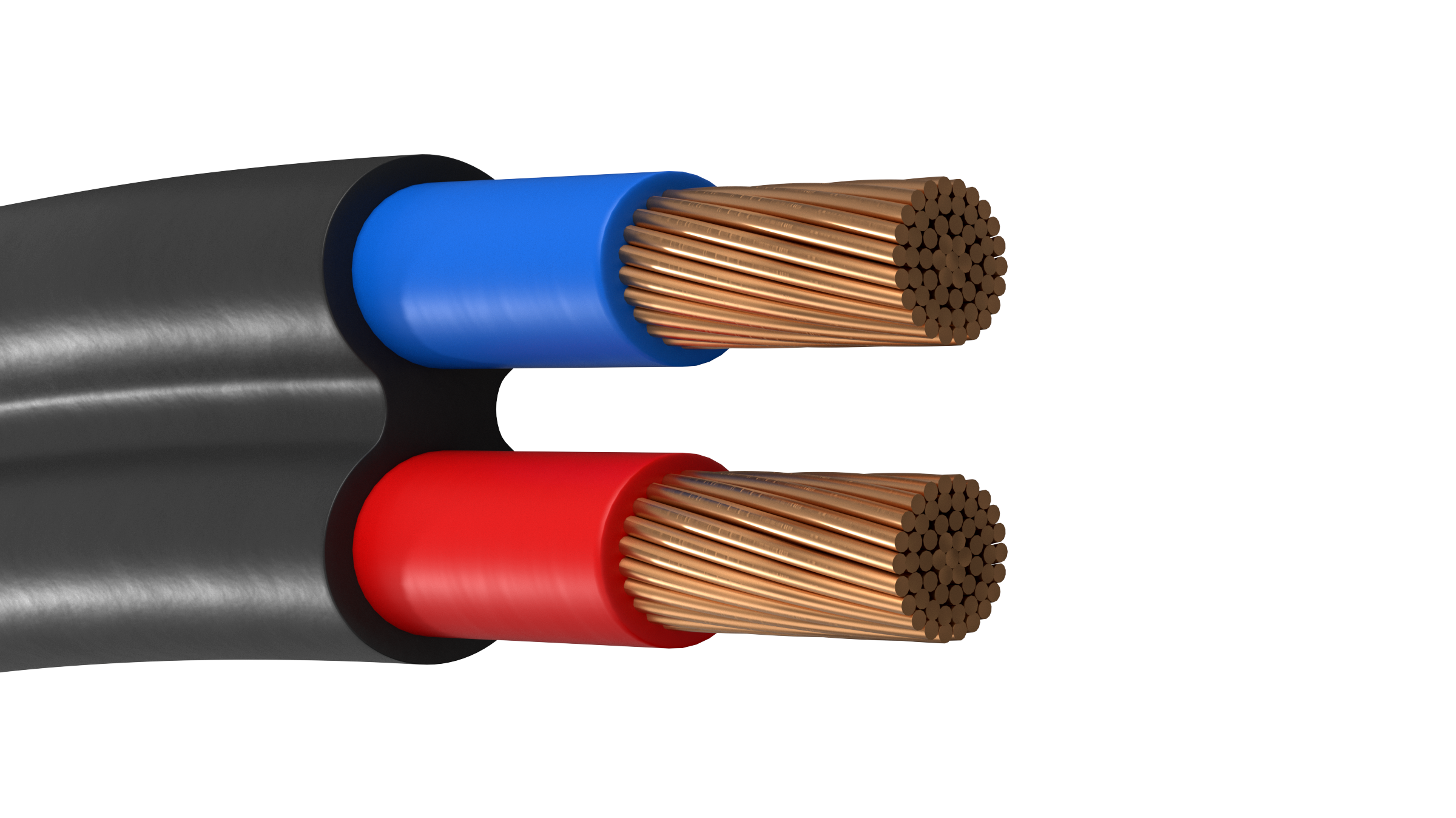

BITFLEX TWIN HF
Halogen free battery cable
- 2 (5)
- 10 (1)
- 16 (1)
- 25 (1)
- 35 (1)
- 50 (1)
- No (5)
| E-number | Dimension n x mm² | Outer dimensions H x B mm | Weight kg/100m |
| 0506430 | 2x10 | 7,2 x 14,8 | 28.8 |
| 0506440 | 2x16 | 9,3 x 19,3 | 37.5 |
| 0506450 | 2x25 | 11,2 x 23,5 | 63 |
| 0506460 | 2x35 | 13,5 x 26,3 | 80 |
| 0506470 | 2x50 | 14,3 x 30,2 | 113 |
Standard:
VDE 0250 cl. 6
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
TPE
Core identification:
Red and Blue
Outer sheath:
TPE
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+90°C
Min operating temperature moved:
-30°C
Max operating temperature moved:
+90°C
Flame retardant:
IEC 60332-1
