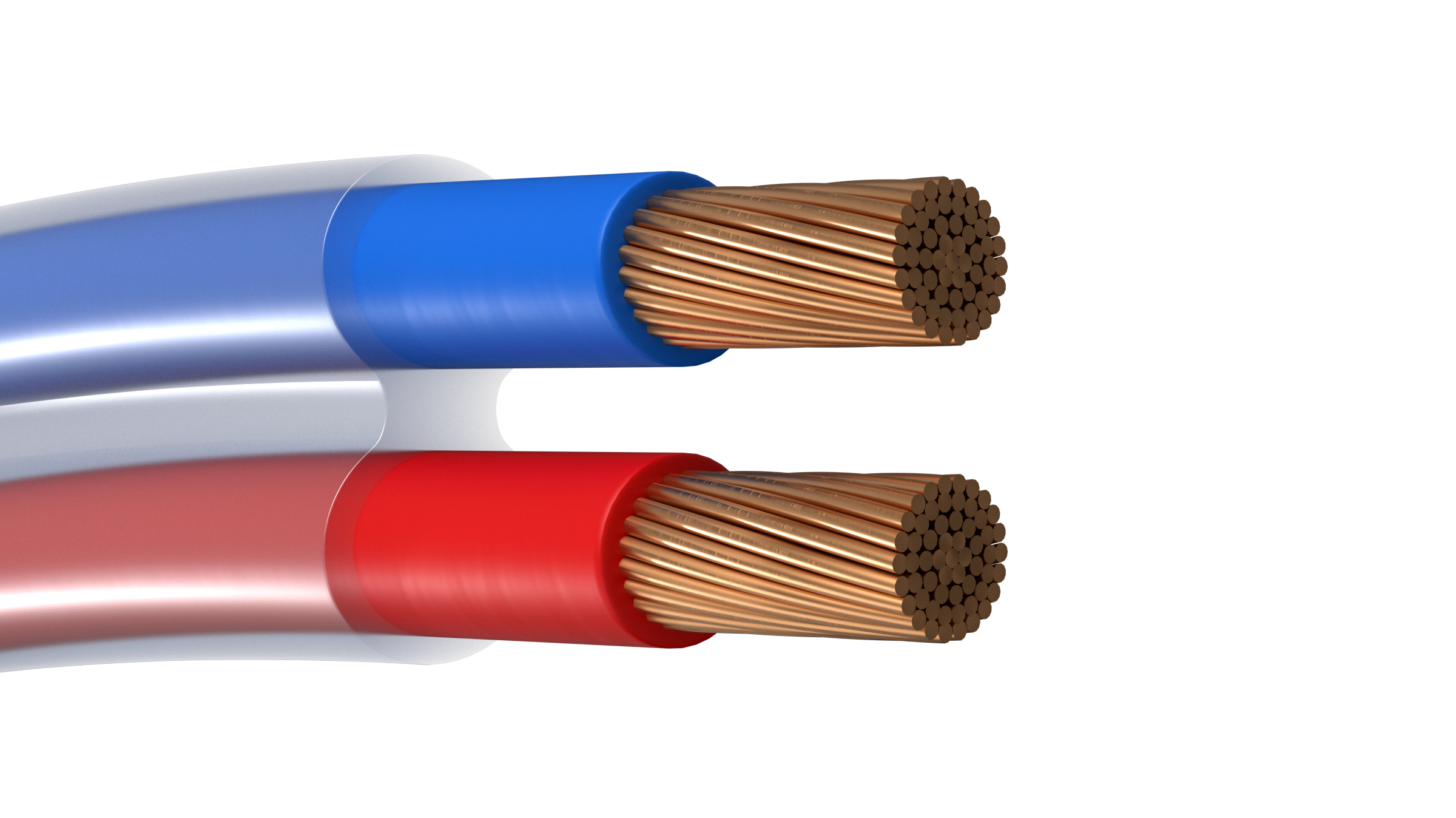

BITFLEX TWIN
Battery cable
- 2 (6)
- 6 (1)
- 10 (1)
- 16 (1)
- 25 (1)
- 35 (1)
- 50 (1)
- No (6)
| E-number | Dimension n x mm² | Outer dimensions H x B mm | Weight kg/100m |
| N3503020 | 2x6 | 6,5 x 14,0 | 19.7 |
| 0506530 | 2x10 | 7,2 x 14,8 | 28 |
| 0506540 | 2x16 | 8,8 x 17,2 | 41.5 |
| 0506550 | 2x25 | 11,2 x 23,5 | 63 |
| 0506560 | 2x35 | 12,5 x 26,3 | 79.9 |
| 0506570 | 2x50 | 14,3 x 30,2 | 113 |
Standard:
VDE 0250 cl. 6
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 6 = extra fine stranded wires
Conductor material:
Copper
Core insulation:
TPE
Core identification:
Red and Blue
Outer sheath:
PVC
Sheat colour:
Transparent
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-25°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
-25°C
Max operating temperature moved:
+70°C
Flame retardant:
IEC 60332-1
