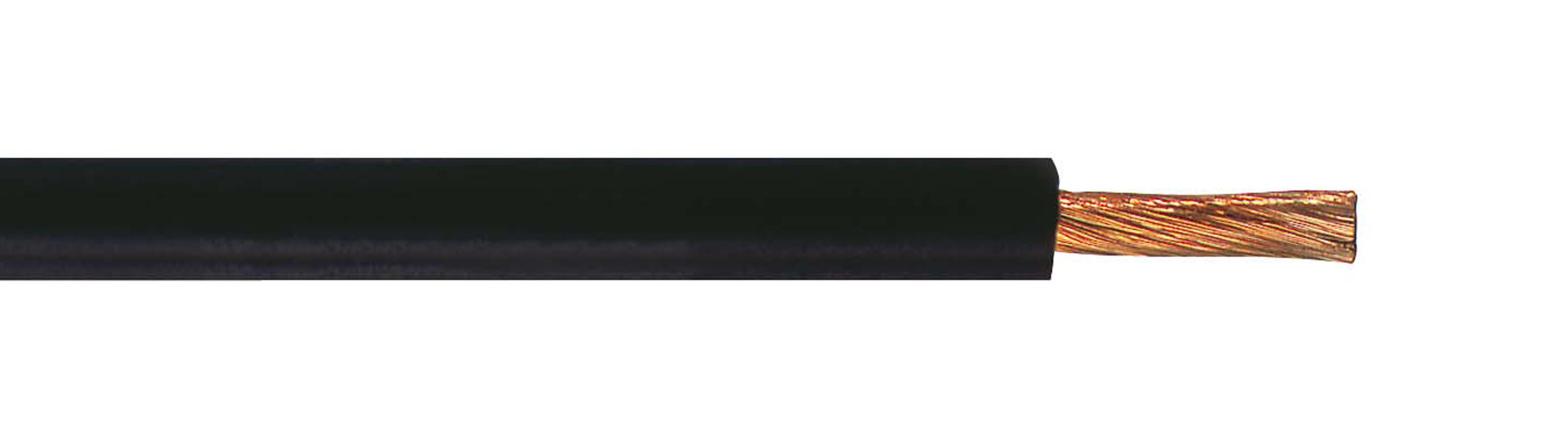

H01N2-D
Neoprene rubber sheathed welding cable
- 1 (8)
- No (8)
- 16 (1)
- 25 (1)
- 35 (1)
- 50 (1)
- 70 (1)
- 95 (1)
- 120 (1)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N8819510 | 1x10 | 8.4 | 13.5 |
| N8819520 | 1x16 | 9.2 | 20.5 |
| N8819530 | 1x25 | 10.5 | 30.2 |
| N8819540 | 1x35 | 11.8 | 42 |
| N8819550 | 1x50 | 13.9 | 58.6 |
| N8819560 | 1x70 | 15.7 | 79.8 |
| N8819570 | 1x95 | 17.1 | 101.5 |
| N8819580 | 1x120 | 21.6 | 131 |
Standard:
VDE 0295, IEC 60228
Approvals:
HAR
Rated Voltage Uo/U:
100V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Outer sheath:
Neoprene
Sheat colour:
Black
Bending radius fixed:
12 x cable diameter
Bending radius moved:
12 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-25°C
Max operating temperature moved:
+80°C
Testing voltage:
1000V
Flame retardant:
IEC 60332-1
