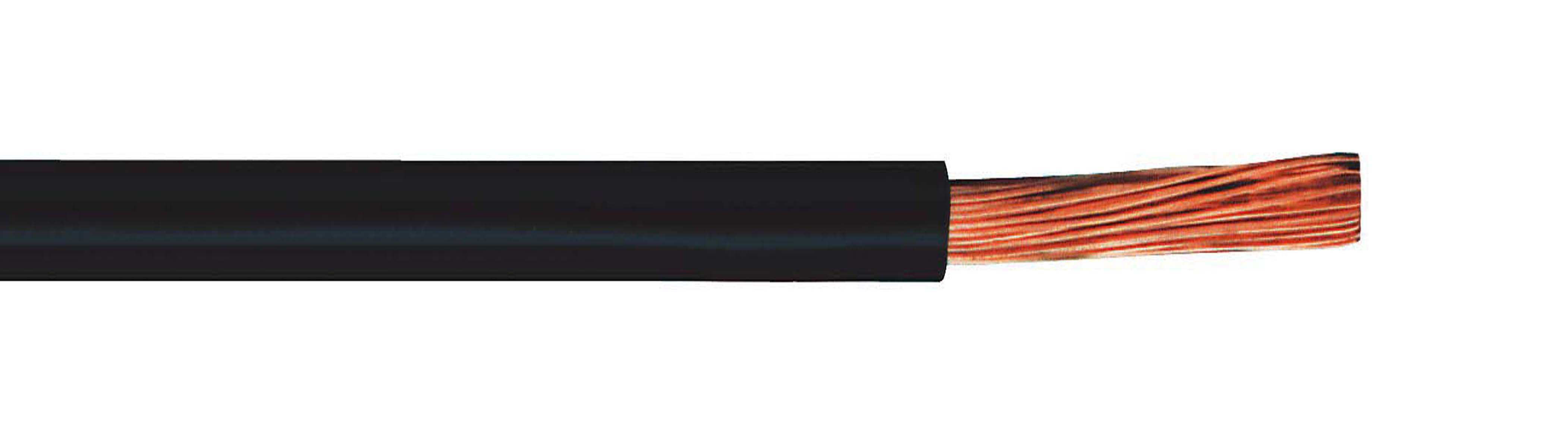

H05V-K (RK)
PVC-insulated conductor
- 0.5 (15)
- 0.75 (15)
- 1 (15)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m | Colour |
| N3260002 | 1X0,5 | 0.9 | 2.2 | Orange |
| N3260012 | 1X0,5 | 0.9 | 2.2 | White |
| N3260022 | 1X0,5 | 0.9 | 2.2 | Black |
| N3260032 | 1X0,5 | 0.9 | 2.2 | Red |
| N3260042 | 1X0,5 | 0.9 | 2.2 | Grey |
| N3260052 | 1X0,5 | 0.9 | 2.2 | Green |
| N3260062 | 1X0,5 | 0.9 | 2.2 | Yellow |
| N3260072 | 1X0,5 | 0.9 | 2.2 | Lightblue RAL 5015 |
| N3260082 | 1X0,5 | 0.9 | 2.2 | Brown |
| N3260092 | 1X0,5 | 0.9 | 2.2 | Yellow/Green |
| N3260122 | 1X0,5 | 0.9 | 2.2 | Blue/White |
| N3260132 | 1X0,5 | 0.9 | 2.2 | Darkblue/White |
| N3260142 | 1X0,5 | 0.9 | 2.2 | Pink |
| N3260152 | 1X0,5 | 0.9 | 2.2 | Violet |
| N3260162 | 1X0,5 | 0.9 | 2.2 | Darkblue RAL 5010 |
| N3260202 | 1X0,75 | 1.1 | 2.3 | Orange |
| N3260212 | 1X0,75 | 1.1 | 2.3 | White |
| N3260222 | 1X0,75 | 1.1 | 2.3 | Black |
| N3260232 | 1X0,75 | 1.1 | 2.3 | Red |
| N3260242 | 1X0,75 | 1.1 | 2.3 | Grey |
| N3260252 | 1X0,75 | 1.1 | 2.3 | Green |
| N3260262 | 1X0,75 | 1.1 | 2.3 | Yellow |
| N3260272 | 1X0,75 | 1.1 | 2.3 | Lightblue RAL 5015 |
| N3260282 | 1X0,75 | 1.1 | 2.3 | Brown |
| N3260292 | 1X0,75 | 1.1 | 2.3 | Yellow/Green |
| N3260322 | 1X0,75 | 1.1 | 2.3 | Blue/White |
| N3260332 | 1X0,75 | 1.1 | 2.3 | Darkblue/White |
| N3260342 | 1X0,75 | 1.1 | 2.3 | Pink |
| N3260352 | 1X0,75 | 1.1 | 2.3 | Violet |
| N3260362 | 1X0,75 | 1.1 | 2.3 | Darkblue RAL 5010 |
| N3260402 | 1X1 | 1.4 | 2.5 | Orange |
| N3260412 | 1X1 | 1.4 | 2.5 | White |
| N3260422 | 1X1 | 1.4 | 2.5 | Black |
| N3260432 | 1X1 | 1.4 | 2.5 | Red |
| N3260442 | 1X1 | 1.4 | 2.5 | Grey |
| N3260452 | 1X1 | 1.4 | 2.5 | Green |
| N3260462 | 1X1 | 1.4 | 2.5 | Yellow |
| N3260472 | 1X1 | 1.4 | 2.5 | Lightblue RAL 5015 |
| N3260482 | 1X1 | 1.4 | 2.5 | Brown |
| N3260492 | 1X1 | 1.4 | 2.5 | Yellow/Green |
| N3260522 | 1X1 | 1.4 | 2.5 | Blue/White |
| N3260532 | 1X1 | 1.4 | 2.5 | Darkblue/White |
| N3260542 | 1X1 | 1.4 | 2.5 | Pink |
| N3260552 | 1X1 | 1.4 | 2.5 | Violet |
| N3260562 | 1X1 | 1.4 | 2.5 | Darkblue RAL 5010 |
Standard:
VDE 0295, IEC 60228, SS 424 02 31 (HD 21.3.S3)
Approvals:
HAR
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Bending radius fixed:
4 x cable diameter
Min operating temperature fixed:
-30°C
Max operating temperature fixed:
+70°C
Lowest installation temperature:
-5°C
Testing voltage:
2000V
Flame retardant:
IEC 60332-1
