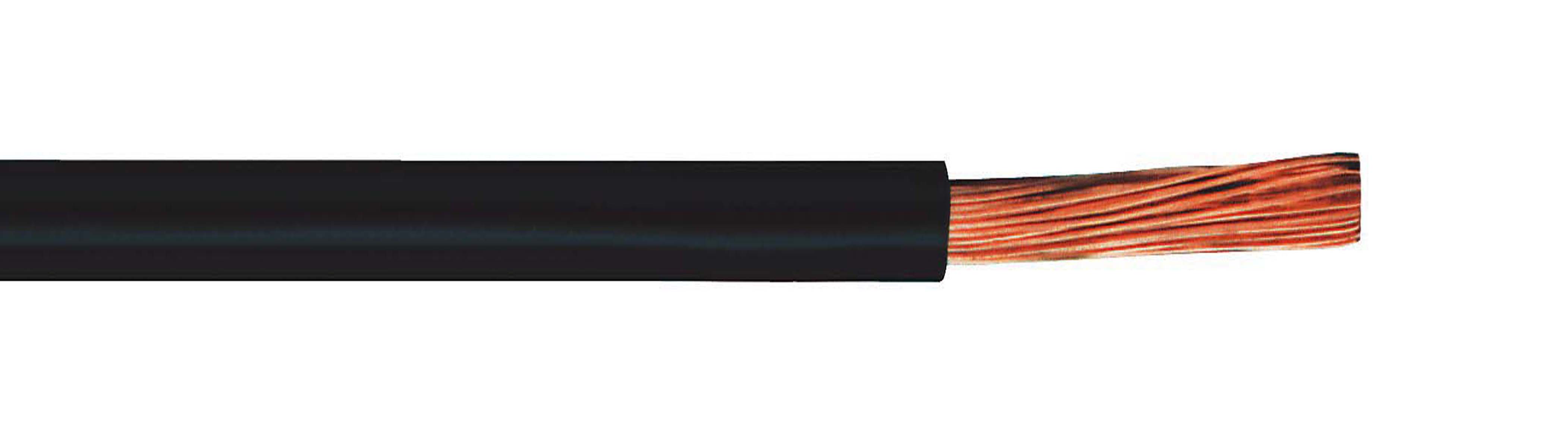

H05Z-K (RQ)
Halogen free insulated conductor
- 0.5 (9)
- 0.75 (10)
- 1 (12)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m | Colour |
| N3250112 | 1x0,5 | 2.6 | 0.9 | White |
| N3250122 | 1x0,5 | 2.6 | 0.9 | Black |
| N3250132 | 1x0,5 | 2.6 | 0.9 | Red |
| N3250142 | 1x0,5 | 2.6 | 0.9 | Grey |
| N3250152 | 1x0,5 | 2.6 | 0.9 | Green |
| N3250182 | 1x0,5 | 2.6 | 0.9 | Brown |
| N3250252 | 1x0,5 | 2.6 | 0.9 | Violet |
| N3250262 | 1x0,5 | 2.6 | 0.9 | Darkblue RAL 5010 |
| N3250272 | 1x0,5 | 2.6 | 0.9 | Lightblue RAL 5015 |
| N3250302 | 1x0,75 | 2.8 | 1.1 | Orange |
| N3250312 | 1x0,75 | 2.8 | 1.1 | White |
| N3250322 | 1x0,75 | 2.8 | 1.1 | Black |
| N3250332 | 1x0,75 | 2.8 | 1.1 | Red |
| N3250342 | 1x0,75 | 2.8 | 1.1 | Grey |
| N3250382 | 1x0,75 | 2.8 | 1.1 | Brown |
| N3250392 | 1x0,75 | 2.8 | 1.1 | Yellow/Green |
| N3250452 | 1x0,75 | 2.8 | 1.1 | Violet |
| N3250462 | 1x0,75 | 2.8 | 1.1 | Darkblue RAL 5010 |
| N3250472 | 1x0,75 | 2.8 | 1.1 | Lightblue RAL 5015 |
| N3250502 | 1x1 | 2.9 | 1.4 | Orange |
| N3250512 | 1x1 | 2.9 | 1.4 | White |
| N3250522 | 1x1 | 2.9 | 1.4 | Black |
| N3250532 | 1x1 | 2.9 | 1.4 | Red |
| N3250542 | 1x1 | 2.9 | 1.4 | Grey |
| N3250582 | 1x1 | 2.9 | 1.4 | Brown |
| N3250592 | 1x1 | 2.9 | 1.4 | Yellow/Green |
| N3250652 | 1x1 | 2.9 | 1.4 | Violet |
| N3250662 | 1x1 | 2.9 | 1.4 | Darkblue RAL 5010 |
| N3250672 | 1x1 | 2.9 | 1.4 | Lightblue RAL 5015 |
| N3250552 | 1x1 | 2.9 | 1.4 | Green |
| N3250562 | 1x1 | 2.9 | 1.4 | Yellow |
Standard:
VDE 0295, IEC 60228
Approvals:
HAR
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
Halogen free Polymer
Bending radius fixed:
8 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+90°C
Lowest installation temperature:
-5°C
Testing voltage:
2500V
Halogen-free acc. to:
IEC 60754
Smoke emission:
IEC 61034
Flame retardant:
IEC 60332-1
