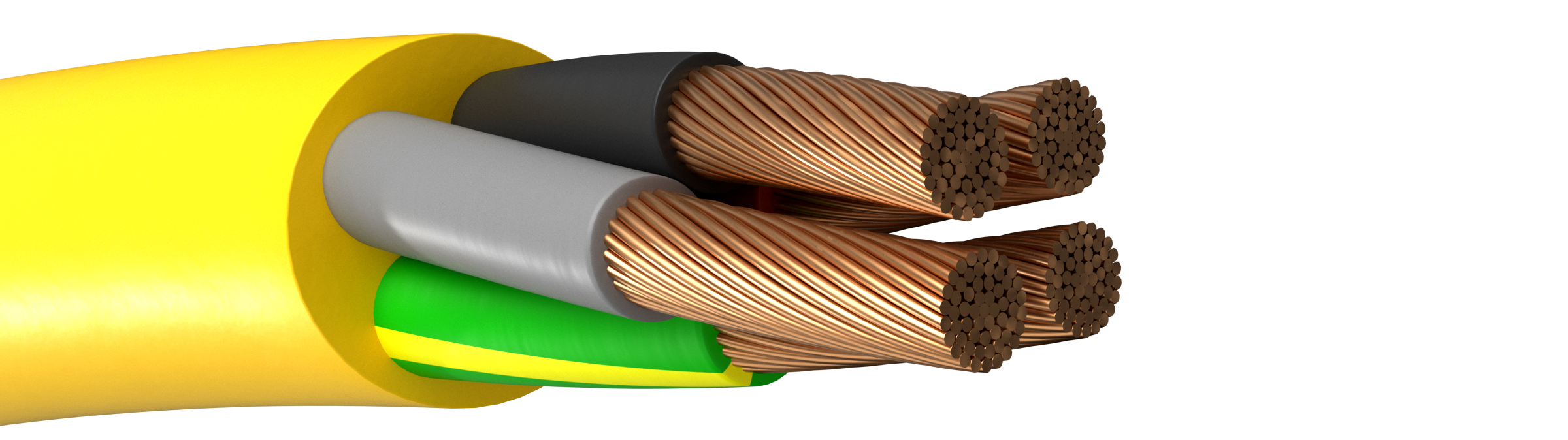

Novoflex HEAVY NSSHÖU/90
Neoprene rubber sheathed mining cable
Standard:
VDE 0295, 0250
Rated Voltage Uo/U:
0,6/1kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Tinned Copper
Core insulation:
EPR rubber
Core identification:
Numerals, ≤5 cores: Colour coded
Protective conductor:
Yellow/Green
Inner sheath material:
EPR-rubber
Outer sheath:
Polychloroprene type 5GM5
Sheat colour:
Yellow
Bending radius fixed:
10 x cable diameter
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-25°C
Max operating temperature moved:
+80°C
Testing voltage:
3000V
Max temperature at conductor:
+90°C
Flame retardant:
IEC 60332-1
