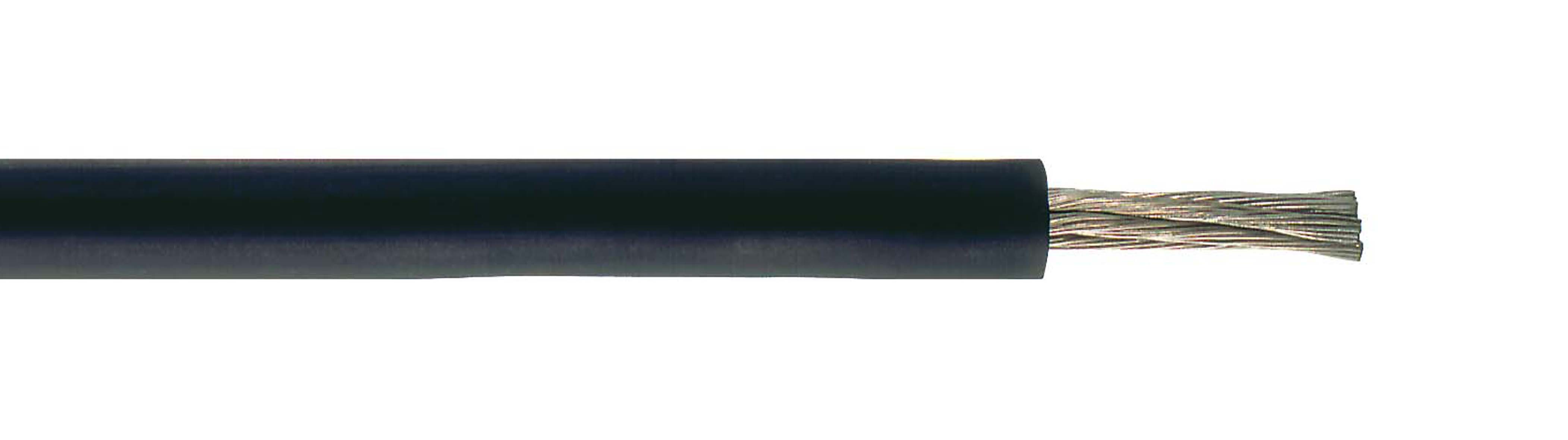

NSGAFÖU
Rubber-sheathed cable
- 1 (18)
- 1.5 (1)
- 2.5 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 16 (1)
- 25 (1)
- 35 (1)
- 50 (1)
- 70 (1)
- 95 (1)
- 120 (1)
- 150 (1)
- 185 (1)
- 240 (1)
- 300 (1)
- 400 (1)
- 500 (1)
- No (18)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m |
| N7611010 | 1x1,5 | 5.7 | 5.9 |
| N7612010 | 1x2,5 | 6.2 | 7.3 |
| N7613010 | 1x4 | 6.8 | 9.3 |
| N7614010 | 1x6 | 7.4 | 12.5 |
| N7615010 | 1x10 | 9.2 | 19 |
| N7616010 | 1x16 | 10 | 26.5 |
| N7617010 | 1x25 | 13.1 | 40 |
| N7618010 | 1x35 | 14.2 | 50.5 |
| N7619010 | 1x50 | 16.7 | 64 |
| N7619110 | 1x70 | 18.3 | 88.5 |
| N7619210 | 1x95 | 20 | 117 |
| N7619310 | 1x120 | 23.3 | 148 |
| N7619410 | 1x150 | 25.4 | 170 |
| N7619510 | 1x185 | 27 | 219 |
| N7619610 | 1x240 | 31.5 | 280.5 |
| N7619710 | 1x300 | 34 | 311 |
| N7619810 | 1x400 | 40.5 | 420 |
| N7619820 | 1x500 | 42 | 550 |
Standard:
VDE 0295, IEC 60228
Approvals:
Acc. to VDE 0250 Part 602
Rated Voltage Uo/U:
1,8/3kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Tinned Copper
Core insulation:
EPR rubber
Outer sheath:
Special rubber
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-25°C
Max operating temperature moved:
+80°C
Testing voltage:
6000V
Insulation resistance:
≥20 MOhm x km
Max temperature at conductor:
+90°C
Flame retardant:
IEC 60332-1
