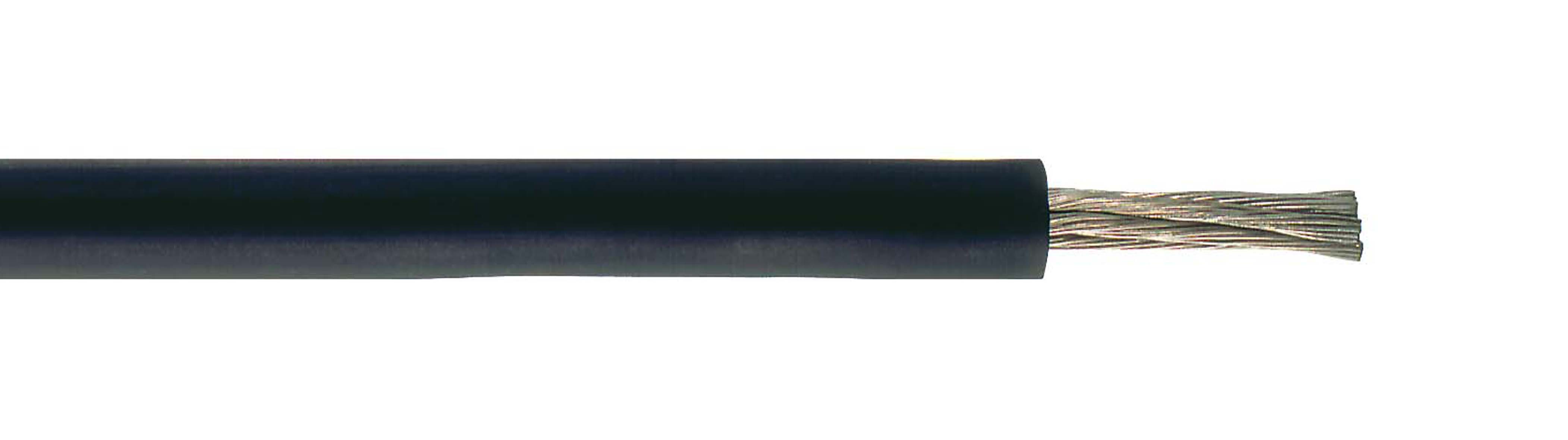

NSHXAFÖ
Halogen free rubber-sheathed cable
- 1 (16)
- 1.5 (1)
- 2.5 (1)
- 4 (1)
- 6 (1)
- 10 (1)
- 16 (1)
- 25 (1)
- 35 (1)
- 50 (1)
- 70 (1)
- 95 (1)
- 120 (1)
- 150 (1)
- 185 (1)
- 240 (1)
- 300 (1)
- No (1)
| E-number | Dimension n x mm² | Outer dimensions (min - max) mm | Weight kg/100m |
| N7631010 | 1x1,5 | 5,7 - 7,0 | 4.7 |
| N7632010 | 1x2,5 | 6,2 - 7,5 | 6 |
| N7633010 | 1x4,0 | 6,7 - 9,0 | 7.7 |
| N7634010 | 1x6,0 | 7,2 - 9,5 | 10.5 |
| N7635010 | 1x10,0 | 8,6 - 11,0 | 14.9 |
| N7636010 | 1x16,0 | 10,7 - 13,0 | 22.2 |
| N7637010 | 1x25,0 | 12,9 - 15,0 | 33.3 |
| N7638010 | 1x35,0 | 13,6 - 16,5 | 42.5 |
| N7639010 | 1x50,0 | 15,6 - 18,0 | 57.6 |
| N7639110 | 1x70,0 | 17,4 - 20,5 | 77 |
| N7639210 | 1x95,0 | 20,3 - 24,0 | 100.2 |
| N7639310 | 1x120,0 | 21,5 - 26,0 | 125.5 |
| N7639410 | 1x150,0 | 23,4 - 28,0 | 155.3 |
| N7639510 | 1x185,0 | 24,5 - 31,0 | 185.3 |
| N7639610 | 1x240,0 | 28,9 - 34,5 | 249 |
| N7639710 | 1x300,0 | 31,6 - 38,0 | 298.5 |
Standard:
DIN VDE 0250-606, VDE 0295, IEC 60228
Rated Voltage Uo/U:
1,8/3kV
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Tinned Copper
Core insulation:
Halogen free rubber
Outer sheath:
Halogen free rubber
Sheat colour:
Black
Bending radius fixed:
6 x cable diameter
Bending radius moved:
10 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+80°C
Min operating temperature moved:
-25°C
Max operating temperature moved:
+80°C
Testing voltage:
6000V
Conductor resistance:
See technical appendix
Max temperature at conductor:
+90°C
Smoke emission:
IEC 61034
Flame retardant:
IEC 60332-1
