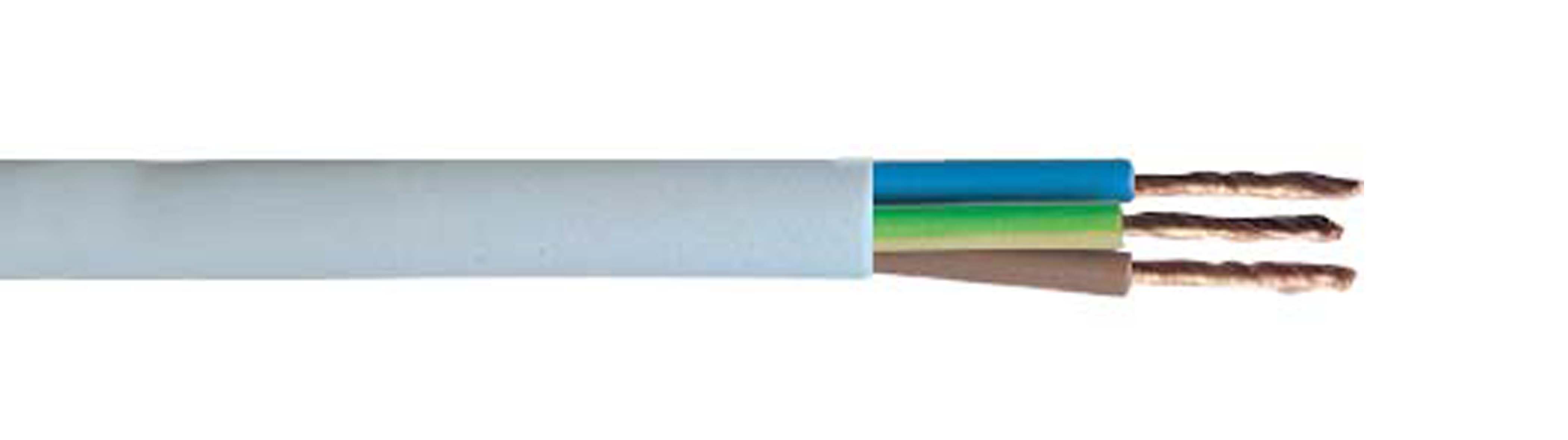

RKK (H05VV-F)
PVC-sheathed installation cable
- 2 (2)
- 3 (4)
- 5 (3)
- 4 (1)
- 0.75 (4)
- 1 (1)
- 1.5 (4)
- 2.5 (1)
- No (2)
- Yes (8)
| E-number | Dimension n x mm² | Outer diameter mm | Weight kg/100m | Colour | Length | Packaging type |
| 0508362 | 2x0,75 | 6.3 | 5.2 | White | 100 meters | Ring |
| 0508452 | 3G0,75 | 6.8 | 7 | White | 100 meters | Ring |
| N9270530 | 3G0,75 | 6.8 | 7 | Grey | 100 meters | Ring |
| 0508602 | 5G0,75 | 8.3 | 9.6 | White | 100 meters | Ring |
| 0508492 | 3G1,0 | 7 | 8 | White | 100 meters | Ring |
| 0508412 | 2x1,5 | 7.6 | 9 | White | 100 meters | Ring |
| 0508512 | 3G1,5 | 8.1 | 11.5 | White | 100 meters | Ring |
| 0508582 | 4G1,5 | 9.2 | 14.5 | White | 100 meters | Ring |
| 0508622 | 5G1,5 | 10.5 | 17.5 | White | 100 meters | Ring |
| 0508661 | 5G2,5 | 12.5 | 26 | White | 50 meters | Ring |
Standard:
HD 21.5
Approvals:
Cenelec HAR
Rated Voltage Uo/U:
300/500V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Colour coded
Protective conductor:
Yellow/Green
Outer sheath:
PVC
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
+5°C
Max operating temperature moved:
+70°C
Testing voltage:
2000V
Flame retardant:
IEC 60332-1
