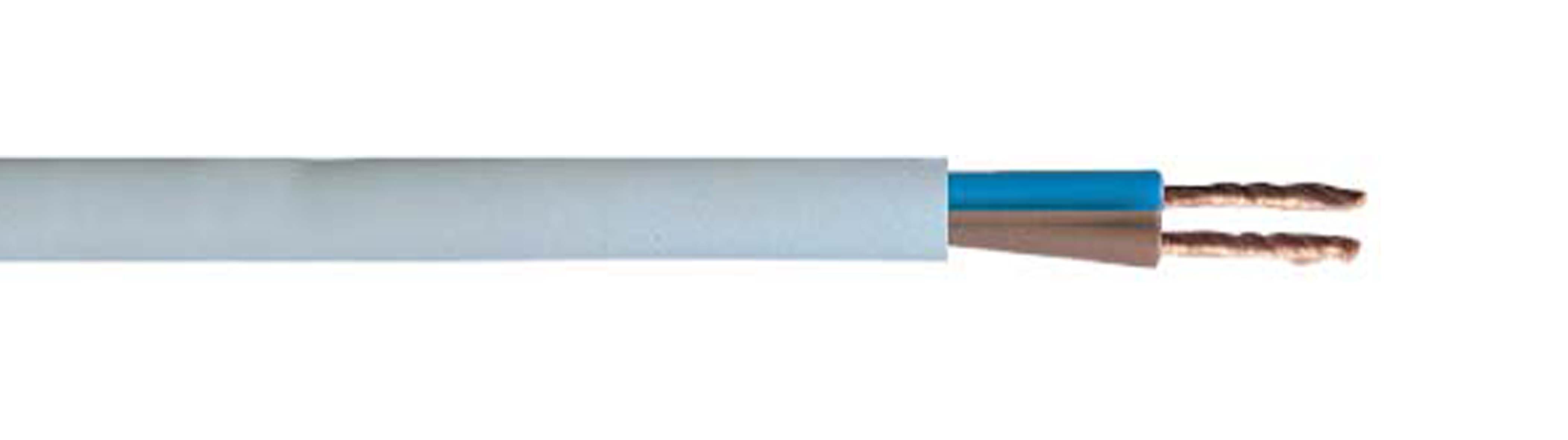

SKX (H03VVH2-F)
PVC-sheathed installation cable
- 2 (2)
- 0.75 (2)
- No (2)
| E-number | Dimension n x mm² | Outer dimensions H x B mm | Weight kg/100m | Colour | Length | Packaging type |
| 0508202 | 2x0,75 | 3,5 x 6,0 | 2.6 | White | 100 meters | Ring |
| N9270413 | 2x0,75 | 3,5 x 6,0 | 2.6 | Black | 100 meters | Bobin |
Standard:
HD 21.5
Approvals:
Cenelec HAR
Rated Voltage Uo/U:
300/300V
Conductor class:
Class 5 = fine stranded wires
Conductor material:
Copper
Core insulation:
PVC
Core identification:
Blue and Brown
Outer sheath:
PVC
Bending radius fixed:
6 x cable diameter
Bending radius moved:
6 x cable diameter
Min operating temperature fixed:
-40°C
Max operating temperature fixed:
+70°C
Min operating temperature moved:
+5°C
Max operating temperature moved:
+70°C
Testing voltage:
2000V
Flame retardant:
IEC 60332-1
